NEUTRIK NLT8FXX
Description

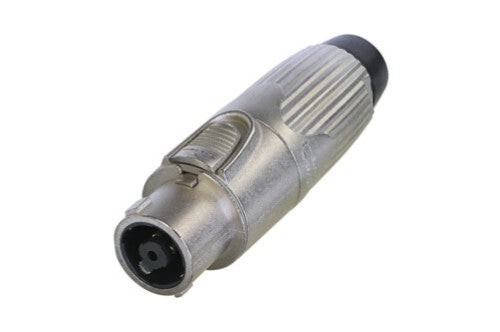

Neutrik NLT8FXX is an 8-pole female speakON cable connector from the STXX Series, made for heavy duty amplifier to loudspeaker cabling. It has a nickel plated zinc diecast shell, chuck type strain relief and a Quick Lock latch. Large solder contacts accept heavy gauge conductors, which suits multi-way speaker leads. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 8-pole female speakON cable connector
- STXX Series, metal housing
- Rated 30 A rms continuous per contact
- Cable O.D. 8 to 20 mm
- Wire size 1.5 to 6 mm²
Specifications
| Accessory type | Connector |
|---|---|
| Connectors | 8-pole female speakON cable connector, solder |
Manufacturer description
The Neutrik NLT8FXX is the 8 pole female speakON cable connector from the STXX Series, made for heavy duty amplifier to loudspeaker cabling on professional tours. A rugged nickel plated zinc diecast shell, chuck type strain relief and Quick Lock latch give a secure, long lasting connection, while large solder contacts accept heavy gauge conductors for multi-way or bi-amped speaker systems. It accepts thick multicore cables, making it a dependable choice for building road ready speaker leads.
- 8 pole female cable connector, metal housing
- Rated current: 30 A rms continuous per contact
- Rated voltage: 250 V AC
- Cable O.D.: 8 to 20 mm
- Wire size: 1.5 to 6 mm² (10 AWG)
- Lifetime: more than 5,000 mating cycles
- IP 50 (mated)
