MARTIN AUDIO C8.1T
PA Speakers Passive
Description
The Martin Audio C8.1T is a passive 8" two-way ceiling speaker made for higher ceilings and reverberant rooms. Its 8" cone and 1" horn-loaded dome tweeter sit side by side for controlled 90 degree dispersion and up to 110 dB. It handles 125 W at 16 ohm or 60 W through the included transformer. Ask VMT for a quote, with GST invoicing and delivery across India.
Key features
- 8" carbon fibre loaded cone with 1" horn-loaded dome tweeter
- 125 W at 16 ohm, 60 W through transformer
- 110 dB max SPL at 1 m
- 90 degree conical dispersion up to 7 kHz
- Polyswitch and thermal fuse protection, UL2043 and UL1480
Specifications
| Type | Passive |
|---|---|
| Kind | Ceiling |
| Woofer | 8" |
| HF driver | 1" horn-loaded dome tweeter |
| Power (RMS) | 125 W |
| Max SPL | 110 dB |
| Impedance | 16 ohm, or line use via 60 W transformer |
| Coverage | 90 degrees conical up to 7 kHz |
| Built-in DSP | No |
| Bluetooth | No |
| Battery powered | No |
| 100V line | Yes |
| Mounting | Flush ceiling mount |
Manufacturer description

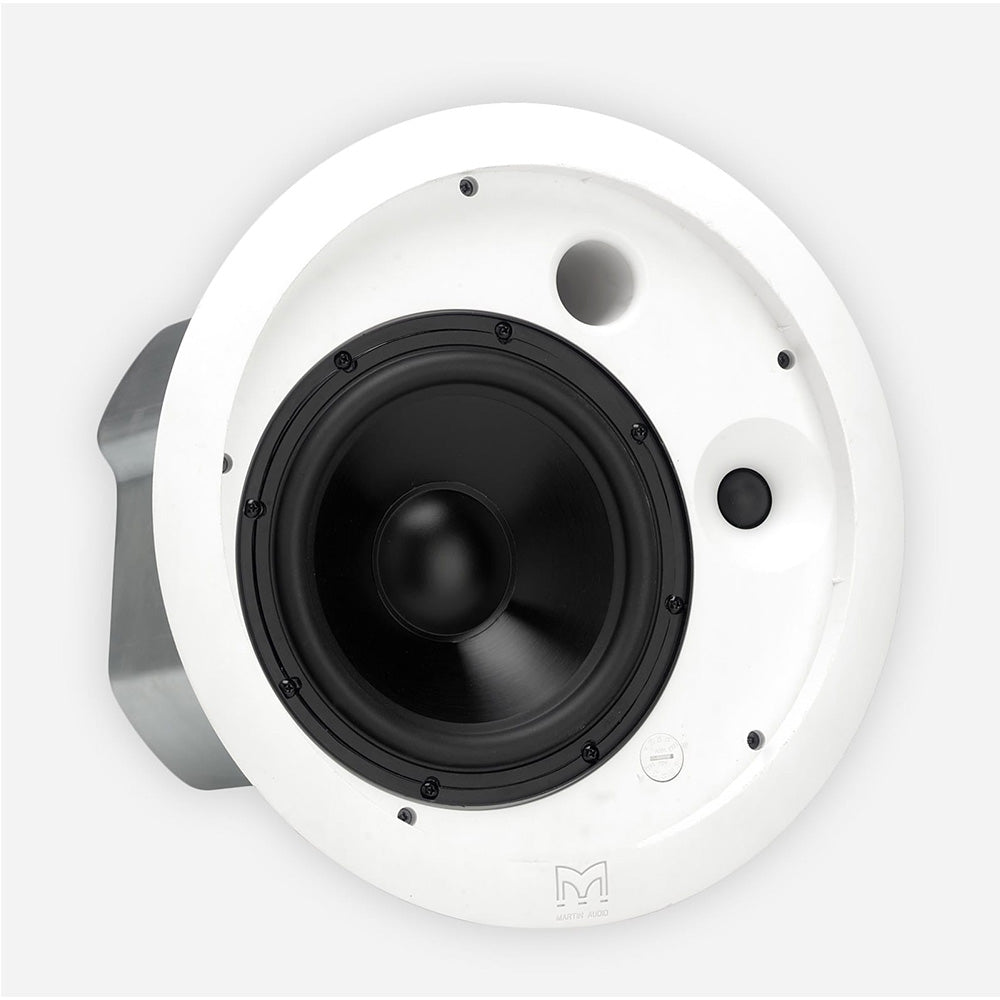

C8.1T
8" Passive Full-range Ceiling Speaker
The C8.1T has been specifically designed for higher ceilings where its high SPL capability and controlled 90° dispersion enable it to provide excellent intelligibility in more reverberant rooms. It features an 8" (200mm) unit with a carbon fibre loaded, polypropylene cone and a 1" (25mm) horn-loaded dome tweeter mounted side-by-side for optimum dispersion and smooth response off-axis.
Features
- Two-way high performance flush mounting ceiling speaker
- 8" (200mm) UL94V-0 carbon fibre loaded polypropylene cone bass
- Wide dispersion – 90° conical up to 7kHz
- High & low impedance operation – transformer included
- 110dB max SPL @ 1 metre (16 ohm)
- 125 watt power handling (60W through transformer)
- Polyswitch and thermal fuse protected
- Steel backcan
- UL2043 & UL1480
