Faital Pro 12FH520
Neodymium
Description

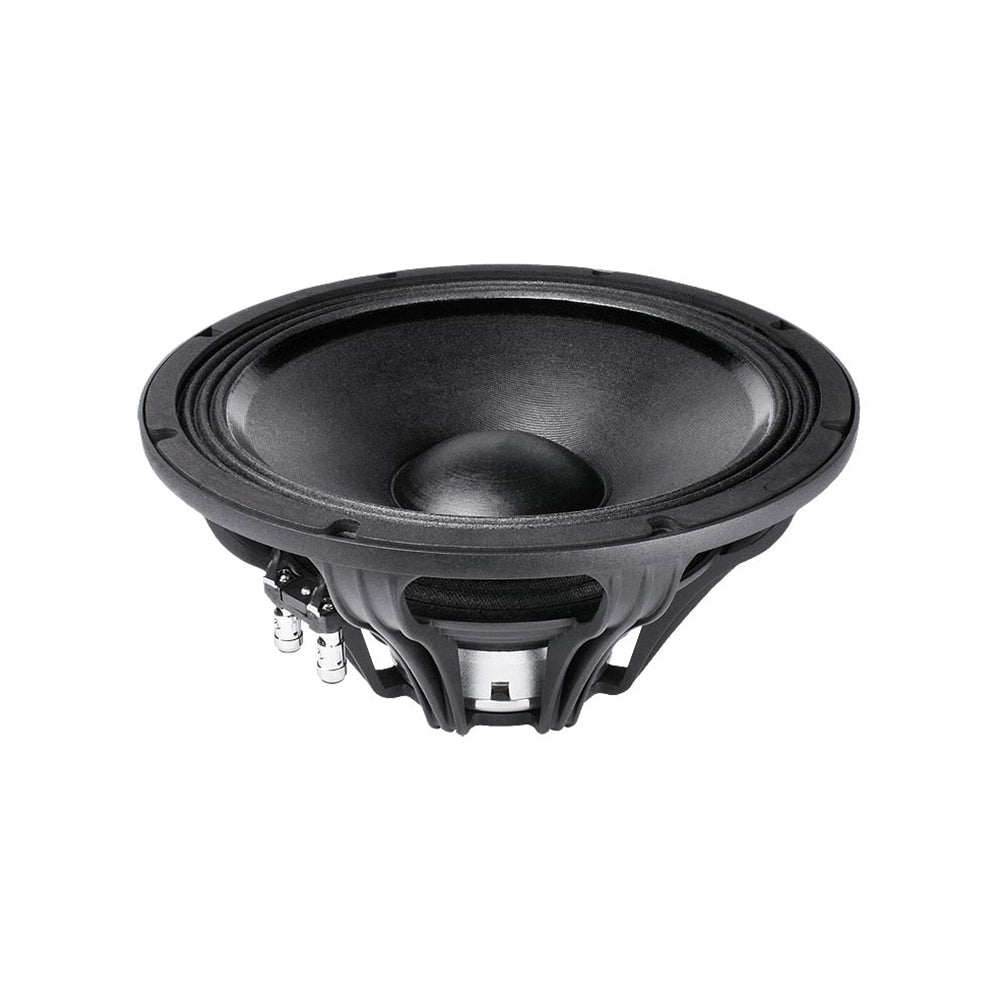

Faital Pro 12FH520 is a 12 inch cone driver with a 77 mm voice coil and a neodymium magnet. The listing gives 600 W AES power and 98 dB sensitivity on 8 ohm, covering 50 Hz to 4 kHz. The net weight is 4.2 kg. Useful for PA and monitor builds that need the listed bandwidth. Order it from VMT with GST billing and delivery across India.
Key features
- 12" cone driver with Neodymium magnet
- Voice coil 77 mm (3")
- 600 W AES power on 8 ohm
- Sensitivity 98 dB (1 W / 1 m)
- Frequency range 50 Hz - 4 kHz
- Net weight 4.2 kg
Specifications
| Woofer | 12" |
|---|
| Power (RMS) | 600 W |
|---|
| Frequency range | 50 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 98 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 4.2 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
300 mm (12 in) |
| Overall Diameter |
316 mm (12.44 in) |
| Bolt Circle Diameter |
298.5 mm (11.75 in) |
| Baffle Cutout Diameter |
284 mm (11.18 in) |
| Depth |
155.75 mm (6.13 in) |
| Flange and Gasket Thickness |
12.5 mm (0.49 in) |
| Net Weight |
4.2 kg (9.3 lb) |
Shipping Box
(Single Carton Box) |
350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in) |
| Shipping Weight |
5 kg (11.0 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.3 Ohm |
| AES Power Handling (1)
|
600 W |
| Maximum Power Handling (2)
|
1200 W |
| Sensitivity (1W/1m) |
98 dB |
| Frequency Range |
50÷4000 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
18.5 mm (0.71 in) |
| Magnetic Gap Depth |
12 mm (0.47 in) |
| Flux Density |
1.1 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
2.4 dm^3 (0.085 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
50 Hz |
| Re |
5.1 Ohm |
| Qes |
0.30 |
| Qms |
11.1 |
| Qts |
0.29 |
| Vas |
73.7 dm^3 (2.60 ft^3) |
| Sd |
540 cm^2 (83.70 in^2) |
| Xmax (4)
|
7.25 mm |
| Xdamage (5)
|
19.5 mm |
| Mms |
56.0 g |
| Bl |
17.3 N/A |
| Le |
0.74 mH |
| Mmd |
41.8 g |
| Cms |
0.18 mm/N |
| Rms |
1.6 kg/s |
| Eta Zero |
2.98 % |
| EBP |
167 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03003973 |
| Recone Kit - 8 Ohm Version |
R3003973 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
