BRITISH ACOUSTICS Delta Mix 20.8
Description
British Acoustics Delta Mix 20.8 is a digital mixer with 20 mic/line input channels, ten 100 mm motorised faders and a 7 inch touch screen. It has 8 aux outputs, 2 flex FX channels, 16 channel USB multitrack recording and an optional 16 by 16 Dante card. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 20 input channels with 16 mic/line combo inputs
- 10 motorised 100 mm faders and 7 inch touch screen
- 8 aux outputs and 2 FX channels
- 16 in / 16 out USB multitrack
- Optional Dante card, 16 x 16
- Weighs 6.9 kg
Specifications
| Mixer type | Digital mixer |
|---|---|
| Network audio | Dante (optional card) |
| Mic inputs | 16 |
| Connectors | 16 XLR/TRS combo mic/line in, 4 TRS line in, 10 XLR out, AES/EBU out |
| Input channels | 20 |
| Aux sends | 8 |
| Faders | 10 |
| Motorised faders | Yes |
| Touchscreen | Yes |
| Built-in effects | Yes |
| USB audio | 16 x 16 USB multitrack |
| Weight | 6.9 kg |
Manufacturer description
TECHNICAL SPECIFICATIONS
INPUT CHANNELS
• Total 20 Mic/Line Input Channels
• 16 Mic/Line Input Channels
• 4 Stereo Line Input Channels
• 16 Channel USB Multi Track Playback
• Media Playback Channel with USB/BT Options
• Optional Dante Card (16x16 Channels)
OUTPUT CHANNELS
• 8 Aux Output Channels
• 2 Flex FX Channels
• Master L/R Output
• 16 Channel USB Output for Multitrack Recording
• Optional Dante Card (16x16 Channels)
SIGNAL PROCESSING
• Analogue Gain
• Phase Inversion
• Delay (upto 40 ms)
• Impedance Reduction (Hi-Z Mode)
• Gate
• HPF / LPF (upto 24 dB/Octave)
• 4 Band (Inputs) & 7 Band (Outputs) Parametric EQ
• Compressor
• Channel Mute.
• Channel Direct Outputs

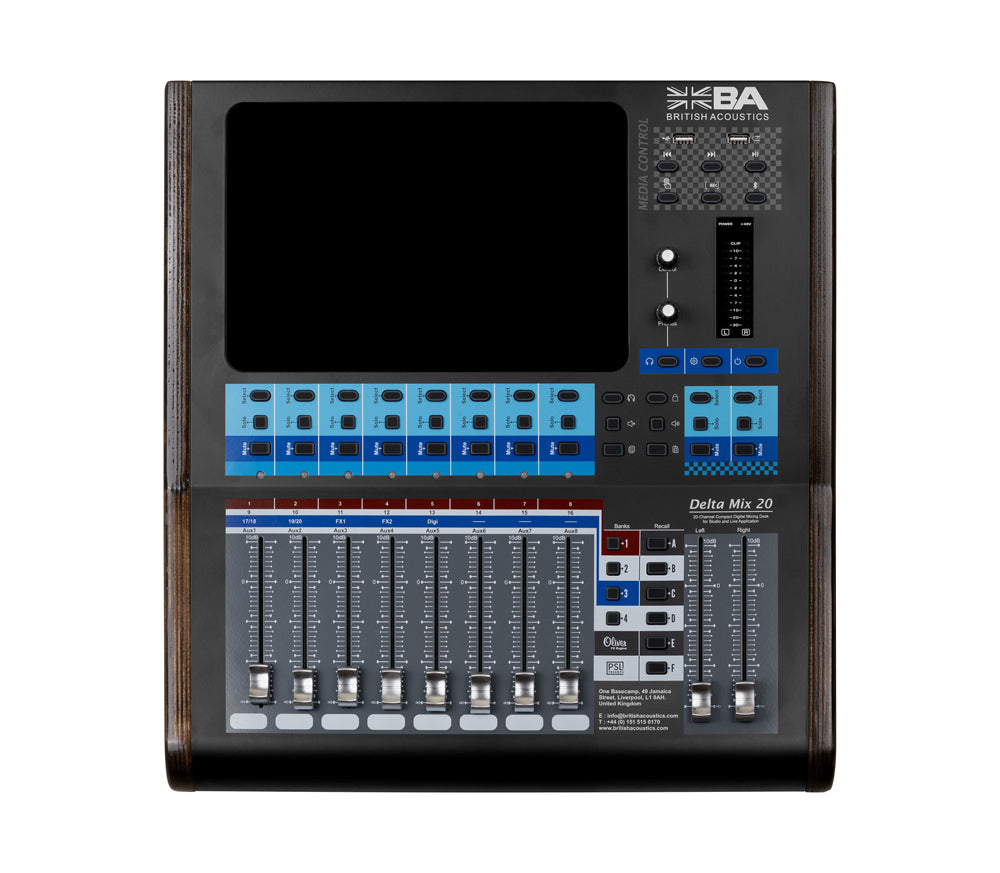

FRAME SURFACE
• 10 x 100mm, Motorized Carbon Faders
• 1 x 7" Touch Screen
• 1 x USB 2.0 Slot
• 2 x 12 Segment Master / Solo LED Meters
• 55 x Selection Buttons
• 2 x Rotaries
• 1 x USB Lamp Slot

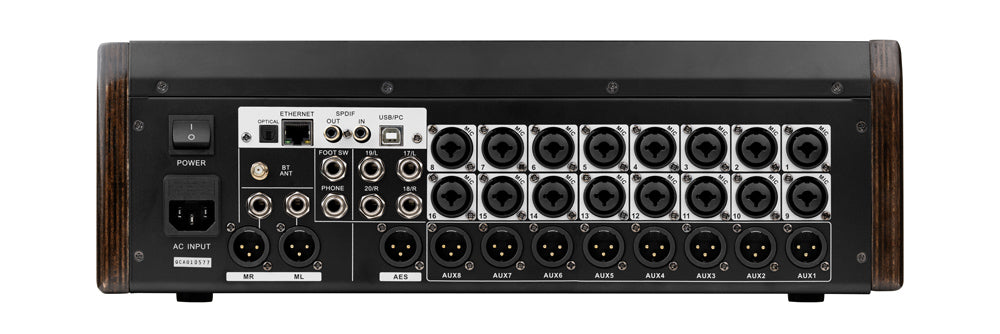

REAR
• 1 x PSU
• 16 x TRS-XLR Combo Mic/Line Inputs
• 4 x TRS Line Inputs (2 Stereo Channels)
• 10 x XLR Line Outputs
• 1 x XLR AES/EBU Output (2 x Channels)
• 1 x USB Type B Audio IO for 16x16 Recording & Playback
• 1 x Ethernet Port
• 1 x SPDIF In/Out
• 1 x Optical Port
• 1 x 1/4" TRS Headphone Socket
• 1 x 1/4" TRS for Foot Switch
FX
• 2 FX Channels
• 16 Dual Parameter FX Selection
• FX Library includes 5 Reverb Options, 2 Echo Types, 2 Vocal Delays, Tap Delay, Reflections, Doubler, Flanger, Symphonics, & Distortions Generator
PROCESSING SPECIFICATIONS
• Frequency Response - 3Hz - 32 kHz
• THD <0.05%, =14 dBu Full Spectrum• SNR : -110 dBu (CH Input), -92 dBu (Stereo Output) - 90 dBu (Aux/FX Send), -102 dB (Residual Output)
• -74dB Crosstalk (40Hz-15kHz)
• 48 kHz Sample Rate
• 24-bit : AD-DA Converter Bit Depth
• Processing Delay - 1.2 ms @ 48k, all channels driven
• Upto 32-bit floating point input processing
• +22dBu Max Input / Output Level
POWER SPECIFICATIONS
• AC Power Input
• 90-264 VAC, 50-60 Hz Auto Sensing
OPERATING SPECIFICATIONS
• Meant to be used as a table mount device directly or within a flight case.
• Maximum permitted ambient temperature (Ta max) 35° C (95° F)• Minimum permitted ambient temperature (Ta min): 2° C (35.6° F)
IP SPECIFICATIONS
• IP 30 - Standard protection against large solid objects
SIZE
• Product: 430 x 450 x 150mm (H x W x D)
• Product: 16.9 x 17.7 x 5.9 inch (H x W x D)
• Packed individually
WEIGHT
• Net Kgs - 6.9
• Net Lbs - 15.2
SHIPPING INFORMATION
• Carton Size
530 x 540 x 290 mm (H x W x D)
20.8 x 21.2 x 11.4 inch (H x W x D)
• Gross Weight : 9.75 Kgs / 21.4 Lbs
• Packed individually
