YAMAHA DSP-RX
Digital Mixer
Description

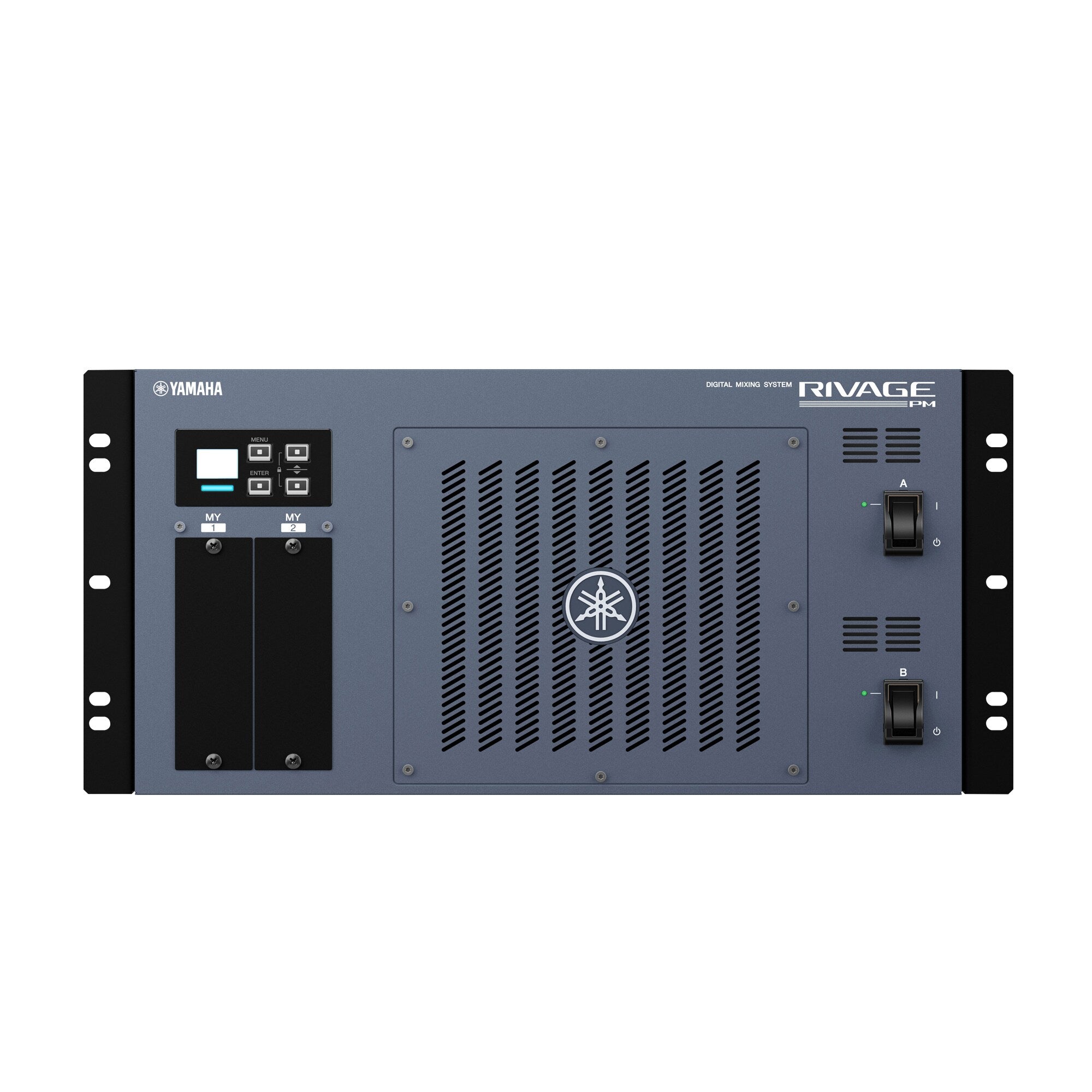

Yamaha DSP-RX is the DSP engine for the RIVAGE PM system, handling signal processing and system control. It processes up to 120 inputs, 48 mix and 24 matrix channels, has four HY card slots and two Mini-YGDAI slots, and is a 5U rack unit. Buy it at VMT with a GST invoice and delivery across India.
Key features
- Up to 120 input, 48 mix and 24 matrix channels
- 4 HY card slots, 2 Mini-YGDAI slots
- Dual redundant power supply
- 5U rack size, weighs 19 kg
- Works with CS-R10, CS-R10-S, CS-R5 and CS-R3
Specifications
| Mixer type | Mixing system component |
|---|---|
| Connectors | 4 HY card slots, 2 Mini-YGDAI slots |
| Rack size | 5U |
| Input channels | 120 |
| Weight | 19.0 kg |
Manufacturer description
The DSP-RX is a powerful DSP engine that serves as the core for signal processing and system control required for the RIVAGE PM system. DSP-RX can be upgraded to DSP-RX-EX later by adding the DEK-DSP-RX kit.
- Compatible Control Surfaces: CS-R10, CS-R10-S, CS-R5, CS-R3
- Superior capability of processing digital audio signals of up to 120 input, 48 MIX, 24 MATRIX, and two STEREO channels.
- Four HY card slots that are capable of transmitting/receiving up to 256 ins/outs of digital audio signals/control signals.
- Two Mini-YGDAI slots to support various audio formats.
- Dual redundant power supply built-in
- Power consumption: 190W
- Dimensions (WxHxD): 480 x 220 x 491mm (18.9" x 8.7" x 19.3") (5U rack size)
- Net Weight: 19 kg (41.9 lbs)
