BRITISH ACOUSTICS Oak 15 TS
Description
British Acoustics Oak 15 TS is a powered subwoofer with two satellite amplifier channels, so one box can run a full small PA. It packs a three channel 2500 W Class-H amplifier, 24-bit DSP, a two channel mixer and Bluetooth input, with 130 dB peak output. Get it from VMT with GST invoicing and delivery anywhere in India.
Key features
- 2500 W three channel Class-H amplifier, 2 x 250 W satellite outputs
- Two channel mixer with Bluetooth input
- 24-bit DSP with cardioid presets
- Max output 130 dB peak
- M10 flying inserts, pole socket, optional wheels
- Larch pine enclosure, IP43, 49.7 kg net
Specifications
| Type | Active |
|---|---|
| Kind | Subwoofer |
| Max SPL | 130 dB |

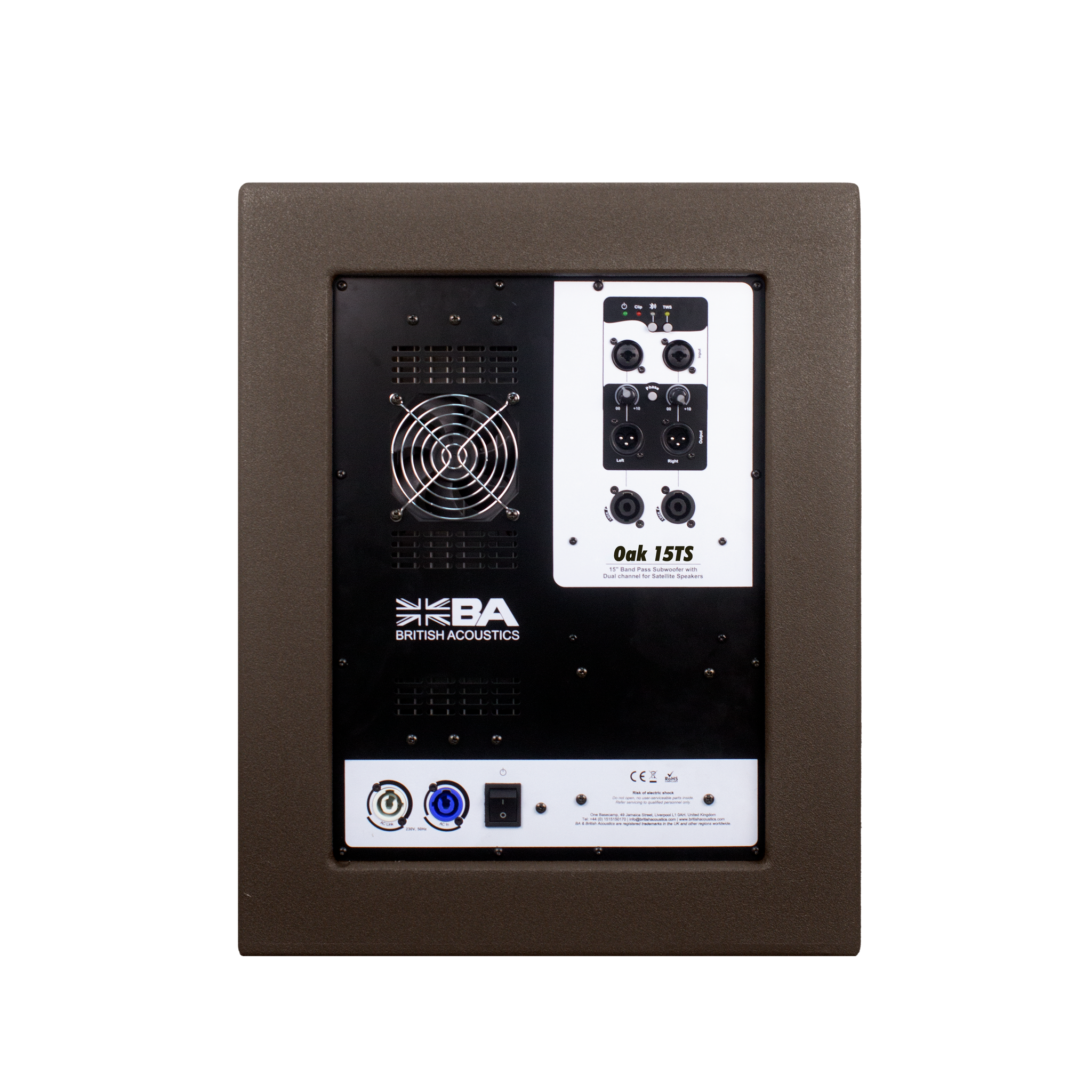

| Connectors | 2 x TRS mic in, XLR line in, XLR line out, 2 x 16A powerCON in/thru |
| Built-in DSP | Yes |
| Built-in mixer | Yes |
| Bluetooth | Yes |
| Battery powered | No |
| 100V line | No |
| Weight | 49.7 kg |
| Mounting | M10 flying inserts, threaded pole socket |
Manufacturer description
15" Subwoofer with 2 Satelite Channels
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 42 Hz - 200 kHz
• Freq. Range (-10 dB) : 36 Hz - 200 kHz
• Omni Directional
• Cardioid presets available
• Crossover : 80 - 120 Hz Active
• Max Output : 124dB, 130dB Peak
AMPLIFIER & DSP
SPECIFICATIONS
• 2500W - Three Channel Class-H Amplifier
• CH 1 : 1 x 1500W for the subwoofer
• CH 2/3 : 500W Each to connect satellite speakers
• Satellite Output Power : 2 x 250W @ 8 Ohms
• M1 Power Factor Crossover Module
• Enhanced Amplifier efficiency
• 3-Stage System protection process
• 24-Bit Built-In DSP for Superior voicing
• On-Board 2 Channel Mixer with Bluetooth
• 2 x TRS Jack mic input, 1 x XLR line input,
1 x XLR line output & 1 x Bluetooth input
• 2 x 16A PowerCon Connectors, Input & Thru
LF TRANSDUCER

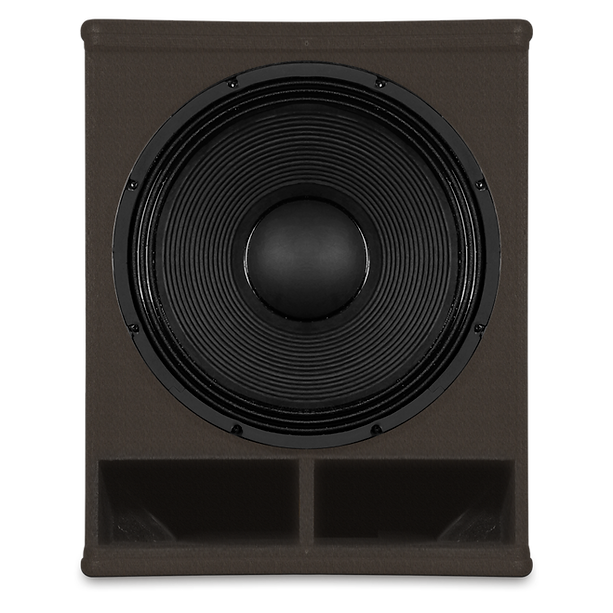

• 18X400 - 18" Low Frequency Driver
• 750W AES, 3000W Peak
• 4" Voice Coil - Ferrite Magnet
• Long Excursion Magnetic Circuit
HOUSING
• Larch Pine Wood Enclosure
• Granular Scratch Free Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• Stackable Rubber Feet
• M10 Flying Inserts
• Threaded Pole Socket
• Optional Wheels for Easy Portability
OPERATING PARAMETERS
• Operating positions: Can be used horizontally or vertically and can be used as a stack of subs
• Maximum permitted ambient temperature (Ta max) 40° C (104° F)
• Minimum permitted ambient temperature (Ta min): 4° C (39.2° F)
IP SPECIFICATIONS
• Standard Version : IP 43 - Standard protection against dust & splashes.
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 683 x 563 x 721 mm (H x W x D)
• Product : 26 x 22 x 28 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 49.7 Kgs
• Net : 110.1 Lbs
SHIPPING INFORMATION
• Carton Size
29.84 x 25.11 x 31.33 inch (H x W x D)
758 x 638 x 796 mm (H x W x D)
• Gross Weight - 52.18 Kgs / 115.03 Lbs
• Packed : Individually
