BRITISH ACOUSTICS OctaLine 18 FS
Description

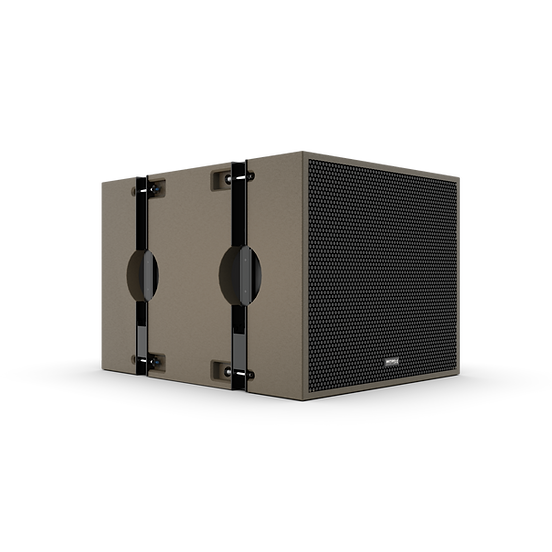

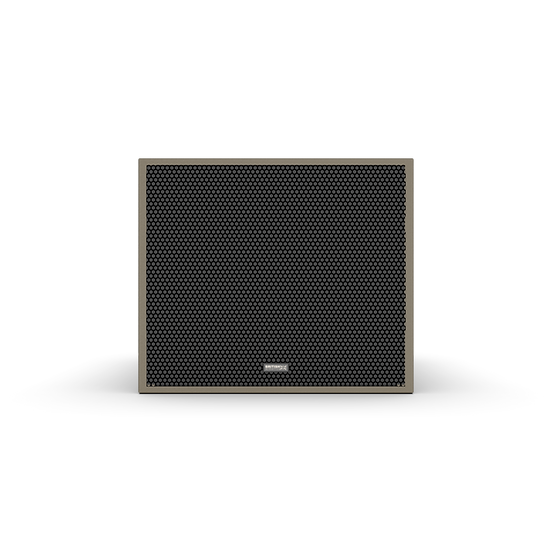

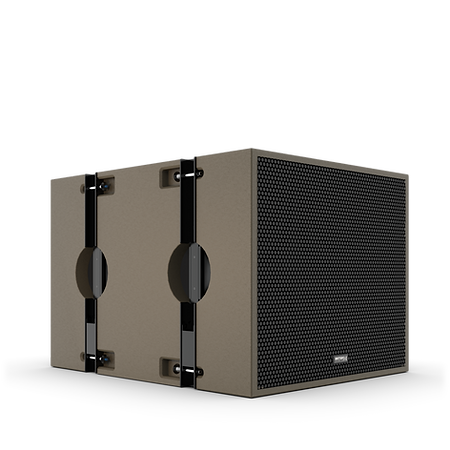

British Acoustics OctaLine 18 FS is a self powered 18" flying subwoofer that hangs with OctaLine arrays or stacks on the floor. A 3000 W two channel Class-H amplifier and 24-bit DSP take it down to 30 Hz with 134 dB peak, and a two channel mixer with Bluetooth is on board. Order from VMT with GST billing and pan-India delivery.
Key features
- 18" 18CT100 driver, 800 W AES
- 3000 W two channel Class-H amplifier, 24-bit DSP
- Frequency range 30 Hz to 150 Hz (-10 dB), 134 dB peak
- Two channel mixer with Bluetooth input
- 2-point Steady Rig system with quick-lock pins
- Marine birch ply enclosure, IP43, 47 kg net
Specifications
| Type | Active |
|---|---|
| Kind | Subwoofer |
| Woofer | 18" |
| Max SPL | 134 dB |
| Frequency range | 30 Hz - 150 Hz |
| Connectors | 2 x TRS mic in, XLR line in, XLR line out, 2 x 16A powerCON in/thru |
| Built-in DSP | Yes |
| Built-in mixer | Yes |
| Bluetooth | Yes |
| Battery powered | No |
| 100V line | No |
| Weight | 47.0 kg |
| Mounting | 2-point Steady Rig with quick-lock pins |
Manufacturer description
OctaLine 18 FS
18" Self-Powered, Flying Subwoofer
TECHNICAL SPECIFICATIONS
ACOUSTICAL
SPECIFICATIONS
• Freq. Response (-3 dB) : 35 Hz - 150 Hz
• Freq. Range (-10 dB) : 30 Hz - 150 Hz
• Omni Directional
• Cardioid presets available
• Crossover : 80 - 120 Hz Active
• Max Output : 128 dB, 134 dB Peak
SYSTEM SPECIFICATIONS
• Recommended System Control : Delta 98
FIR, Delta 48, PW 6 or built-in control for
smaller set-ups
LF TRANSDUCER
• 18CT100 - 18" Subwoofer Driver
• 800W AES, 3200W Peak
• 4” Voice Coil - Ferrite Magnet
• Double Silicon Spider
• Optimised Heat Dissipation
AMPLIFIER & DSP
SPECIFICATIONS
• 3000W - Two Channel Class-H Amplifier
• M1 Power Factor Crossover Module
• Enhanced Amplifier efficiency
• 3-Stage System protection process
• 24-Bit Built-In DSP for Superior voicing
• On-Board 2 Channel mixer Bluetooth
• 2 x TRS Jack mic input, 1 x XLR line input,
1 x XLR line output & 1 x Bluetooth input
• 2 x 16A PowerCon Connectors, Input & Thru
HOUSING
• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• Includes a set of vertical bottom feet for
secure and stable stacking

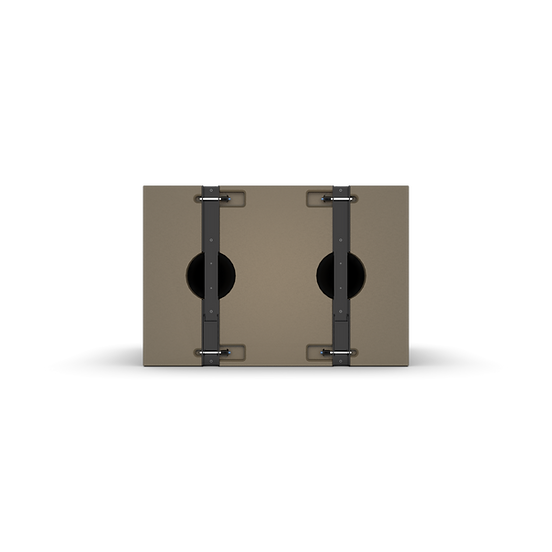

• 2-Point Steady Rig System
• Tethered Quick-lock Pins
OPERATING PARAMETERS
• Operating positions: Must be deployed
vertically and can be used as a stack of subs
• Maximum permitted ambient temperature
(Ta max) 40° C (104° F)
• Minimum permitted ambient temperature
(Ta min): 4° C (39.2° F)
IP SPECIFICATIONS
• IP 43 - Standard protection against dust & splashes
AESTHETIC
SPECIFICATIONS
• British Acoustics Signature Umber Brown
Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24
nos, minimum)
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 640 x 520 x 785 mm (H x W x D)
• Product : 25.2 x 20.5 x 30.9 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 47 Kgs
• Net : 104 Lbs
SHIPPING INFORMATION
• Carton Size
28.14 x 23.42 x 33.85 inch (H x W x D)
715 x 595 x 860 mm (H x W x D)
• Gross Weight : 49.35 Kgs / 108.79 Lbs
• Packed : Individually
