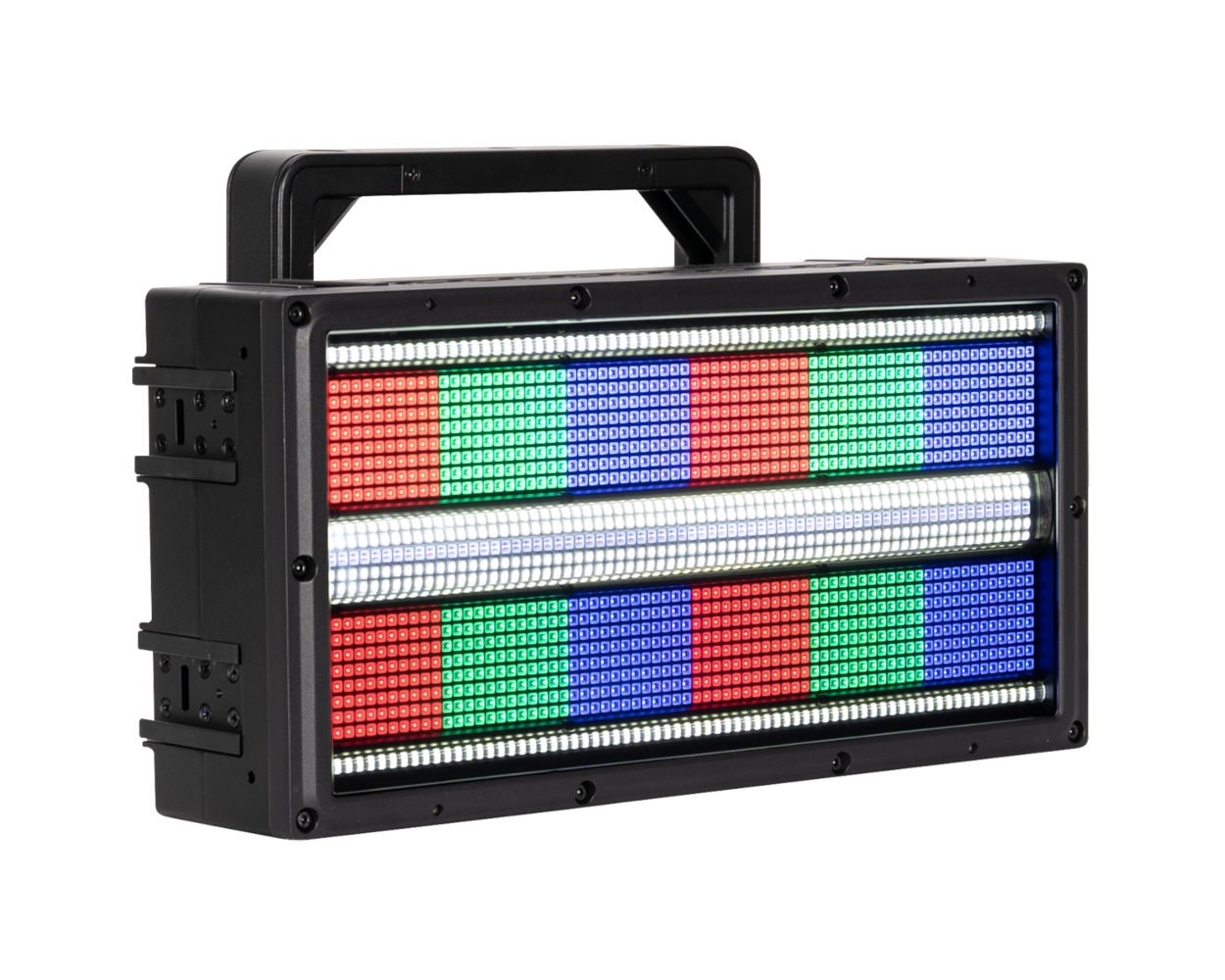

ELATION Pulse Panel
Description
Elation Pulse Panel is an IP65 rated LED strobe and colour panel with 1,248 RGB LEDs of 1.5 W and 432 cool white strobe LEDs of 5 W. The beam angle is 68 degrees. All LEDs on give 77,919 lumens. Panels link through a dedicated array system and take Art-Net, sACN and KlingNet. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 1,248 x 1.5 W RGB and 432 x 5 W CW strobe LEDs
- 77,919 lumens with all LEDs on
- Beam angle 68 degrees, field angle 112 degrees
- 24 RGB zones, 48 CW strobe zones, 12 StrobeLine zones
- Strobe rate 1 to 20 Hz
- IP65 rated
Specifications
| Light type | Strobe / blinder |
|---|---|
| Light source | 1,248 x 1.5 W RGB LED, 432 x 5 W CW strobe LED |
| Beam angle | 68 degrees |
| Colour system | RGB with CW strobe |
| IP rating | IP65 |
Manufacturer description
Features
(96) 1.5W RGB StrobeLine LED's in 12 Zones
Unique Array Interconnection System
Art-Net, sACN and KlingNet Support
IP65 Rated
Resources
DMX/ RDM Traits
Fixture Profiles | GTDF
Guides/ Manuals
Specification information
Drawings
CAD File
Related Categories
Specifications
(1248) 1.5W RGB LEDs
(432) 5W CW Strobe LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
Integrating Sphere:
All LED: 77,919 Lumens
CW LED:110,709 Lumens
RGB LED: 49,868 Lumens
CRI: >70
Beam Angle: 68°
Field Angle: 112°
EFFECTS
24 Zones of RGB Plate LEDs (6 x 4)
48 Zones of CW Strobe LEDs (12 x 4)
12 Zones of RGB StrobeLine LED's (12 x 1)
1- 20Hz Strobe Rate
Library of Customizable RGB and CW Strobe Effects
Variable Dimming Modes and Curves
COLOR
RGB Color Array
