Netron RDM 10
Description

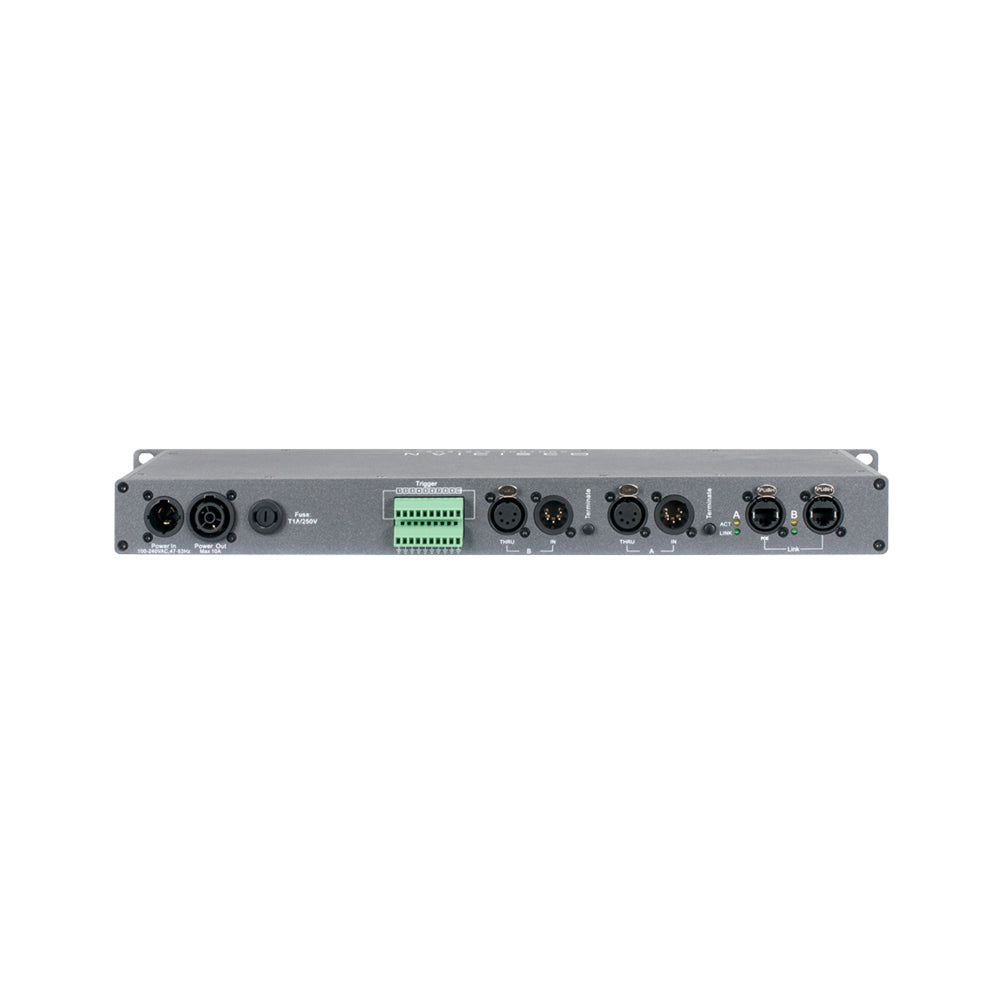

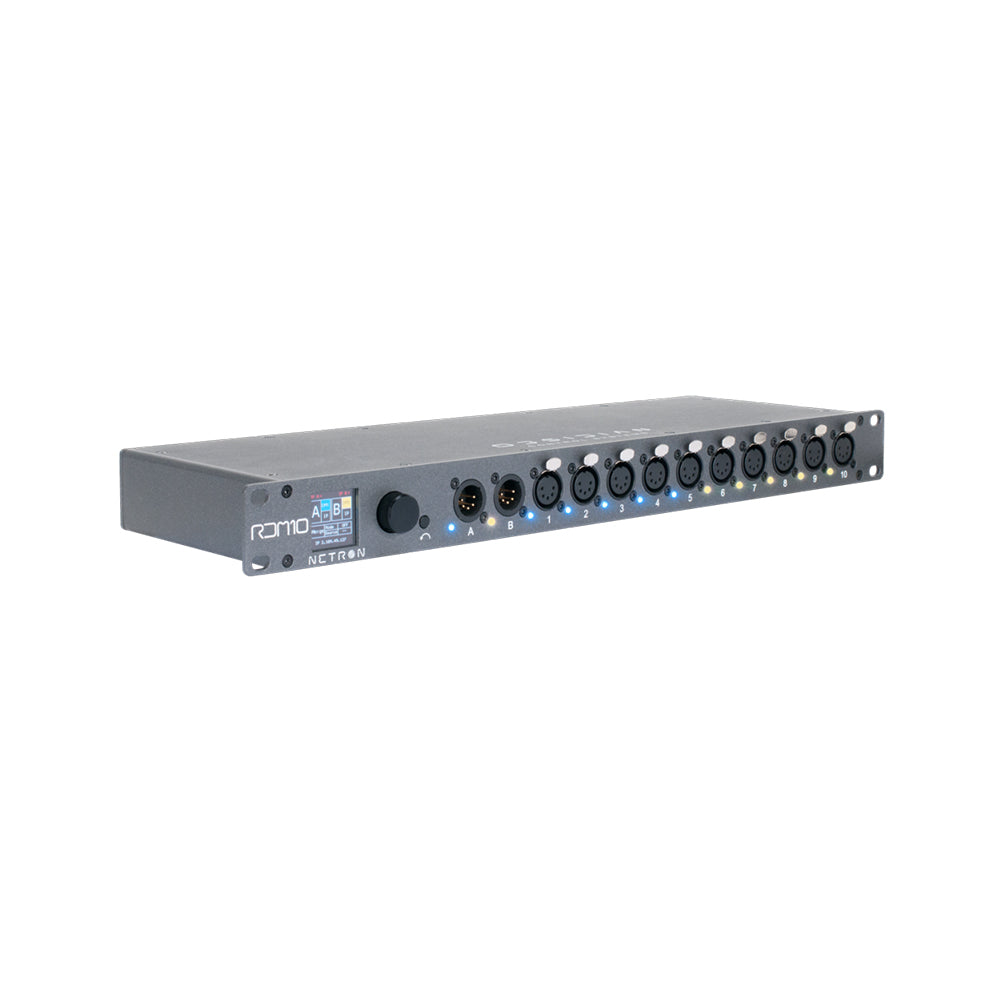

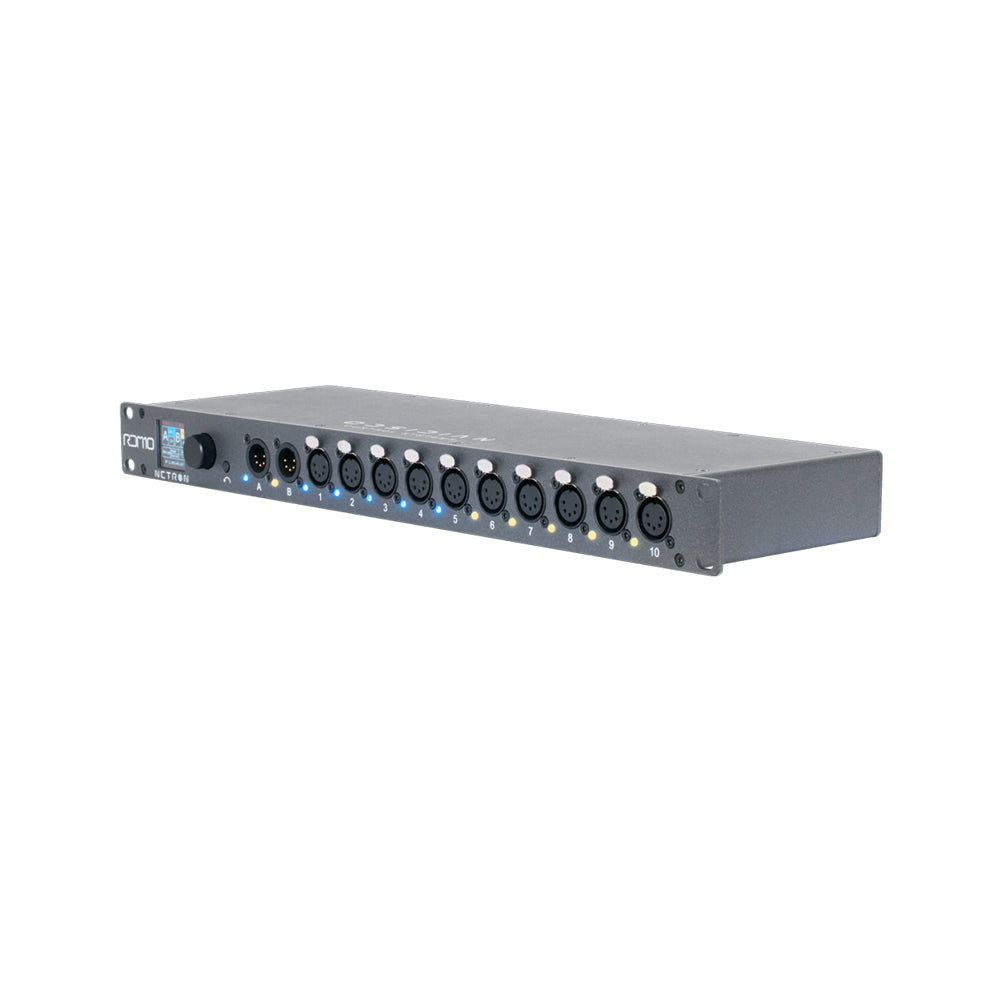

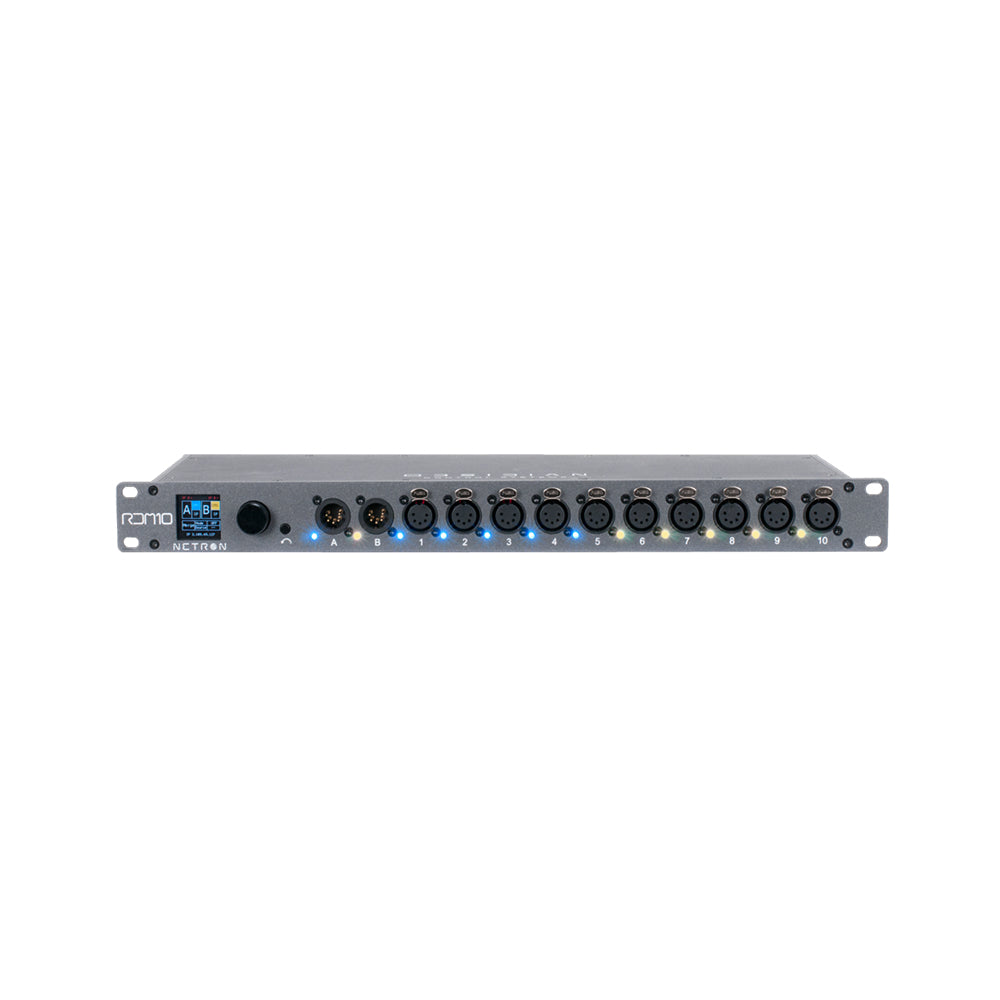

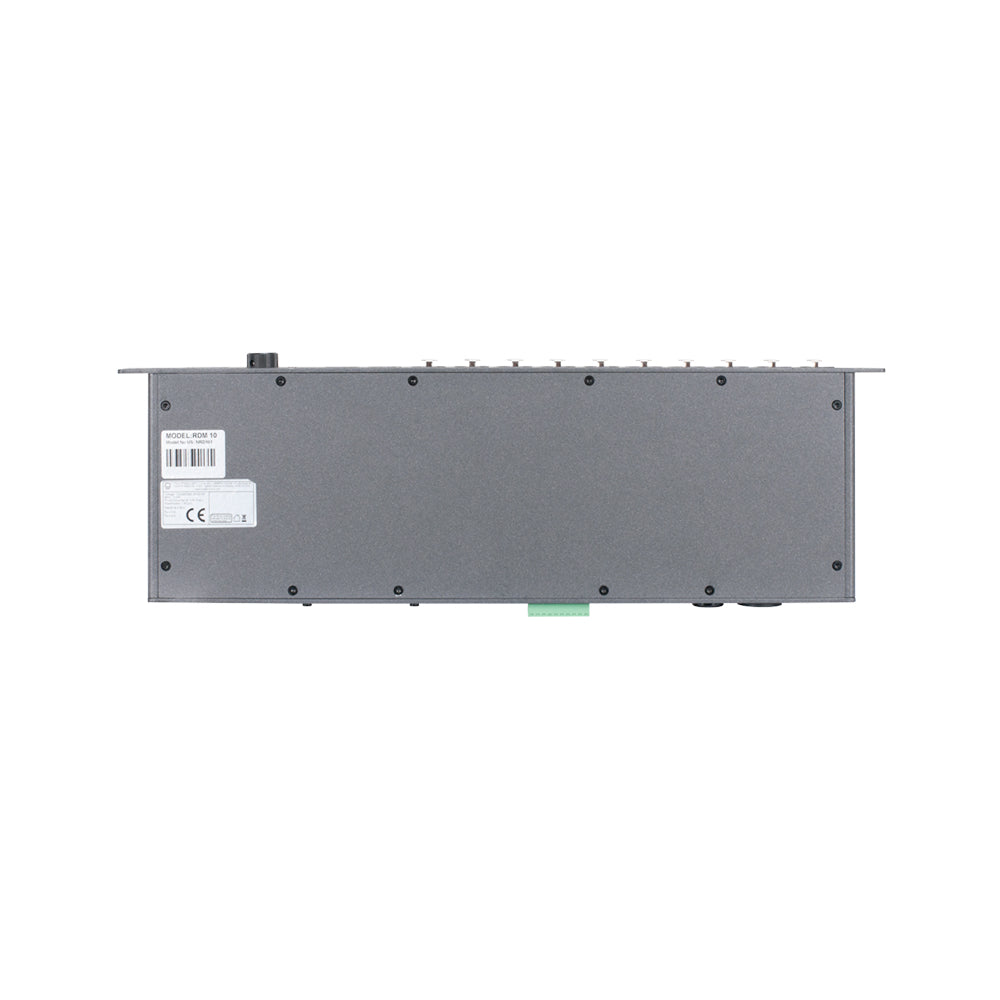

Netron RDM 10 from Obsidian Control combines a dual input DMX and RDM splitter, merger and Ethernet to DMX gateway in one 19 inch unit. It has ten opto-isolated 5 pin outputs, a two universe Art-Net and sACN node, 99 internal cues and ten contact closures. It can be powered over PoE. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 10 opto-isolated 5 pin DMX/RDM outputs, 2 inputs
- Integrated 2 universe Art-Net and sACN node
- 99 internal cues with fade and delay times
- 10 contact closures for cue or preset recall
- Mains 100 to 240 V or PoE 802.3af
- 1.82 kg, 482.5 x 146 x 44 mm
Specifications
| Light type | Lighting controller |
|---|---|
| Connectors | 10 x 5-pin DMX/RDM outputs, 2 x 5-pin DMX inputs |
| DMX channels | 2 universes Art-Net / sACN node |
| Weight | 1.82 kg |
Manufacturer description
The Obsidian Control NETRON RDM 10 is a hybrid DMX workhorse that combines a dual input DMX/RDM splitter, merger and Ethernet to DMX gateway in one 19 inch rack unit. Ten opto-isolated outputs can each be assigned freely, and the integrated two universe Art-Net and sACN node bridges your console network to the rig. With 99 internal cues, contact closures for recall and a colour OLED display, it can even run simple shows on its own.
- 10 x 5 pin opto-isolated DMX/RDM outputs, 2 x 5 pin DMX inputs
- Integrated 2 universe Art-Net / sACN node
- 99 internal cues with fade and delay times
- 10 contact closures for cue or preset recall
- Power: 100 to 240 V, 50/60 Hz or PoE (802.3af); 10 W
- Dimensions: 482.5 x 146 x 44 mm; weight 1.82 kg
