ELATION REBEL PROFILE
Description

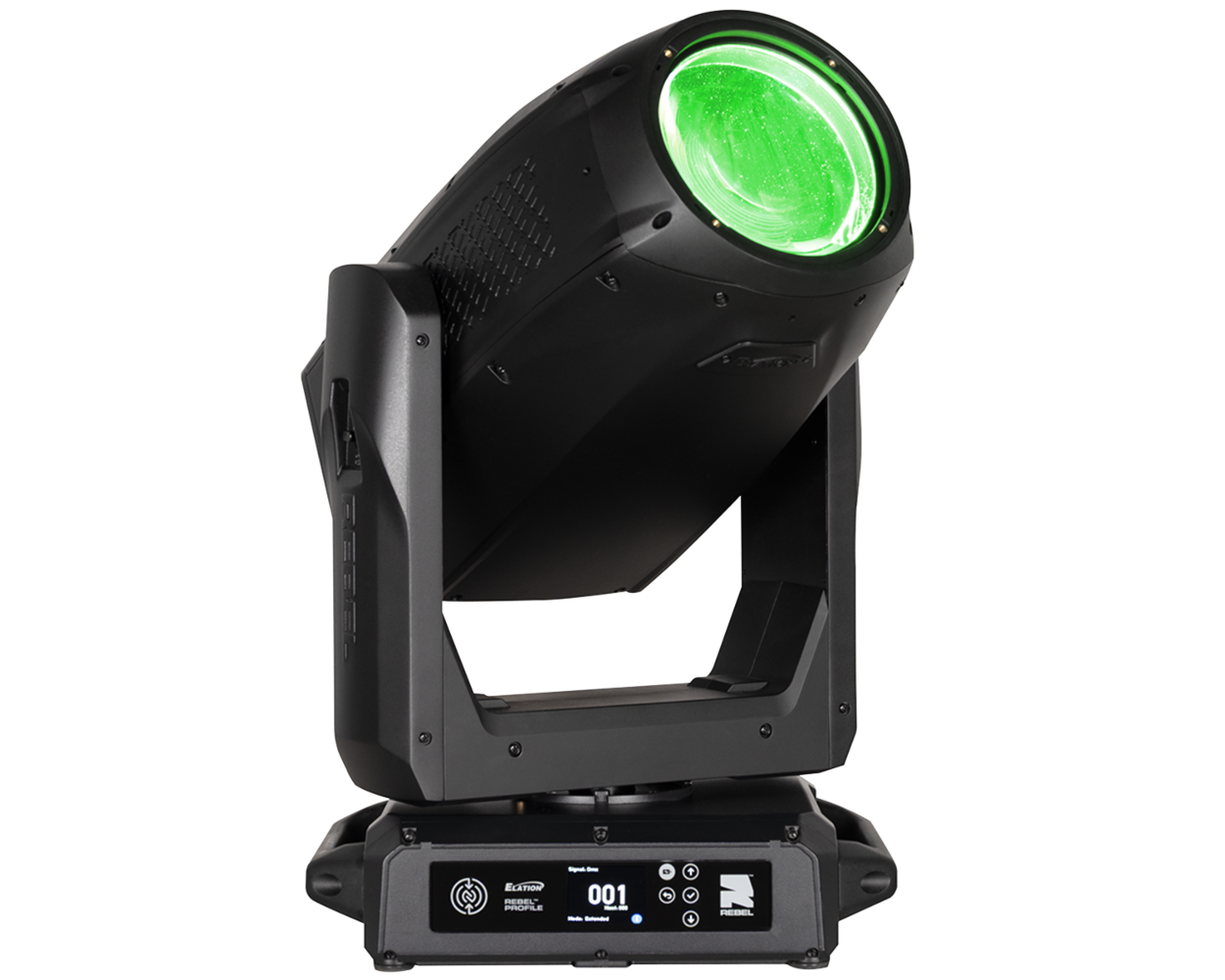

Elation Rebel Profile is an LED profile moving head with a 500 W, 6,500 K white LED engine giving up to 22,000 lumens. It has a 3.5 to 51 degree zoom, CMY colour mixing, a framing system with four blades and a gobo wheel set. It is IP65 rated for temporary outdoor use. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 500 W 6,500 K white LED engine, up to 22,000 lumens
- Zoom 3.5 to 51 degrees
- CMY mixing, variable CTO and 7 position colour wheel
- 7 rotating glass and 8 static glass gobos
- Indexable full blackout framing blades
- IP65 for temporary outdoor use
Specifications
| Light type | Moving head |
|---|---|
| Light source | 500 W 6,500 K white LED engine |
| Light power | 500 W |
| Beam angle | 3.5 to 51 degrees zoom |
| Colour system | CMY, variable CTO, 7 position colour wheel |
| DMX channels | 2 channel modes |
| IP rating | IP65 |
Manufacturer description
Features
IP65 for temporary outdoor applications
Peak field 500W 6,500K White LED Engine
Up to 22000 Total Lumens Fixture Output
CMY Color Mixing and Variable CTO
7-Position Color Wheel with dual High CRI Filters
Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
Indexable Full Blackout Framing System
Wide Zoom Range from 3.5° to 51°
Specifications
SOURCE
500W 6,500K Bright White Peak Field LED Engine
20,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
22000 Total Lumen Fixture Output
CRI 70+ (80 or 90 with HCRI Filter)
2:1Hotspot Ratio
Zoom Range 3.5° - 51°
Beam Angle
Field Angle
EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-60° Framing Module Index
Full 360° Bi-Directional Animation Wheel
4-Facet Round and 6 Facet Linear Rotating Prisms
2 Variable Frost Filters (Light and Wash)
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curves
High Speed Electronic Shutter and Strobe
DMX Controllable LED Refresh Rate
Pan Angle: 540°
Tilt Angle: 270°
Continuous 360° Pan Rotation
COLOR
CMY Color Mixing
Linear CTO Color Correction (2400K)
7 Dichroic Colors, including CRI 80, CRI 90 and UV
GOBOS
2 Gobo Wheels
7 Rotating Glass Gobos
8 Static Glass Gobos
CONTROL / CONNECTIONS
2 DMX Channel Modes
DMX, RDM, Art-NET, sACN Protocol Support
(5) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Hibernation Mode (Power Save)
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking RJ45 Ethernet Connector In/Out
IP65 Locking Power Connector In
SIZE / WEIGHT
Length: 15.65 in (398mm)
Width: 11.06 in (281mm)
Height: 26.2 in (666mm)
Center-to-Center Spacing in (mm)
Weight: 66 lbs. (29.9 kg)
ELECTRICAL
AC 100-240V 50/60Hz
Max Power Consumption 1026W
-4° to 113°F (-20°C to 45°C)
3509 BTU/hr (+/- 10%)
INCLUDED ITEMS
Omega Brackets (x2)
Safety Cable
IP65 Rated Locking Power Cable
