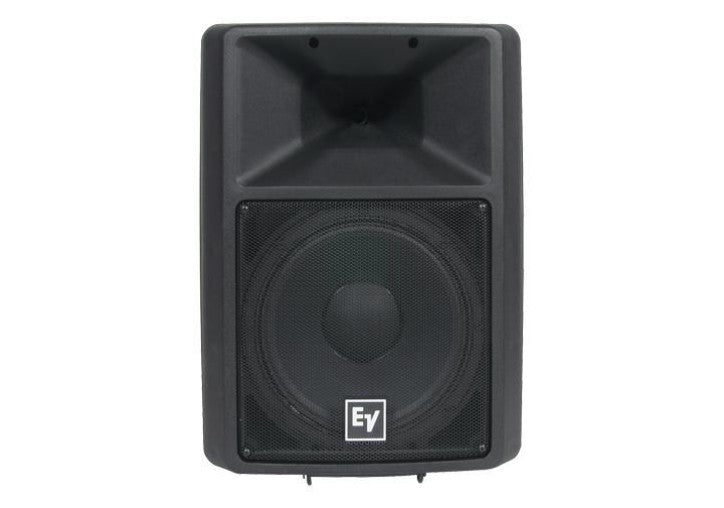

EV ELECTRO VOICE SX 100
Description
Electro-Voice Sx100+ is a 12" two way passive loudspeaker used in live sound, DJ, AV and institutional systems. A 12" woofer and DH3 compression driver on a Varipath horn give 65 x 65 degree coverage, handling 200 W continuous with 127 dB maximum SPL. Order from VMT with GST billing and pan-India delivery.
Key features
- 12" woofer with DH3 1" exit compression driver
- 200 W continuous, 800 W peak, 8 ohm
- 65 x 65 degree Varipath constant directivity horn
- 98 dB sensitivity, 127 dB max SPL
- Copolymer enclosure with monitor angle and pole mount, 14.5 kg
Specifications
| Type | Passive |
|---|---|
| Kind | Full-range |
| Woofer | 12" |
| HF driver | DH3 1" exit compression driver |
| Power (RMS) | 200 W |
| Power (peak) | 800 W |
| Max SPL | 127 dB |
| Frequency range | 60 Hz - 25 kHz |
| Impedance | 8 ohm |
| Coverage | 65 x 65 degrees |
| Connectors | Speakon |
| Built-in DSP | No |
| Bluetooth | No |
| Battery powered | No |
| 100V line | No |
| Weight | 14.5 kg |
Manufacturer description
The Electro-Voice Sx100+ is a proven 12 inch two-way passive loudspeaker that has earned its place in live sound, DJ, AV and institutional systems. A 12 inch woofer and a 1 inch exit DH3 compression driver on a constant-directivity Varipath horn produce clear, consistent coverage, while EV's Ring-Mode Decoupling helps keep vocals and speech intelligible. The trapezoidal copolymer enclosure is tough yet portable, with a steel grille, Speakon connections and an integral monitor angle, pole mount and rigging points, so one box covers mains, monitors and fixed installations.
- Drivers: 12" (300 mm) LF, 1" exit DH3 HF compression driver
- Frequency response (-10 dB): 60 Hz to 25 kHz
- Power handling: 200 W continuous, 800 W peak
- Sensitivity: 98 dB; max SPL 127 dB
- Coverage: 65° H × 65° V
- Impedance: 8 Ω nominal
- Dimensions: 586 × 429 × 312 mm; weight 14.5 kg
