Latest Products
VOLT+ BAR S
Features
5020 Total Fixture Lumen Output (Sphere)
90.9 CRI
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
>12hr Maximum Battery Run Time
IP65 Rated
Specifications
(6) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
5,020 (Integrating Sphere)
CRI- 90.9
TLCI- 80
No Lens
Beam Angle: 20°
Field Angle: 33°
Included Frost
Beam Angle: 30°
Field Angle: 60°
EFFECTS
Prebuilt & Custom Standalone Effect Sequences
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
13 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 14ch, 17ch, 17ch, 23ch, 23ch, 35ch, 47ch, 83ch, 36ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
IR Remote
NFC Configuration
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 19.7" (500mm)
Width: 6.9" (176mm)
Vertical Height: 8.9” (227mm)
Weight: 18.8 lbs / 8.55kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Thru Capacity: 10A (10 units @110V; 21 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 375.1
BATTERY
Lithium Ion Rechargable
Battery Capacity: 10.2 Ah
Battery Voltage: 18.5
Charge Time: 3hr
Battery Life: >12hr
Battery Recharge Cycles: >300 to 80% Capacity
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Splice
OPTIONAL ITEMS
6 Unit Charging Case
BAR S NSP Lens (BLS021)
BAR S WFL Lens (BLS061)
BAR S XFL Lens (BLS101)
BAR S L140 Lens (BLS141)
BAR S L1060 Lens (BLS161)
BAR S Dome Frost Lens (BLS181)
BAR S Black Lens (BLS125)
# 8050000053 - Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
Interconnect Clamp Adapter (FICA01)

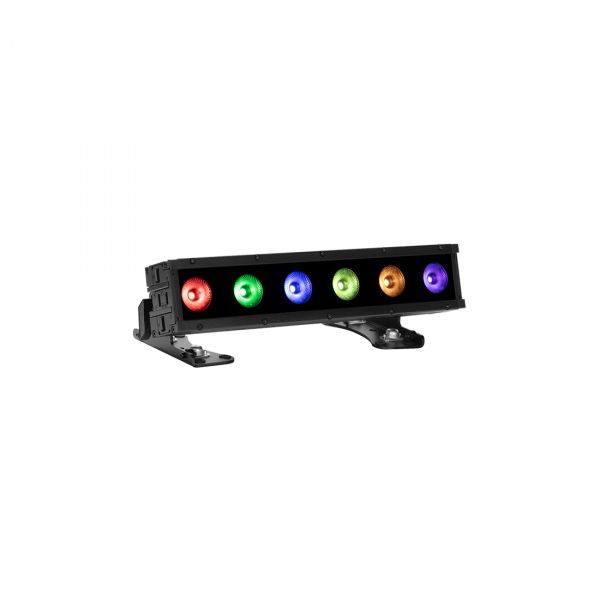

Building on the success of Elation’s SIX+ BAR S and L, the VOLT+ BAR S offers the same high output, expanded color spectrum, and a superior quality of light. Equipped with powerful 20W RGB+Lime+Amber+UV LEDs and boasting an impressive CRI of 90.9, this fixture delivers stunning, high-fidelity color rendering with beautifully homogenized output. Its advanced optical system ensures even light distribution, while the proprietary RGBLA+UV engine produces exceptional whites and vibrant primaries with no color fringing. The extra-large 50 mm lenses make it ideal for direct view applications, while individual cell control opens up a world of design possibilities.
Designed for true mobility, the VOLT+ BAR S features an integrated high-capacity battery for untethered operation in any environment. Whether it's used in a temporary outdoor setup, a fast-paced production, or an installation where power access is limited, the battery system ensures hours of reliable performance. A built-in battery management system optimizes power usage, while multiple charging options make recharging simple and efficient.
Measuring half a meter in length, the VOLT+ BAR S houses six RGBLA+UV LEDs and delivers over 5020 lumens of output. It features fully variable color temperature adjustment (2400K - 8500K), CMY emulation, and a virtual gel library for seamless color customization. The integrated accessory slot accommodates the included frost filter, with optional ND filters and other optics available. The fixture also ships with a glare shield for wall wash applications.
For maximum versatility, the VOLT+ BAR S’s innovative housing allows for end-to-end interconnection and includes an integrated L track on three sides for flexible mounting and positioning. Adjustable trunnions can be fixed at multiple points, allowing optimal placement around objects or obstacles.
Encased in a rugged, fully IP65-rated housing, the VOLT+ BAR S is built to withstand any environment—indoors or outdoors. A durable C4-M marine-grade coating protects against harsh conditions, including salty coastal air, while fanless convection cooling ensures silent operation, making it ideal for noise-sensitive settings.
With wired and wireless control options—including DMX/RDM, IR Remote, Prebuilt & Custom Standalone Effect Sequences, proprietary Aria x2 wireless device management and NFC Configuration—the VOLT+ BAR S delivers seamless system integration and effortless control.
Features
(6) 20W RGBLA+UV LED Array5020 Total Fixture Lumen Output (Sphere)
90.9 CRI
Battery or AC Operation
Extra Large 50mm Lenses
Beam Angle: 30°x 14° (Frost Filter Included)
Full Pixel Control
Integrated L Track for Flexible Mounting
Unique End-to-End Interconnection System
>12hr Maximum Battery Run Time
IP65 Rated
Specifications
SOURCE(6) x 20W RGBLA+ UV LEDs
30,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
5,020 (Integrating Sphere)
CRI- 90.9
TLCI- 80
No Lens
Beam Angle: 20°
Field Angle: 33°
Included Frost
Beam Angle: 30°
Field Angle: 60°
EFFECTS
Prebuilt & Custom Standalone Effect Sequences
Full Pixel Control
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
RGBLA+ UV Color Array
CMY Emulation
Variable CCT 2400K - 8500K
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
13 DMX Channel Modes (1ch, 3ch, 6ch, 9ch, 14ch, 17ch, 17ch, 23ch, 23ch, 35ch, 47ch, 83ch, 36ch)
4 Button Control Panel, LED Display
Aria x2 Wireless Device Management
IR Remote
NFC Configuration
RDM (Remote Device Management)
IP65 5pin XLR DMX In/Out
IP65 Locking Power Cable In/Out
SIZE / WEIGHT
Length: 19.7" (500mm)
Width: 6.9" (176mm)
Vertical Height: 8.9” (227mm)
Weight: 18.8 lbs / 8.55kg
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Thru Capacity: 10A (10 units @110V; 21 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 375.1
BATTERY
Lithium Ion Rechargable
Battery Capacity: 10.2 Ah
Battery Voltage: 18.5
Charge Time: 3hr
Battery Life: >12hr
Battery Recharge Cycles: >300 to 80% Capacity
INCLUDED ITEMS
Safety Cable
IP65 Locking Power Cable
Frost Filter
Glare Shield
Fixture Interconnect Splice
OPTIONAL ITEMS
6 Unit Charging Case
BAR S NSP Lens (BLS021)
BAR S WFL Lens (BLS061)
BAR S XFL Lens (BLS101)
BAR S L140 Lens (BLS141)
BAR S L1060 Lens (BLS161)
BAR S Dome Frost Lens (BLS181)
BAR S Black Lens (BLS125)
# 8050000053 - Omega Bracket (Qty.2)
Fixture Interconnect Splice Package (FISP06)
L-Track to M10 Adapter,70mm (LTR001)
L-Track to M10 Adapter, 44.5mm (LTR008)
L Track C-Clamp & Adapter Assembly, 70mm (LTR100)
L Track C-Clamp & Adapter Assembly, 44.5mm (LTR112)
Interconnect Clamp Adapter (FICA01)
