BRITISH ACOUSTICS XP 52 S
Description

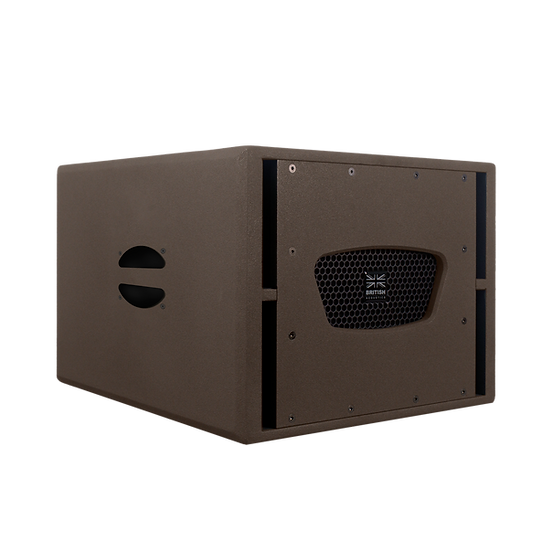

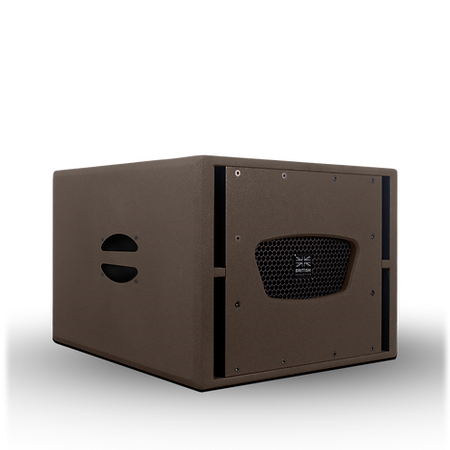

British Acoustics XP 52 S is a powered 12" band pass subwoofer with two extra amplifier channels for satellite speakers. A three channel 2500 W Class-H amplifier, 24-bit DSP and two channel mixer with Bluetooth make it the heart of a compact PA, with 127 dB peak output. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 12" band pass subwoofer, 400 W AES driver
- 2500 W three channel Class-H amplifier
- Two satellite outputs, 500 W channels
- Two channel mixer with Bluetooth, 24-bit DSP
- M10 inserts, pole socket, optional wheels, 30 kg
Specifications
| Type | Active |
|---|---|
| Kind | Subwoofer |
| Woofer | 12" |
| Max SPL | 127 dB |
| Connectors | 2 x TRS mic in, XLR line in, XLR line out, 2 x 16A powerCON in/thru |
| Built-in DSP | Yes |
| Built-in mixer | Yes |
| Bluetooth | Yes |
| Battery powered | No |
| 100V line | No |
| Weight | 30.0 kg |
| Mounting | M10 flying inserts, threaded pole socket |
Manufacturer description
XP 52 S
12" Band Pass Subwoofer
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 49 Hz - 200 kHz
• Freq. Range (-10 dB) : 29 Hz - 200 kHz
• Omni Directional
• Cardioid presets available
• Crossover : 80 - 120 Hz
Active
• Max Output : 121dB, 127dB
Peak
Amplifier & DSP Specifications
• 2500W - Three Channel
Class-H Amplifier
• CH 1 : 1 x 1500W for the subwoofer
• CH 2/3 : 500W Each to connect satelite
speakers
• M1 Power Factor Crossover Module
• Enhanced Amplifier efficiency
• 3-Stage System protection process
• 24-Bit Built-In DSP for Superior voicing
• On-Board 2 Channel Mixer with Bluetooth

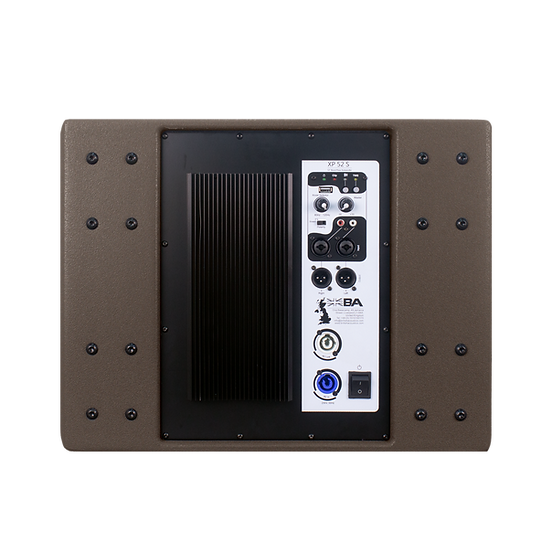

• 2 x TRS Jack mic input, 1 x XLR line input,
1 x XLR line output & 1 x Bluetooth input
• 2 x 16A PowerCon Connectors, Input & Thru
LF TRANSDUCER
• 12X200 - 12" Low Frequency Driver
• 400W AES, 1600W Peak
• 3" Voice Coil - Ferrite Magnet
• Long Excursion Magnetic Circuit
• Special Surrounds for ULF boost
HOUSING
• Larch Pine Wood Enclosure
• Granular Scratch Free Paint

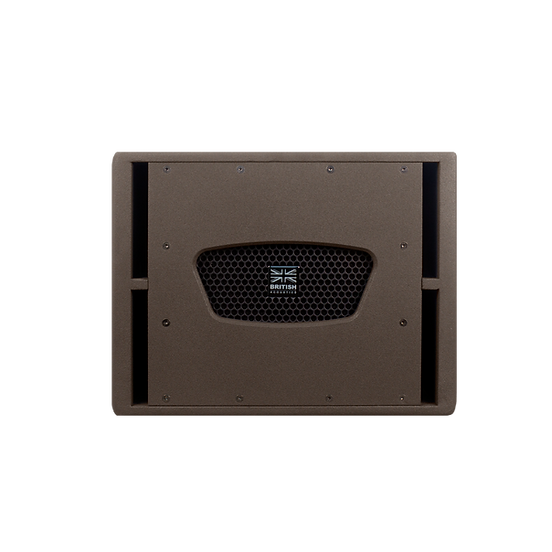

• Perforated Black, Pressed Steel Grills
• Integrated Handles on Either Side
• Stackable Rubber Feet
• M10 Flying Inserts

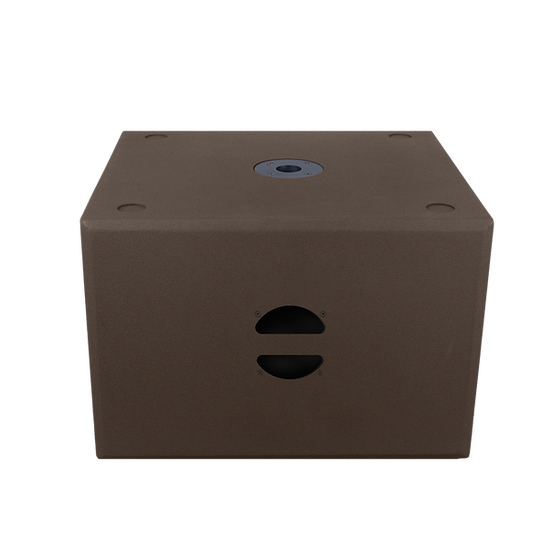

• Threaded Pole Socket
• Optional Wheels for Easy Portability
OPERATING PARAMETERS
• Operating positions: Can be used horizontally or vertically and can be used as a stack of subs
• Maximum permitted ambient temperature (Ta max) 40° C (104° F)
• Minimum permitted ambient temperature (Ta min): 4° C (39.2° F)
IP SPECIFICATIONS
• Standard Version : IP 43 - Standard protection against dust & splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 567 x 400 x 570 mm (H x W x D)
• Product : 22 x 15 x 22 inch (H x W x D)
• Packed Individually
WEIGHT
• Net : 30 Kgs
• Net : 66.1 Lbs
SHIPPING INFORMATION
• Carton Size
642 x 475 x 645 mm (H x W x D)
25.27 x 18.70 x 25.39 inch (H x W x D)
• Gross Weight - 31.5 Kgs / 69.44 Lbs
• Packed : Individually
