Features

Best in class audio performance
2000 Watt Class-D amplifier module
Intrinsic Correction™ tuning and loudspeaker management
DMT™ (Directivity Matched Transition) design provides excellent power response and consistent performance across the listening are
Refined, professional appearance looks great in any application
Rugged ABS enclosure for long life and lasting durability
Deployment in either main PA or floor monitor position

Factory Presets and savable/recallable Scenes for commonly-used application
Multi-function digital display for control and selection of loudspeaker functions including cross-over, EQ, delay and frequency contour
Dual pole cup mounts (standard and 7.5 degree down-tilt)
M10 fittings for flown applications
Optional security panel prevents unauthorized tampering of controls
Complete EASE and CAD information available online
6-Year Warranty (with product registration)

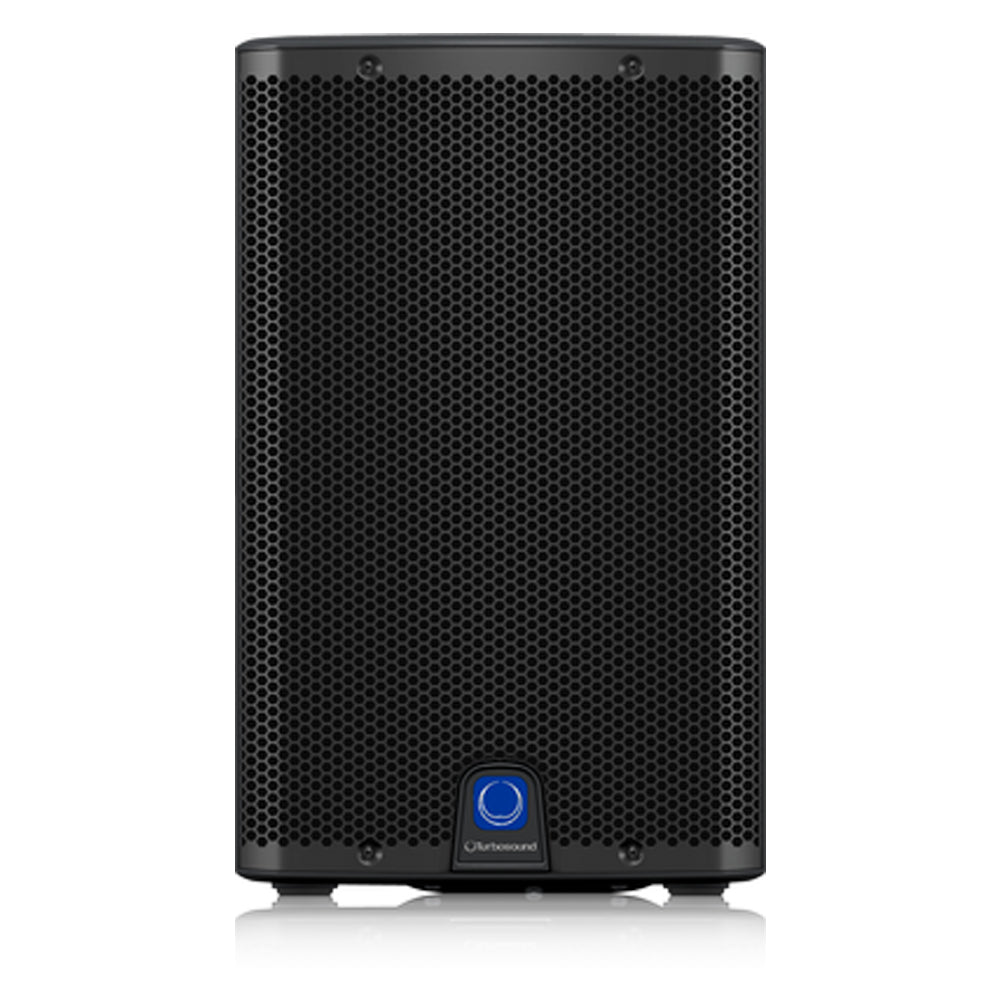

Configuration	Multi-purpose, 2-way powered loudspeaker
LF Transducer	10" (254 mm), cone
HF Transducer	1.4" (35.6 mm) titanium diaphragm compression driver
Frequency Response (-6 dB)	56 Hz - 20 kHz
Frequency Range (-10 dB)	50 Hz - 20 kHz
Nominal Coverage Angle	90° Axisymetric
Maximum Rated SPL¹ Amplifier Cooling	130 dB @1 M, peak 124 dB @ 1 M, continuous Class D Peak: 1800 W (LF), 225 W (HF) Low-noise, variable speed fan
Controls	Power 3 x Level Rotary encoder (push) 2 x selection buttons
Indicators	Monochrome LCD Display 1.75" x 1" (45 mm x 25.4 mm) 2 x Power LED (front and rear) 3 x Input Signal LED Input A Mic selected LED Input B Hi-Z selected LED Limiter active LED
Connectors	2 x locking XLR/F ¼" combo (Mic/Line Input and Hi-Z/Line Input 1 x 3.5 mm TRS (Stereo Input) 2 x XLR/M (Loop-thru Output) 1 x XLR/M (Mix Output) 1 x locking IEC power connector
AC Power Input	Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power²	100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A
AC Power Consumption - Standby	.2A at any voltage
Enclosure Details
Enclosure Enclosure	Impact Resistant ABS
Attachment Points	2 x M10 threaded inserts plus Pull-Back
Color	Black (RAL 9011)
Grille	18 Gauge powered coated steel, internal cloth lining
Dimensions (HxWxD)	20.4 x 12.6 x 11.8 in 519 x 320 x 300 mm
Net Weight	14.5 kg (32 lbs)
Shipping Weight	17.6 kg (38.8 lbs)
Regulatory	CE, WEEE, UL, China RoHS, RoHS II, FCC Class B
Optional Accessories	K10 Tote, K10 Outdoor Cover M10 Kit-C, K.2-LOC Lock Out Cove K10.2 Yoke
