Faital Pro 10FH530
Ferrite
Description

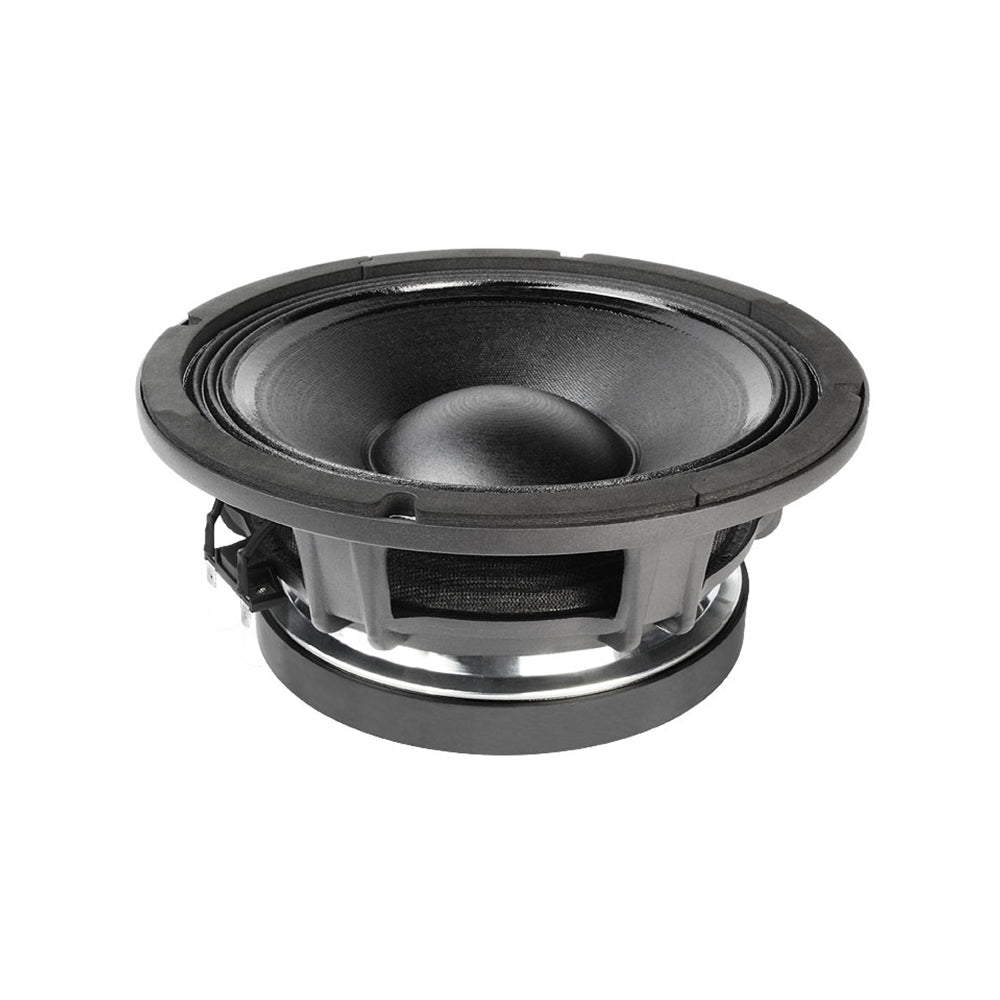

Faital Pro 10FH530 is a 10 inch cone driver with a 77 mm voice coil and a ferrite magnet. The listing gives 500 W AES power and 97 dB sensitivity on 8 ohm, covering 60 Hz to 4 kHz. The net weight is 7.5 kg. Useful for PA and monitor builds that need the listed bandwidth. VMT ships it across India with a GST invoice.
Key features
- 10" cone driver with Ferrite magnet
- Voice coil 77 mm (3")
- 500 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 60 Hz - 4 kHz
- Net weight 7.5 kg
Specifications
| Woofer | 10" |
|---|
| Power (RMS) | 500 W |
|---|
| Frequency range | 60 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 7.5 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
250 mm (10 in) |
| Overall Diameter |
261 mm (10.28 in) |
| Bolt Circle Diameter |
246 mm (9.69 in) |
| Baffle Cutout Diameter |
230 mm (9.06 in) |
| Depth |
130 mm (5.12 in) |
| Flange and Gasket Thickness |
11.5 mm (0.45 in) |
| Net Weight |
7.5 kg (16.5 lb) |
Shipping Box
(Single Carton Box) |
294 x 290 x 203 mm
(11.6 x 11.4 x 8.0 in) |
| Shipping Weight |
8 kg (17.6 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
| AES Power Handling (1)
|
500 W |
| Maximum Power Handling (2)
|
1000 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
60÷4000 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
18.5 mm (0.73 in) |
| Magnetic Gap Depth |
10.5 mm (0.41 in) |
| Flux Density |
1.2 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
2 dm^3 (0.071 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
60 Hz |
| Re |
5.1 Ohm |
| Qes |
0.25 |
| Qms |
12.4 |
| Qts |
0.25 |
| Vas |
23.5 dm^3 (0.83 ft^3) |
| Sd |
347 cm^2 (53.79 in^2) |
| Xmax (4)
|
7.50 mm |
| Xdamage (5)
|
18.8 mm |
| Mms |
50.3 g |
| Bl |
19.5 N/A |
| Le |
0.8 mH |
| Mmd |
43.0 g |
| Cms |
0.14 mm/N |
| Rms |
1.5 kg/s |
| Eta Zero |
1.94 % |
| EBP |
240 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
02504149 |
| Recone Kit - 8 Ohm Version |
R2504161 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
