Faital Pro 15HP1010
Ferrite
Description

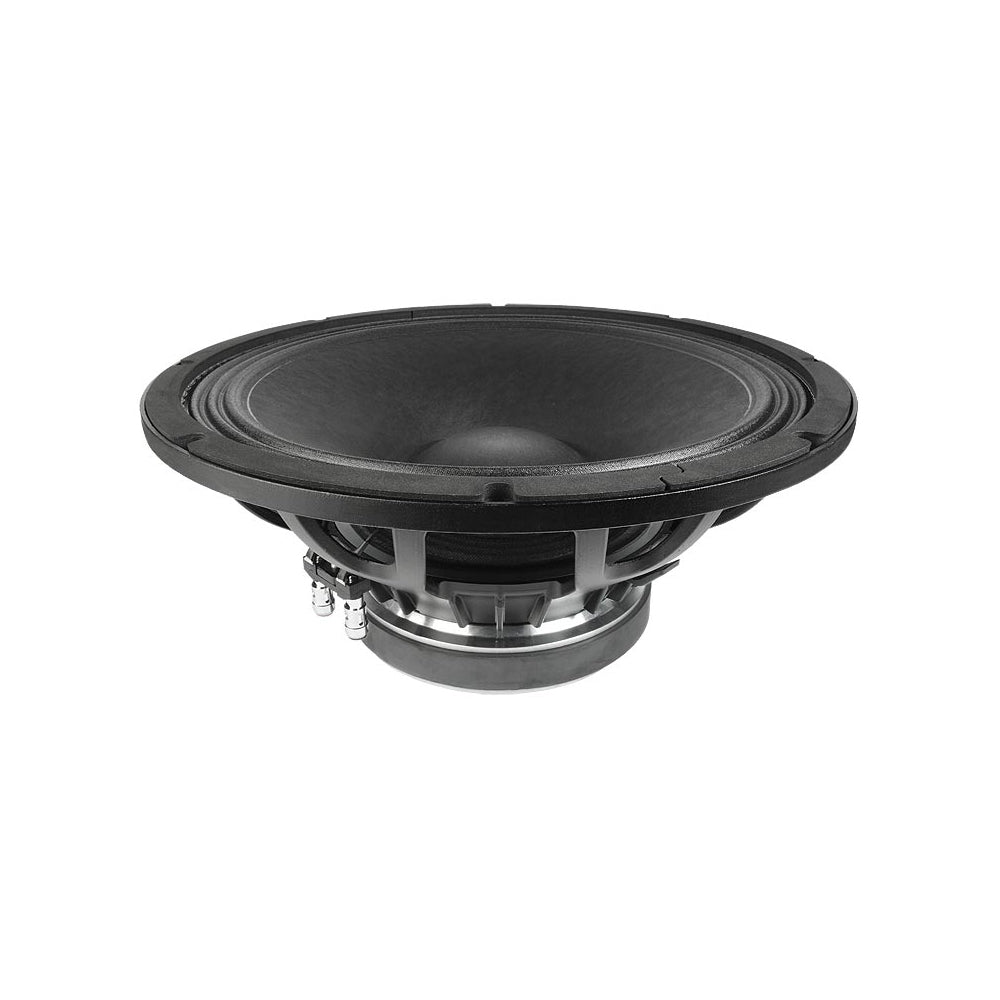

Faital Pro 15HP1010 is a 15 inch cone driver with a 100 mm voice coil and a ferrite magnet. The listing gives 700 W AES power and 96 dB sensitivity on 8 ohm, covering 40 Hz to 2.5 kHz. The net weight is 9.8 kg. A practical choice for repairs and new cabinet builds. Purchase through VMT with a GST invoice and delivery across India.
Key features
- 15" cone driver with Ferrite magnet
- Voice coil 100 mm (4")
- 700 W AES power on 8 ohm
- Sensitivity 96 dB (1 W / 1 m)
- Frequency range 40 Hz - 2.5 kHz
- Net weight 9.8 kg
Specifications
| Woofer | 15" |
|---|
| Power (RMS) | 700 W |
|---|
| Frequency range | 40 Hz - 2.5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 96 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 9.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
354 mm (13.94 in) |
| Depth |
183 mm (7.20 in) |
| Flange and Gasket Thickness |
13.3 mm (0.52 in) |
| Net Weight |
9.8 kg (21.5 lb) |
Shipping Box
(Single Carton Box) |
430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in) |
| Shipping Weight |
10.8 kg (23.8 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.9 Ohm |
| AES Power Handling (1)
|
700 W |
| Maximum Power Handling (2)
|
1400 W |
| Sensitivity (1W/1m) |
96 dB |
| Frequency Range |
40÷2500 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
23 mm (0.91 in) |
| Magnetic Gap Depth |
10.5 mm (0.41 in) |
| Flux Density |
1.05 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
4.7 dm^3 (0.166 ft^3) |
| Spider Profile |
2x non-adjacent symmetrical constant height waves |
|
Thiele and small parameters
| Fs |
40 Hz |
| Re |
5.3 Ohm |
| Qes |
0.38 |
| Qms |
10.0 |
| Qts |
0.37 |
| Vas |
107.5 dm^3 (3.80 ft^3) |
| Sd |
822 cm^2 (127.41 in^2) |
| Xmax (4)
|
9.75 mm |
| Xdamage (5)
|
21.9 mm |
| Mms |
138.9 g |
| Bl |
22 N/A |
| Le |
1.8 mH |
| Mmd |
112.3 g |
| Cms |
0.11 mm/N |
| Rms |
3.5 kg/s |
| Eta Zero |
1.75 % |
| EBP |
105 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03804070 |
| Recone Kit - 8 Ohm Version |
R3804070 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
