Faital Pro 15PR450
Ferrite
Description

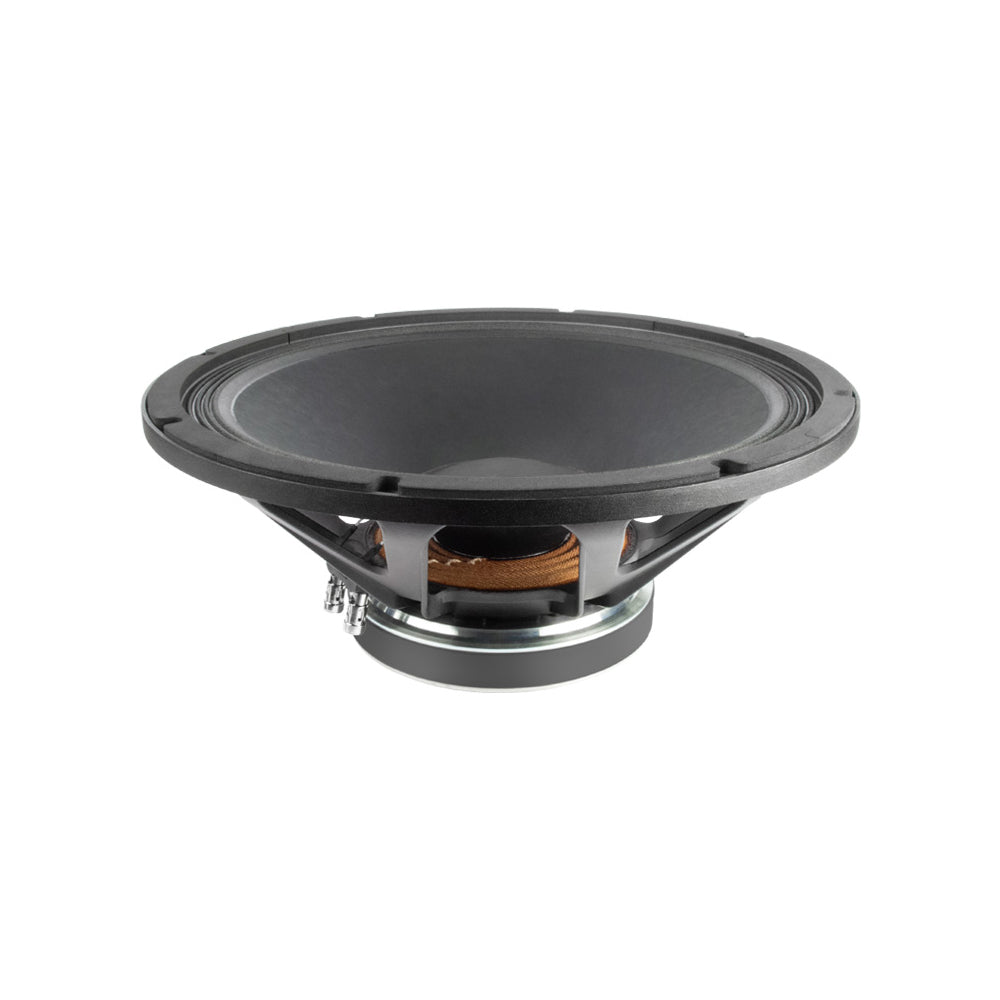

Faital Pro 15PR450 is a 15 inch cone driver with a 77 mm voice coil and a ferrite magnet. The listing gives 400 W AES power and 98 dB sensitivity on 8 ohm, covering 35 Hz to 4 kHz. The net weight is 7.8 kg. A practical choice for repairs and new cabinet builds. Available from VMT with a GST invoice, shipped across India.
Key features
- 15" cone driver with Ferrite magnet
- Voice coil 77 mm (3")
- 400 W AES power on 8 ohm
- Sensitivity 98 dB (1 W / 1 m)
- Frequency range 35 Hz - 4 kHz
- Net weight 7.8 kg
Specifications
| Woofer | 15" |
|---|
| Power (RMS) | 400 W |
|---|
| Frequency range | 35 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 98 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 7.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
356 mm (14.02 in) |
| Depth |
172.6 mm (6.80 in) |
| Flange and Gasket Thickness |
13.6 mm (0.54 in) |
| Net Weight |
7.8 kg (17.2 lb) |
Shipping Box
(Single Carton Box) |
430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in) |
| Shipping Weight |
8.9 kg (19.6 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.2 Ohm |
| AES Power Handling (1)
|
400 W |
| Maximum Power Handling (2)
|
800 W |
| Sensitivity (1W/1m) |
98 dB |
| Frequency Range |
35÷4000 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
15 mm (0.59 in) |
| Magnetic Gap Depth |
9 mm (0.35 in) |
| Flux Density |
1.15 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Accordion (4 Waves) |
| NET Air Volume filled by Loudspeaker |
4.1 dm^3 (0.145 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
35 Hz |
| Re |
5.1 Ohm |
| Qes |
0.37 |
| Qms |
6.9 |
| Qts |
0.35 |
| Vas |
235.6 dm^3 (8.32 ft^3) |
| Sd |
857 cm^2 (132.84 in^2) |
| Xmax (4)
|
6.00 mm |
| Xdamage (5)
|
23 mm |
| Mms |
90 g |
| Bl |
16.6 N/A |
| Le |
0.65 mH |
| Mmd |
61.6 g |
| Cms |
0.23 mm/N |
| Rms |
2.9 kg/s |
| Eta Zero |
2.67 % |
| EBP |
96 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
TBD |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
