Faital Pro 5FE105
Speaker Spares
Description

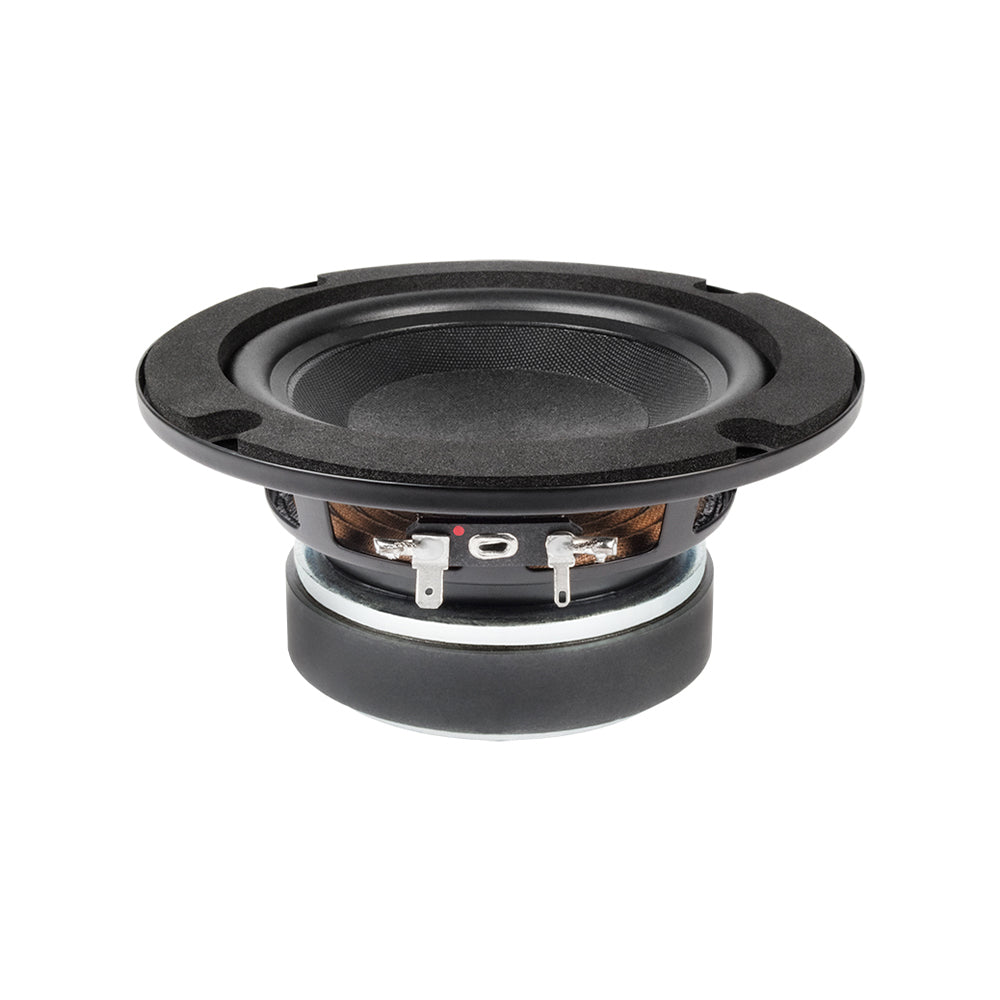

Faital Pro 5FE105 is a 5 inch cone driver with a 32 mm voice coil and a ferrite magnet. The listing gives 80 W AES power and 88 dB sensitivity on 8 ohm, covering 63 Hz to 6.3 kHz. The net weight is 1.12 kg. Builders can check the Thiele and Small figures before choosing a box. Purchase through VMT with a GST invoice and delivery across India.
Key features
- 5" cone driver with Ferrite magnet
- Voice coil 32 mm (1.26")
- 80 W AES power on 8 ohm
- Sensitivity 88 dB (1 W / 1 m)
- Frequency range 63 Hz - 6.3 kHz
- Net weight 1.12 kg
Specifications
| Woofer | 5" |
|---|
| Power (RMS) | 80 W |
|---|
| Frequency range | 63 Hz - 6.3 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 88 dB (1 W / 1 m) |
|---|
| Voice coil | 32 mm (1.26") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 1.12 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
130 mm (5 in) |
| Overall Diameter |
146.4 mm (5.8 in) |
| Bolt Circle Diameter |
133 mm (5.24 in) |
| Baffle Cutout Diameter |
114 mm (4.49 in) |
| Depth |
72.8 mm (2.86 in) |
| Flange and Gasket Thickness |
7.8 mm (0.30 in) |
| Net Weight |
1.12 kg (2.5 lb) |
Shipping Box
(Single Carton Box - 8 units) |
302 x 275 x 186 mm
(11.9 x 10.8 x 7.3 in) |
| Shipping Weight (8 units) |
10.1 kg (22.3 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.3 Ohm |
| AES Power Handling (1)
|
80 W |
| Maximum Power Handling (2)
|
160 W |
| Sensitivity (1W/1m) |
88 dB |
| Frequency Range |
63÷6300 Hz |
| Voice Coil Diameter |
32 mm (1.26 in) |
| Winding Material |
Cu |
| Former Material |
Kapton |
| Winding Depth |
12.5 mm (0.49 in) |
| Magnetic Gap Depth |
6 mm (0.24 in) |
| Flux Density |
1 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Steel |
| Demodulation |
No |
| Cone Surround (3)
|
Half Roll |
| NET Air Volume filled by Loudspeaker |
0.3 dm^3 (0.011 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
65 Hz |
| Re |
5.4 Ohm |
| Qes |
0.48 |
| Qms |
8.2 |
| Qts |
0.45 |
| Vas |
5.7 dm^3 (0.20 ft^3) |
| Sd |
84 cm^2 (13.07 in^2) |
| Xmax (4)
|
5.25 mm |
| Xdamage (5)
|
9.5 mm |
| Mms |
10.5 g |
| Bl |
6.9 N/A |
| Le |
0.53 mH |
| Mmd |
9.6 g |
| Cms |
0.57 mm/N |
| Rms |
0.52 kg/s |
| Eta Zero |
0.31 % |
| EBP |
135 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
01304362 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) NBR (Rubber) |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
