Faital Pro 6FE300
Speaker Spares
Description

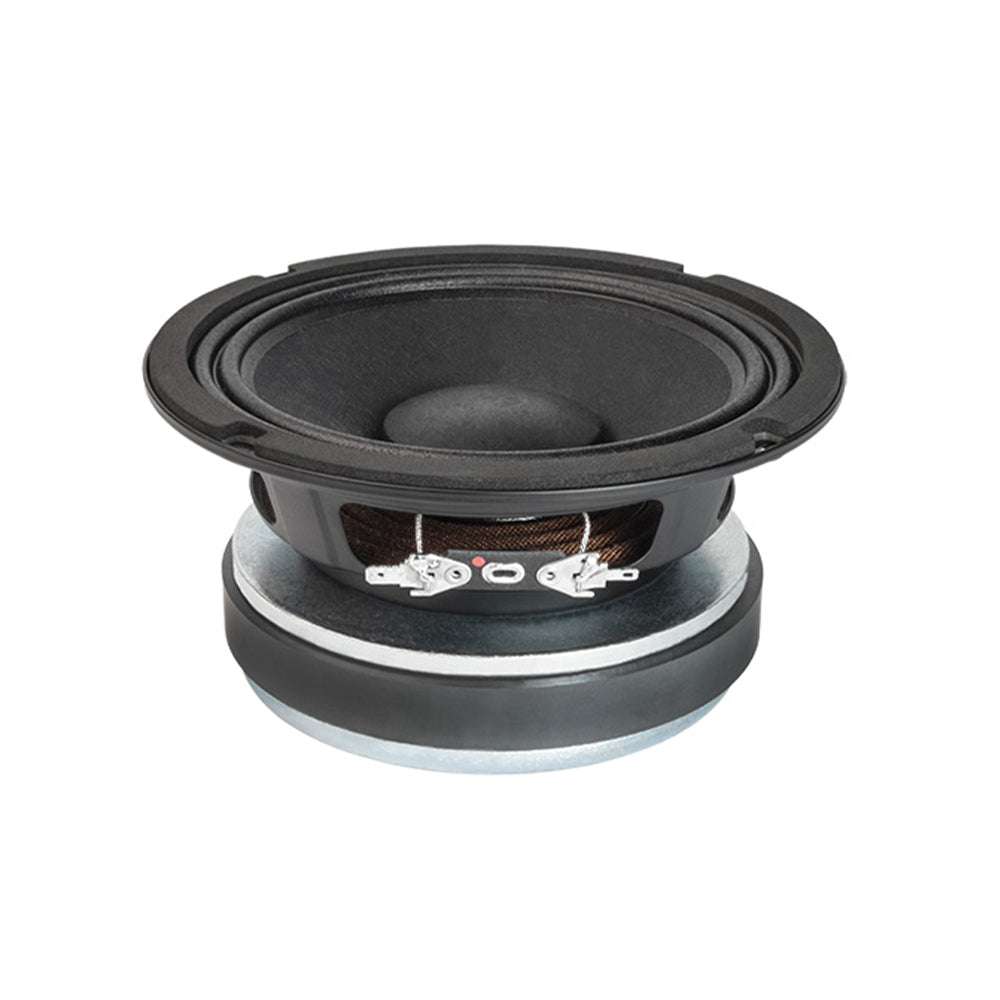

Faital Pro 6FE300 is a 6 inch cone driver with a 52 mm voice coil and a ferrite magnet. The listing gives 175 W AES power and 94 dB sensitivity on 8 ohm, covering 90 Hz to 4 kHz. The net weight is 2.8 kg. Builders can check the Thiele and Small figures before choosing a box. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 6" cone driver with Ferrite magnet
- Voice coil 52 mm (2.05")
- 175 W AES power on 8 ohm
- Sensitivity 94 dB (1 W / 1 m)
- Frequency range 90 Hz - 4 kHz
- Net weight 2.8 kg
Specifications
| Woofer | 6" |
|---|
| Power (RMS) | 175 W |
|---|
| Frequency range | 90 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 94 dB (1 W / 1 m) |
|---|
| Voice coil | 52 mm (2.05") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 2.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
160 mm (6 in) |
| Overall Diameter |
166.5 mm (6.56 in) |
| Bolt Circle Diameter |
155 mm (6.10 in) |
| Baffle Cutout Diameter |
146 mm (5.75 in) |
| Depth |
81 mm (3.19 in) |
| Flange and Gasket Thickness |
7 mm (0.28 in) |
| Net Weight |
2.8 kg (6.2 lb) |
Shipping Box
(Single Carton Box) |
190 x 185 x 103 mm
(7.48 x 7.28 x 4.05 in) |
| Shipping Weight |
3 kg (6.6 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.5 Ohm |
| AES Power Handling (1)
|
175 W |
| Maximum Power Handling (2)
|
350 W |
| Sensitivity (1W/1m) |
94 dB |
| Frequency Range |
90÷4000 Hz |
| Voice Coil Diameter |
52 mm (2.05 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
9.8 mm (0.39 in) |
| Magnetic Gap Depth |
6 mm (0.24 in) |
| Flux Density |
1.15 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Steel |
| Demodulation |
No |
| Cone Surround (3)
|
M-Roll |
| NET Air Volume filled by Loudspeaker |
0.6 dm^3 (0.021 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
100 Hz |
| Re |
5.3 Ohm |
| Qes |
0.48 |
| Qms |
10.5 |
| Qts |
0.46 |
| Vas |
4.7 dm^3 (0.17 ft^3) |
| Sd |
138 cm^2 (21.39 in^2) |
| Xmax (4)
|
3.90 mm |
| Xdamage (5)
|
13.1 mm |
| Mms |
14.2 g |
| Bl |
10 N/A |
| Le |
0.4 mH |
| Mmd |
12.4 g |
| Cms |
0.18 mm/N |
| Rms |
0.8 kg/s |
| Eta Zero |
0.97 % |
| EBP |
208 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
01604323 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
