Faital Pro 8FE300
Ferrite
Description

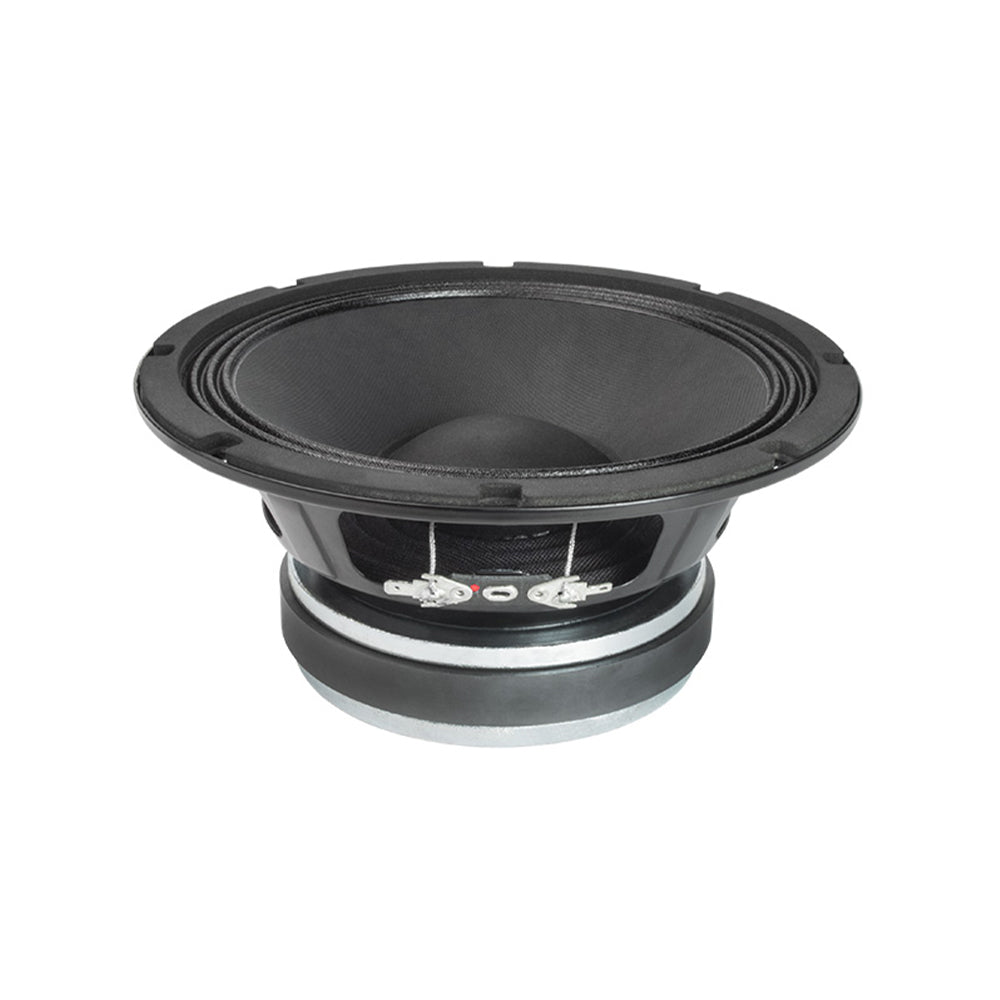

Faital Pro 8FE300 is an 8 inch cone driver with a 52 mm glass fibre voice coil former and a ferrite ring magnet. The listing gives 250 W AES power, 8 ohm nominal impedance and 95 dB sensitivity. Its stated range is 80 Hz to 5 kHz. Available from VMT with a GST invoice and delivery across India.
Key features
- 8 inch (200 mm) cone with 52 mm voice coil
- AES power 250 W, maximum 500 W
- Ferrite ring magnet, 8 mm magnetic gap depth
- Nominal 8 ohm, minimum 6.9 ohm
- Frequency range 80 Hz to 5000 Hz, Fs 70 Hz
Specifications
| Driver type | Woofer |
|---|
| Woofer | 8" |
|---|
| Power (RMS) | 250 W |
|---|
| Frequency range | 80 Hz - 5000 Hz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 95 dB (1 W / 1 m) |
|---|
| Voice coil | 52 mm |
|---|
| Magnet | Ferrite |
|---|
| Weight | 3.1 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
200 mm (8 in) |
| Overall Diameter |
209 mm (8.23 in) |
| Bolt Circle Diameter |
197.5 mm (7.78 in) |
| Baffle Cutout Diameter |
183 mm (7.20 in) |
| Depth |
95 mm (3.74 in) |
| Flange and Gasket Thickness |
7 mm (0.28 in) |
| Net Weight |
3.1 kg (6.8 lb) |
Shipping Box
(Single Carton Box) |
227 x 224 x 113 mm
(8.93 x 8.81 x 4.44 in) |
| Shipping Weight |
3.2 kg (7.1 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.9 Ohm |
| AES Power Handling (1)
|
250 W |
| Maximum Power Handling (2)
|
500 W |
| Sensitivity (1W/1m) |
95 dB |
| Frequency Range |
80÷5000 Hz |
| Voice Coil Diameter |
52 mm (2.05 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
13.7 mm (0.54 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
| Flux Density |
1.1 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Steel |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
0.7 dm^3 (0.025 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
70 Hz |
| Re |
5.8 Ohm |
| Qes |
0.46 |
| Qms |
13.4 |
| Qts |
0.44 |
| Vas |
15.7 dm^3 (0.55 ft^3) |
| Sd |
223 cm^2 (34.57 in^2) |
| Xmax (4)
|
5.52 mm |
| Xdamage (5)
|
11.6 mm |
| Mms |
22.9 g |
| Bl |
11.3 N/A |
| Le |
0.55 mH |
| Mmd |
19.1 g |
| Cms |
0.23 mm/N |
| Rms |
0.8 kg/s |
| Eta Zero |
1.14 % |
| EBP |
152 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
02004322 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
