Faital Pro 12XL1200
Neodymium
Description

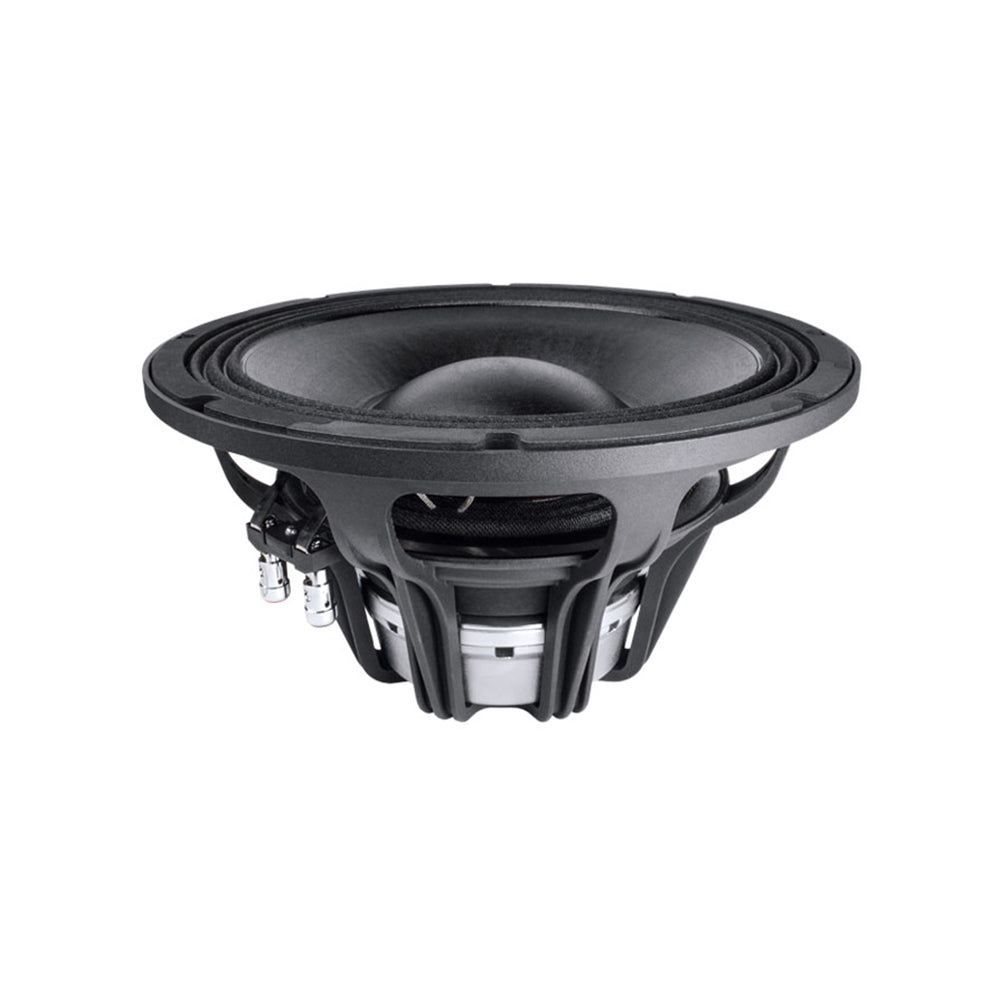

Faital Pro 12XL1200 is a 12 inch cone driver with a 100 mm voice coil and a neodymium magnet. The listing gives 1400 W AES power and 93 dB sensitivity on 8 ohm, covering 50 Hz to 2.5 kHz. The net weight is 6.8 kg. Builders can check the Thiele and Small figures before choosing a box. Available from VMT with a GST invoice, shipped across India.
Key features
- 12" cone driver with Neodymium magnet
- Voice coil 100 mm (4")
- 1400 W AES power on 8 ohm
- Sensitivity 93 dB (1 W / 1 m)
- Frequency range 50 Hz - 2.5 kHz
- Net weight 6.8 kg
Specifications
| Woofer | 12" |
|---|
| Power (RMS) | 1400 W |
|---|
| Frequency range | 50 Hz - 2.5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 93 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 6.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
300 mm (12 in) |
| Overall Diameter |
316 mm (12.44 in) |
| Bolt Circle Diameter |
298.5 mm (11.75 in) |
| Baffle Cutout Diameter |
282 mm (11.10 in) |
| Depth |
168.75 mm (6.64 in) |
| Flange and Gasket Thickness |
12.45 mm (0.49 in) |
| Net Weight |
6.8 kg (15.0 lb) |
Shipping Box
(Single Carton Box) |
350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in) |
| Shipping Weight |
7.5 kg (16.5 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.5 Ohm |
| AES Power Handling (1)
|
1400 W |
| Maximum Power Handling (2)
|
2800 W |
| Sensitivity (1W/1m) |
93 dB |
| Frequency Range |
50÷2500 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
28.9 mm (1.14 in) |
| Magnetic Gap Depth |
12 mm (0.47 in) |
| Flux Density |
1.1 T |
| Magnet |
Neodymium Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
2.9 dm^3 (0.102 ft^3) |
| Spider Profile |
2x non-adjacent symmetrical variable height waves |
|
Thiele and small parameters
| Fs |
50 Hz |
| Re |
5 Ohm |
| Qes |
0.43 |
| Qms |
14.8 |
| Qts |
0.42 |
| Vas |
25.0 dm^3 (0.88 ft^3) |
| Sd |
518 cm^2 (80.29 in^2) |
| Xmax (4)
|
12.45 mm |
| Xdamage (5)
|
24 mm |
| Mms |
152 g |
| Bl |
23.6 N/A |
| Le |
1.3 mH |
| Mmd |
138.7 g |
| Cms |
0.07 mm/N |
| Rms |
3.2 kg/s |
| Eta Zero |
0.71 % |
| EBP |
116 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03004310 |
| Recone Kit - 8 Ohm Version |
R3004310 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
