Faital Pro 15HX500
Neodymium
Description

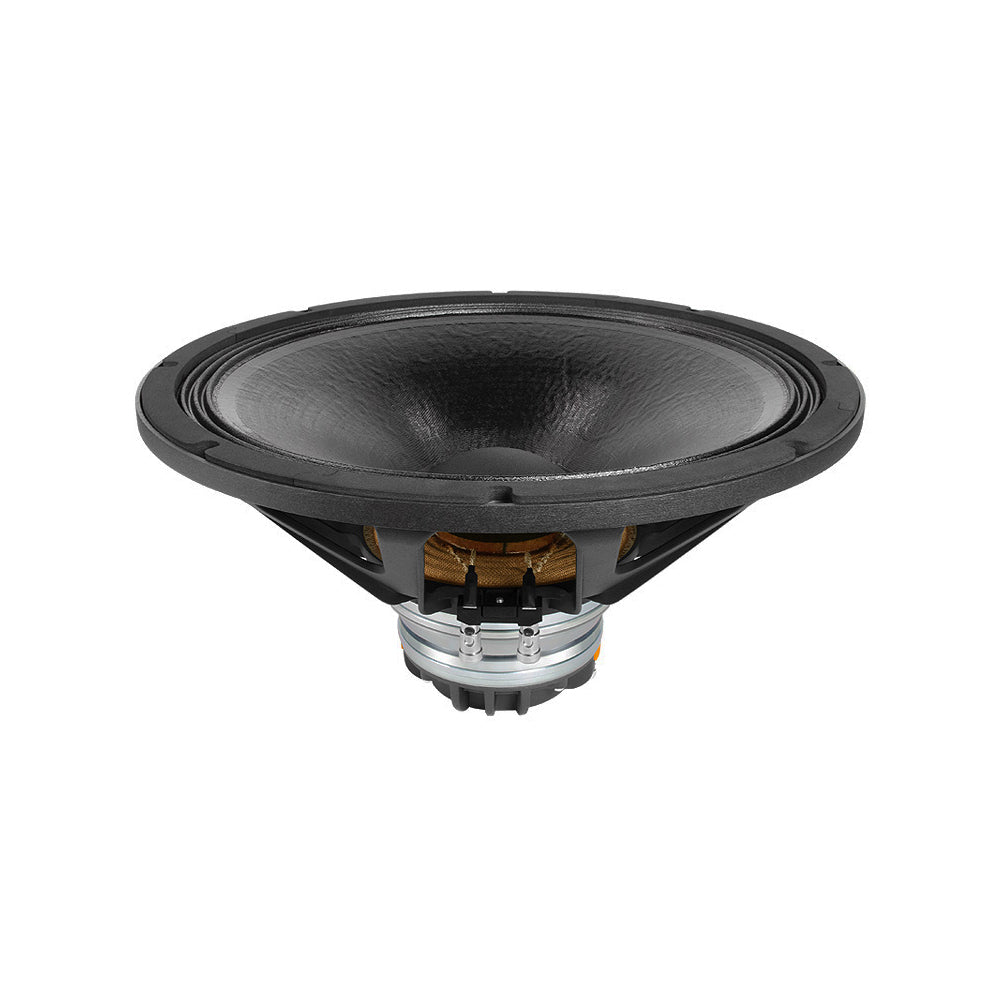

Faital Pro 15HX500 is a 15 inch coaxial driver with a titanium dome high frequency section. The low section is rated at 400 W AES over 40 Hz to 3150 Hz, and the high section at 90 W AES over 500 Hz to 20 kHz. Both sections are listed at 8 ohm nominal. Buy it at VMT with a GST invoice and delivery across India.
Key features
- LF cone 15 inch, 77 mm voice coil, neodymium ring magnet
- HF section 74 mm voice coil, titanium dome, 100 degree dispersion
- LF AES 400 W, maximum 800 W; HF AES 90 W, maximum 180 W
- HF minimum crossover 0.9 kHz
- Net weight 6.1 kg
Specifications
| Driver type | Coaxial driver |
|---|
| Woofer | 15" |
|---|
| Frequency range | 40 Hz - 3150 Hz (LF), 500 Hz - 20 kHz (HF) |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB LF / 105 dB HF (1 W / 1 m) |
|---|
| Voice coil | 77 mm LF / 74 mm HF |
|---|
| Magnet | Neodymium (LF and HF) |
|---|
| Weight | 6.1 kg |
|---|
Manufacturer description
Nominal Specifications
| Nom. Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
352 mm (13.86 in) |
| Depth |
200 mm (7.87 in) |
| Flange and Gasket Thickness |
14 mm (0.55 in) |
| Net Weight |
6.1 kg (13.4 lb) |
Shipping Box
(Single Carton Box) |
422 x 417 x 264 mm
(16.6 x 16.4 x 10.4 in) |
| Shipping Weight |
7 kg (15.4 lb) |
| Technical Parameters |
{ LF } |
{ HF } |
| Nom. Impedance |
8 Ohm |
8 Ohm |
| Minimum Impedance |
6.6 Ohm |
7.2 Ohm |
| AES Power Handling (1)
|
400 W |
90 W |
| Max Power Handling (2)
|
800 W |
180 W |
| Sensitivity (1W/1m) (3)
|
97 dB |
105 dB |
| Frequency Range |
40÷3150 Hz |
500÷20000 Hz |
| Voice Coil Diameter |
77 mm (3,03 in) |
74 mm (2.91 in) |
| Winding Material |
Cu |
Al |
| Former Material |
Glass Fiber |
Kapton |
| Winding Depth |
21.8 mm (0.86 in) |
3.5 mm (0.14 in) |
| Magnetic Gap Depth |
9 mm (0.35 in) |
3.7 mm (0.15 in) |
| Flux Density |
1.2 T |
2 T |
| Min. Cross. Freq. (4)
|
- |
0.9 kHz |
| Dispersion Angle |
- |
100° |
| Diaphragm Material |
- |
Titanium |
| Diaphragm Shape |
- |
Dome |
| Magnet |
Neodymium Ring |
Neodymium Ring |
| Basket Material |
Aluminum |
- |
| Demodulation |
Aluminum Ring |
- |
| Cone Surround (5)
|
Triple Roll |
- |
| NET Air Volume filled by Loudspeaker |
3.4 dm^3 (0.120 ft^3) |
- |
| Spider Profile |
1x variable height waves |
- |
|
Thiele and small parameters { LF }
| Fs |
40 Hz |
| Re [LF] |
5 Ohm |
| Re [HF] |
5.6 Ohm |
| Qes |
0.29 |
| Qms |
5.5 |
| Qts |
0.28 |
| Vas |
150.1 dm^3 (5.30 ft^3) |
| Sd |
864 cm^2 (133.94 in^2) |
| Xmax (6)
|
9.40 mm |
| Xdamage (7)
|
18.5 mm |
| Mms |
110.0 g |
| Bl |
22.2 N/A |
| Le |
0.84 mH |
| Mmd |
81.3 g |
| Cms |
0.14 mm/N |
| Rms |
5.0 kg/s |
| Eta Zero |
3.32 % |
| EBP |
138 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03804355 |
| Recone Kit LF - 8 Ohm Version |
R3804354 |
| Recone Kit HF - 8 Ohm Version |
R0744328 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) HF Sensitivity averaged within the frequency range |
|
(4) 12 dB/oct or higher slope high-pass filter |
|
(5) Treated Polycotton |
|
(6) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(7) Maximum excursion before permanent damage |
|
