Faital Pro 15XL1200
Neodymium
Description

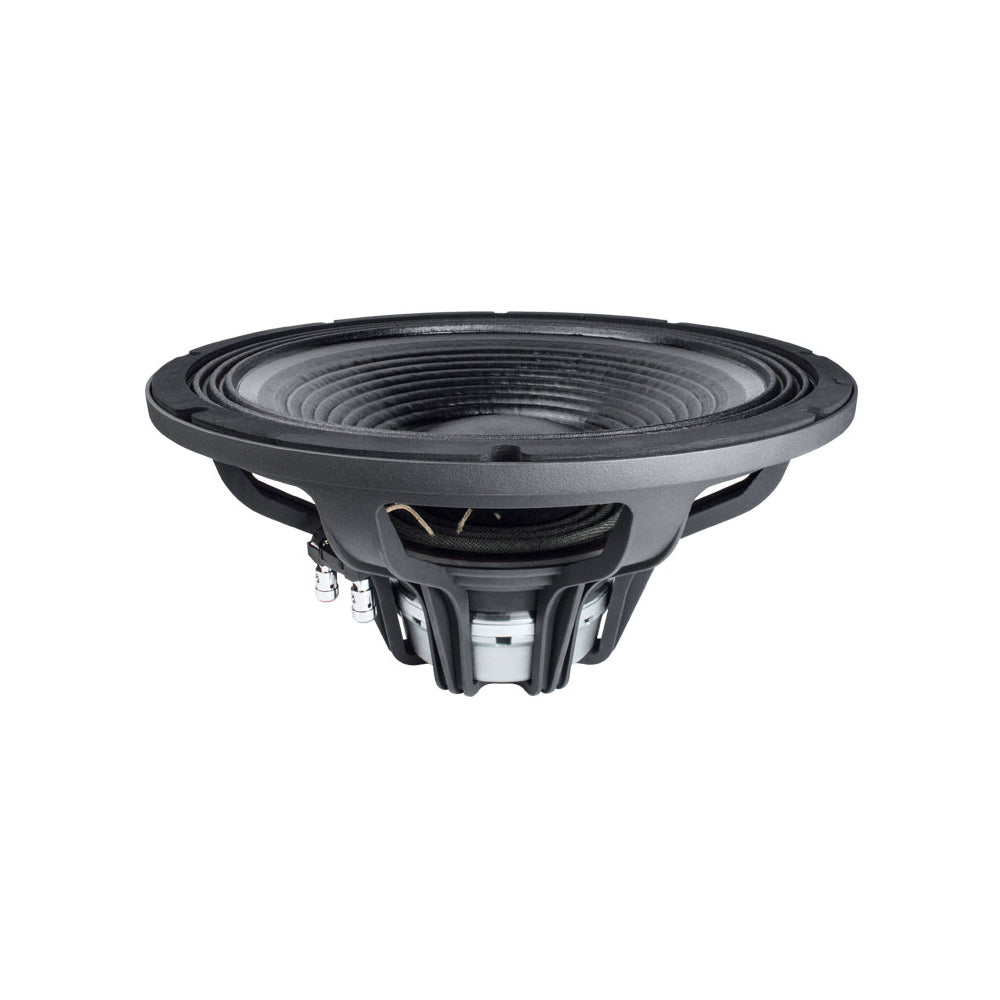

Faital Pro 15XL1200 is a 15 inch cone driver with a 100 mm voice coil and a neodymium magnet. The listing gives 1400 W AES power and 95 dB sensitivity on 8 ohm, covering 40 Hz to 2 kHz. The net weight is 7.3 kg. Useful for PA and monitor builds that need the listed bandwidth. Order it from VMT with GST billing and delivery across India.
Key features
- 15" cone driver with Neodymium magnet
- Voice coil 100 mm (4")
- 1400 W AES power on 8 ohm
- Sensitivity 95 dB (1 W / 1 m)
- Frequency range 40 Hz - 2 kHz
- Net weight 7.3 kg
Specifications
| Woofer | 15" |
|---|
| Power (RMS) | 1400 W |
|---|
| Frequency range | 40 Hz - 2 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 95 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 7.3 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
354 mm (13.94 in) |
| Depth |
194.3 mm (7.65 in) |
| Flange and Gasket Thickness |
13.7 mm (0.54 in) |
| Net Weight |
7.3 kg (16.1 lb) |
Shipping Box
(Single Carton Box) |
430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in) |
| Shipping Weight |
8.6 kg (19.0 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
| AES Power Handling (1)
|
1400 W |
| Maximum Power Handling (2)
|
2800 W |
| Sensitivity (1W/1m) |
95 dB |
| Frequency Range |
40÷2000 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
28.9 mm (1.14 in) |
| Magnetic Gap Depth |
12 mm (0.47 in) |
| Flux Density |
1.1 T |
| Magnet |
Neodymium Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
4.1 dm^3 (0.145 ft^3) |
| Spider Profile |
2x non-adjacent symmetrical variable height waves |
|
Thiele and small parameters
| Fs |
40 Hz |
| Re |
5 Ohm |
| Qes |
0.41 |
| Qms |
10.9 |
| Qts |
0.40 |
| Vas |
86.9 dm^3 (3.07 ft^3) |
| Sd |
841 cm^2 (130.36 in^2) |
| Xmax (4)
|
12.45 mm |
| Xdamage (5)
|
24 mm |
| Mms |
180.0 g |
| Bl |
23.6 N/A |
| Le |
1.34 mH |
| Mmd |
152.4 g |
| Cms |
0.09 mm/N |
| Rms |
4.2 kg/s |
| Eta Zero |
1.33 % |
| EBP |
98 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03804311 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
