Faital Pro 18XL1700
Neodymium
Description

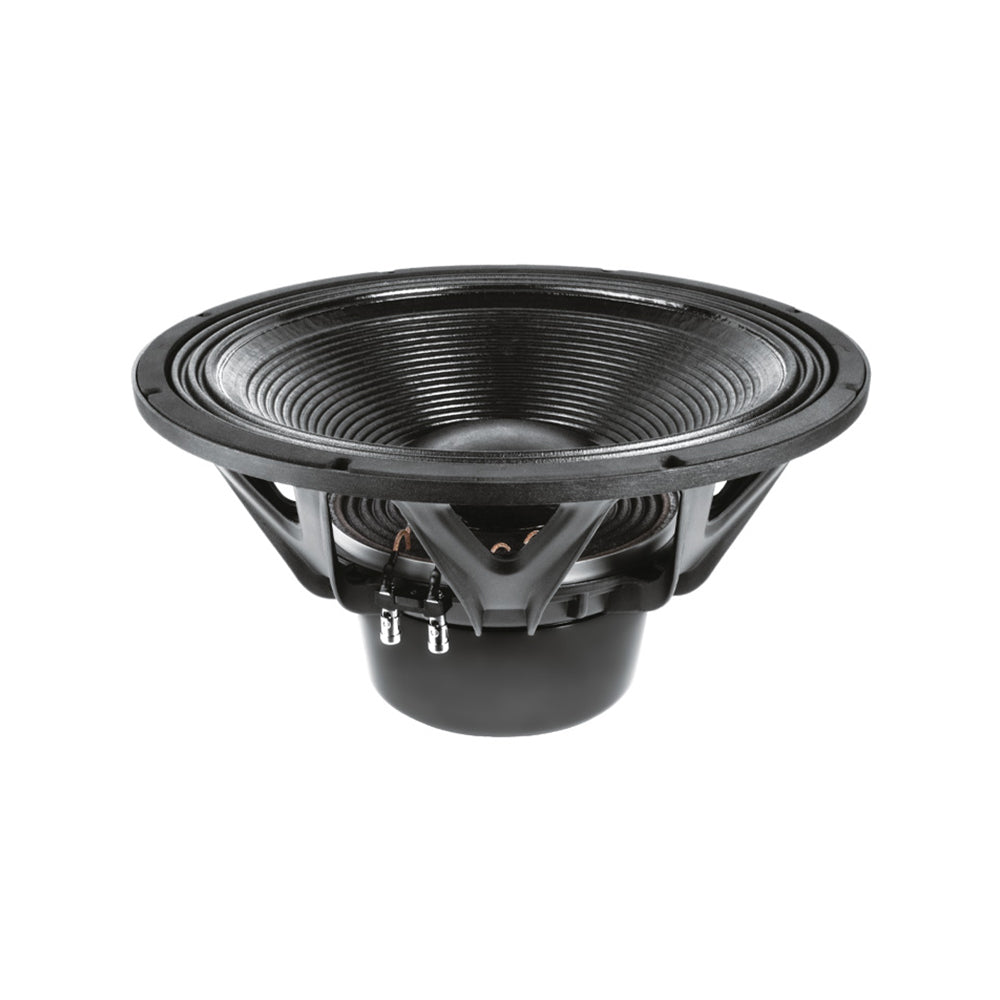

Faital Pro 18XL1700 is a 18 inch cone driver with a 100 mm voice coil and a neodymium magnet. The listing gives 1600 W AES power and 97 dB sensitivity on 8 ohm, covering 30 Hz to 1.5 kHz. The net weight is 14.9 kg. Builders can check the Thiele and Small figures before choosing a box. Purchase through VMT with a GST invoice and delivery across India.
Key features
- 18" cone driver with Neodymium magnet
- Voice coil 100 mm (4")
- 1600 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 30 Hz - 1.5 kHz
- Net weight 14.9 kg
Specifications
| Woofer | 18" |
|---|
| Power (RMS) | 1600 W |
|---|
| Frequency range | 30 Hz - 1.5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 14.9 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
460 mm (18 in) |
| Overall Diameter |
460 mm (18.11 in) |
| Bolt Circle Diameter |
440 mm (17.32 in) |
| Baffle Cutout Diameter |
422 mm (16.61 in) |
| Depth |
234 mm (9.21 in) |
| Flange and Gasket Thickness |
14 mm (0.55 in) |
| Net Weight |
14.9 kg (32.7 lb) |
Shipping Box
(Single Carton Box) |
490 x 485 x 275 mm
(19.2 x 19.0 x 10.8 in) |
| Shipping Weight |
16.4 kg (36.0 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.9 Ohm |
| AES Power Handling (1)
|
1600 W |
| Maximum Power Handling (2)
|
3200 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
30÷1500 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
37 mm (1.46 in) |
| Magnetic Gap Depth |
14 mm (0.55 in) |
| Flux Density |
1.15 T |
| Magnet |
Neodymium Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
8.4 dm^3 (0.295 ft^3) |
| Spider Profile |
2x constant height waves |
|
Thiele and small parameters
| Fs |
28 Hz |
| Re |
5.4 Ohm |
| Qes |
0.29 |
| Qms |
10.0 |
| Qts |
0.28 |
| Vas |
227.0 dm^3 (8.02 ft^3) |
| Sd |
1187 cm^2 (183.99 in^2) |
| Xmax (4)
|
16.17 mm |
| Xdamage (5)
|
27 mm |
| Mms |
280.0 g |
| Bl |
30.5 N/A |
| Le |
2.36 mH |
| Mmd |
233.8 g |
| Cms |
0.12 mm/N |
| Rms |
4.9 kg/s |
| Eta Zero |
1.7 % |
| EBP |
98 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
04604436 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
