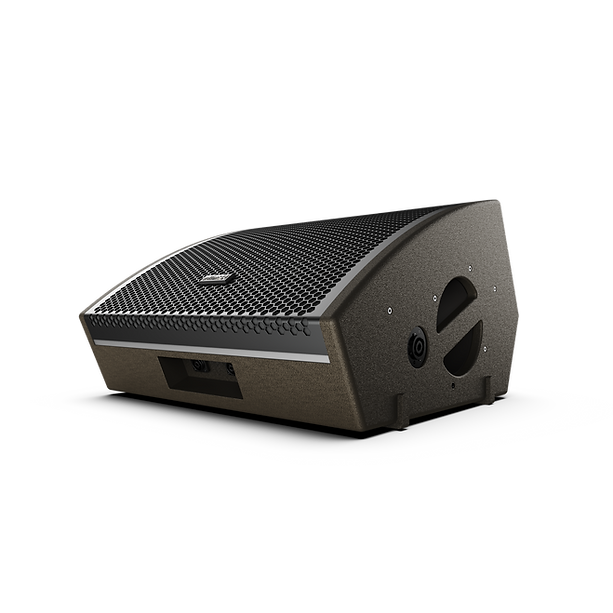

Delta 950X
12" Co-Axial Multipurpose Monitor
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 78 Hz - 20 kHz
• Freq. Range (-10 dB) : 58 Hz - 20 kHz
• Rated Power : 550W AES, 2200W Peak
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 60° (- 6 dB)
• Nominal Impedance : 8 Ω
• Crossover : 1.8 kHz Passive
• Max Output : Cont. - 123dB, Peak - 129dB
• 5 x Speak-On Sockets, Input & Thru
SYSTEM SPECIFICATIONS
• Recommended System Control : Delta 48 , Delta 98 FIR, PW 6
• Recommended Amplififiers : See Amplififier load calculation chart
CO-AXIAL TRANSDUCER
• ARD-CX-12-76- 12" Coaxial Driver with 1.4" Compression Driver
• 450W AES, 1800W Peak
• LF : 3" Voice Coil - Ferrite Magnet
• AuraTense Suspension for an optimised compliant restoring force
• Engineered Demodulation Circuit to minimize magnetic flux and lower distortion
• HF : 3" Voice Coil - Ferrite
• 100W AES, 400W Peak
• Mounted behind the asymmetrical aura max waveguide that ensures minimal resonance across a precise coverage pattern
• Co-axial configuration allows for maximum coherence by reducing phase imbalances
HOUSING
• Birch wood Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Stainless Steel Grill backed by acoustically transparent foam over a stainless steel mesh
• M10 Flying Inserts
• Rubber feet for use as floor monitor
• Standard 35mm Pole Socket
• Easy Transport Wood Recessed Handles with ABS Gripmats
AESTHETIC SPECIFICATIONS
• British Acoustics Signature Umber Brown Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24 nos, minimum)
OPERATING PARAMETERS
• Operating positions: To be used as a stage monitor, or vertically deployed over a sub, or on pole mount as an FOH Speaker
• Maximum permitted ambient temperature (Ta max) 55° C (124° F)
• Minimum permitted ambient temperature (Ta min): -9° C (15.8° F)
IP SPECIFICATIONS
• IP 43 - Standard protection against dust &
splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 305 x 496 x 472 mm (H x W x D)
• Product : 12 x 19.5 x 18.6 inch (H x W x D)
• Packed individua
WEIGHT
• Net : 18 Kgs
• Net : 39.7 Lbs
SHIPPING INFORMATION
• Carton Size
380 x 571 x 547 mm (H x W x D)
14.96 x 22.48 x 21.53 inch (H x W x D)
• Gross Weight : 18.9 Kgs / 41.66 Lbs
• Packed : Individually
Delta 950X
12" Co-Axial Multipurpose Monitor
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 78 Hz - 20 kHz
• Freq. Range (-10 dB) : 58 Hz - 20 kHz
• Rated Power : 550W AES, 2200W Peak
• H Dispersion : 100° (- 6 dB)
• V Dispersion : 60° (- 6 dB)
• Nominal Impedance : 8 Ω
• Crossover : 1.8 kHz Passive
• Max Output : Cont. - 123dB, Peak - 129dB
• 5 x Speak-On Sockets, Input & Thru
SYSTEM SPECIFICATIONS
• Recommended System Control : Delta 48 , Delta 98 FIR, PW 6
• Recommended Amplififiers : See Amplififier load calculation chart
CO-AXIAL TRANSDUCER
• ARD-CX-12-76- 12" Coaxial Driver with 1.4" Compression Driver
• 450W AES, 1800W Peak
• LF : 3" Voice Coil - Ferrite Magnet
• AuraTense Suspension for an optimised compliant restoring force
• Engineered Demodulation Circuit to minimize magnetic flux and lower distortion
• HF : 3" Voice Coil - Ferrite
• 100W AES, 400W Peak
• Mounted behind the asymmetrical aura max waveguide that ensures minimal resonance across a precise coverage pattern
• Co-axial configuration allows for maximum coherence by reducing phase imbalances
HOUSING
• Birch wood Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Stainless Steel Grill backed by acoustically transparent foam over a stainless steel mesh
• M10 Flying Inserts
• Rubber feet for use as floor monitor
• Standard 35mm Pole Socket
• Easy Transport Wood Recessed Handles with ABS Gripmats
AESTHETIC SPECIFICATIONS
• British Acoustics Signature Umber Brown Tone
• Non Reflective, Matte Black Grills
• Available in a RAL code of your choice (24 nos, minimum)
OPERATING PARAMETERS
• Operating positions: To be used as a stage monitor, or vertically deployed over a sub, or on pole mount as an FOH Speaker
• Maximum permitted ambient temperature (Ta max) 55° C (124° F)
• Minimum permitted ambient temperature (Ta min): -9° C (15.8° F)
IP SPECIFICATIONS
• IP 43 - Standard protection against dust &
splashes
OPTIONAL ACCESSORIES
• See system chart for the System Accessories
SIZE
• Product : 305 x 496 x 472 mm (H x W x D)
• Product : 12 x 19.5 x 18.6 inch (H x W x D)
• Packed individua
WEIGHT
• Net : 18 Kgs
• Net : 39.7 Lbs
SHIPPING INFORMATION
• Carton Size
380 x 571 x 547 mm (H x W x D)
14.96 x 22.48 x 21.53 inch (H x W x D)
• Gross Weight : 18.9 Kgs / 41.66 Lbs
• Packed : Individually
