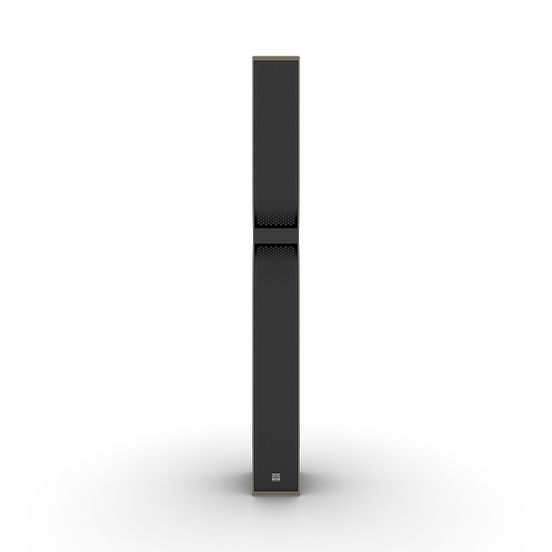

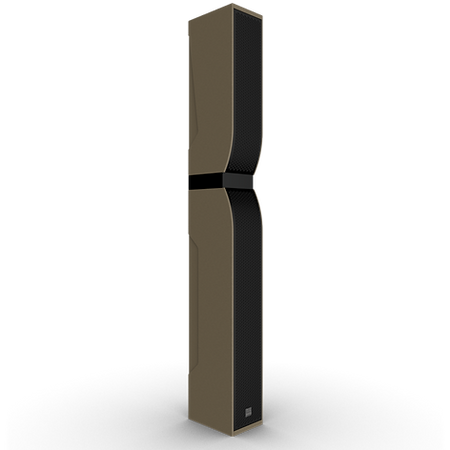

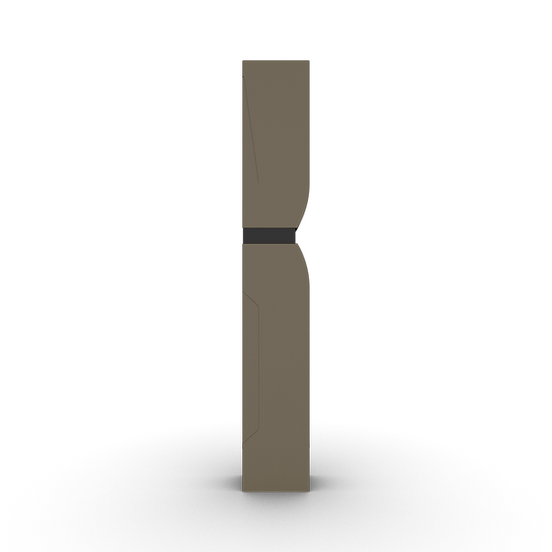

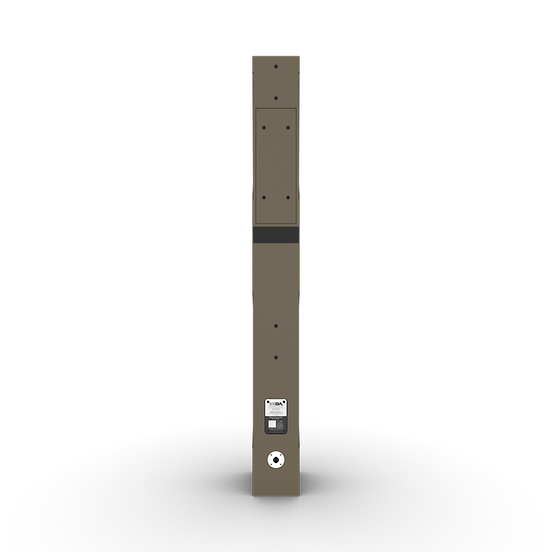

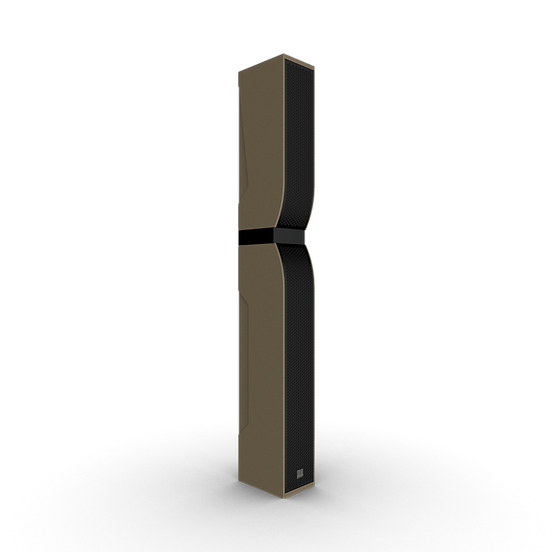

Alpha Club Six C
5" X 6 MF WITH 3 X 1" HF High Power Column Speaker
TECHNICAL SPECIFICATIONS
ACOUSTICAL SPECIFICATIONS
• Freq. Response (-3 dB) : 93 Hz - 20 kHz
• Freq. Range (-10 dB) : 80 Hz - 20 kHz
• Rated Power : 750W AES, 3000W Peak
• H Dispersion : 135° (- 6 dB)
• V Dispersion : +10° / -25° (- 6 dB)
• Crossover : 80 - 100 Hz, Active
• Nominal Impedance : 8Ω
• Max Output: Cont 130 dB, Peak 136 dB
• 1 x NL-4 Speak-On Input & Thru
• 1 x Contact Connector for Cable-Free
Interconnection with Alpha Club Twelve S
SYSTEM SPECIFICATIONS
• Recommended Subwoofers : See Systems
Chart for compatible subwoofers
• Recommended System Control : Delta Drive
DSP Control Systems
• Recommended Amplifiers : See Amplifier
load calculation chart
LF TRANSDUCER
• 5" x 6 Low Frequency Delta Drive
• 100W AES, 400W Peak
• 1.7" Voice Coil - Ferrite Magnet
• Ventilated Voice Coils & Special air fans for
quick cooling
• Fortex™ Weather Resistant Cones
HF TRANSDUCER
• 1" x 3 Exit HF Compression Driver
• 50W AES, 200W Peak
• 1.75" Voice Coil - Ferrite Magnet
• Tilted Behind an asymmetric tilted
waveguide delivering a -25° tilt in the
vertical dispersion
HOUSING
• Marine Birchply Enclosure
• Granular Scratch Free Polyurea Paint
• Perforated Stainless Steel Grill backed by
acoustically transparent foam over a
stainless steel mesh
• Sloped Input Plates for better cble
management & ingress protection
• British Acoustics Signature Brown Paint
• M10 Flying inserts
• Half-Octagon Rigging Block to flfly multiple
units
• Integrated Handles for handling
AESTHETIC
SPECIFICATIONS
• British Acoustics Signature Umber Brown
Tone
• Blue Decals on Grills for better Aesthetics
• Available in a RAL code of your choice (24
nos, minimum)
IP SPECIFICATIONS
• Standard Version : IP 42 - Offers basic
protection against dust & splashes
OPERATING
PARAMETERS
• Operating positions: Can be deployed
horizontally or vertically with the correct
installation brackets or can be used as a
monitor
• Maximum permitted ambient temperature
(Ta max) 55° C (124° F)
• Minimum permitted ambient temperature
(Ta min): -20° C (-4° F)
SIZE
• Product: 1350 x 145 x 210 mm (H x W x D)
• Product: 53 x 5.7 x 8.2 inch (H x W x D)
• Packed individually
WEIGHT
• Net : 20 Kgs
• Net : 44 Lbs
SHIPPING INFORMATION
Carton Size
1475 x 220 x 210 mm (H x W x D)
58 x 8.6 x 11.2 inch (H x W x D)
• Gross Weight : 21 Kgs / 46.3 Lbs
• Packed : Individually
