MS101-4
- Category: ., All collection for the Instock, Fees products, Products, Reference Monitors, Studio Gear, Studio Monitor
- Order within

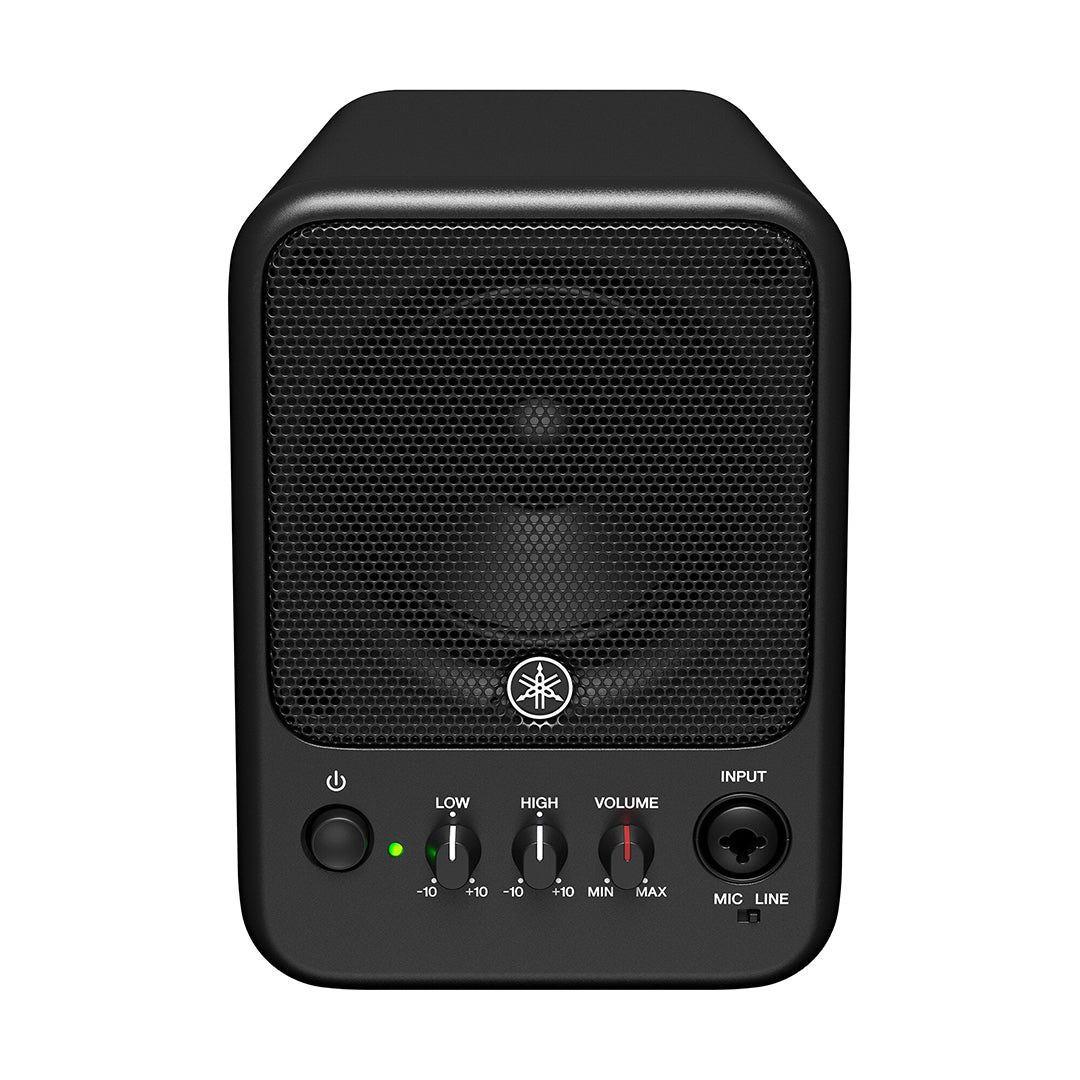

The standard model in our range of desktop utility powered monitors, the MS101-4 offers portability in a compact design and simple but comprehensive functions for outstanding usability.
- 30W of amplifier power provides clean, high output sound
- Redesigned enclosure for an even lower profile
- Combo Input jack accepts both XLR and 1/4" connectors
- Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)
| General specifications | Speaker type | Full range Powered Speaker, Bass-reflex Type | |
|---|---|---|---|
| Frequency range (-10dB) | 77 Hz–20 kHz | ||
| Maximum output level (1m; on axis) | 115 dB SPL *1 | ||
| Components | LF-HF | 4" Cone, 1" Voice coil, Ferrite magnet | |
| Dimensions | W | 142 mm | |
| H | 196 mm | ||
| D | 187 mm | ||
| Net weight | 2.1 kg (4.6 lbs) | ||
| Flying and mounting hardware | Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw) | ||
| Amplifier class | Class-D | ||
| Power rating | Dynamic | 30 W | |
| Continuous | 20 W | ||
| Cooling | Natural cooling (no fan) | ||
| I/O Connectors | Mic Input | [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS) | |
| Line Out | 1 x Phone (TRS) | ||
| AC | 1 x AC inlet | ||
| Input impedance | [Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ | ||
| Input sensitivity | [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum) | ||
| Input Level | [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level) | ||
| Others | Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER | ||
| Indicators | POWER (Green LED) | ||
| Power consumption | 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W | ||
| Power requirements | 100 V - 240 V, 50/60 Hz | ||
| Options | Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210 | ||
The standard model in our range of desktop utility powered monitors, the MS101-4 offers portability in a compact design and simple but comprehensive functions for outstanding usability.
- 30W of amplifier power provides clean, high output sound
- Redesigned enclosure for an even lower profile
- Combo Input jack accepts both XLR and 1/4" connectors
- Directly mountable on Euro microphone stands (Optional mic stand adaptor BMS-10A is available for adjusting tilt angle)
| General specifications | Speaker type | Full range Powered Speaker, Bass-reflex Type | |
|---|---|---|---|
| Frequency range (-10dB) | 77 Hz–20 kHz | ||
| Maximum output level (1m; on axis) | 115 dB SPL *1 | ||
| Components | LF-HF | 4" Cone, 1" Voice coil, Ferrite magnet | |
| Dimensions | W | 142 mm | |
| H | 196 mm | ||
| D | 187 mm | ||
| Net weight | 2.1 kg (4.6 lbs) | ||
| Flying and mounting hardware | Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw) | ||
| Amplifier class | Class-D | ||
| Power rating | Dynamic | 30 W | |
| Continuous | 20 W | ||
| Cooling | Natural cooling (no fan) | ||
| I/O Connectors | Mic Input | [Front] INPUT: Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS) | |
| Line Out | 1 x Phone (TRS) | ||
| AC | 1 x AC inlet | ||
| Input impedance | [Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ | ||
| Input sensitivity | [Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum) | ||
| Input Level | [Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level) | ||
| Others | Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER | ||
| Indicators | POWER (Green LED) | ||
| Power consumption | 1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W | ||
| Power requirements | 100 V - 240 V, 50/60 Hz | ||
| Options | Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210 | ||
