Faital Pro 10HP1020
Neodymium
Description

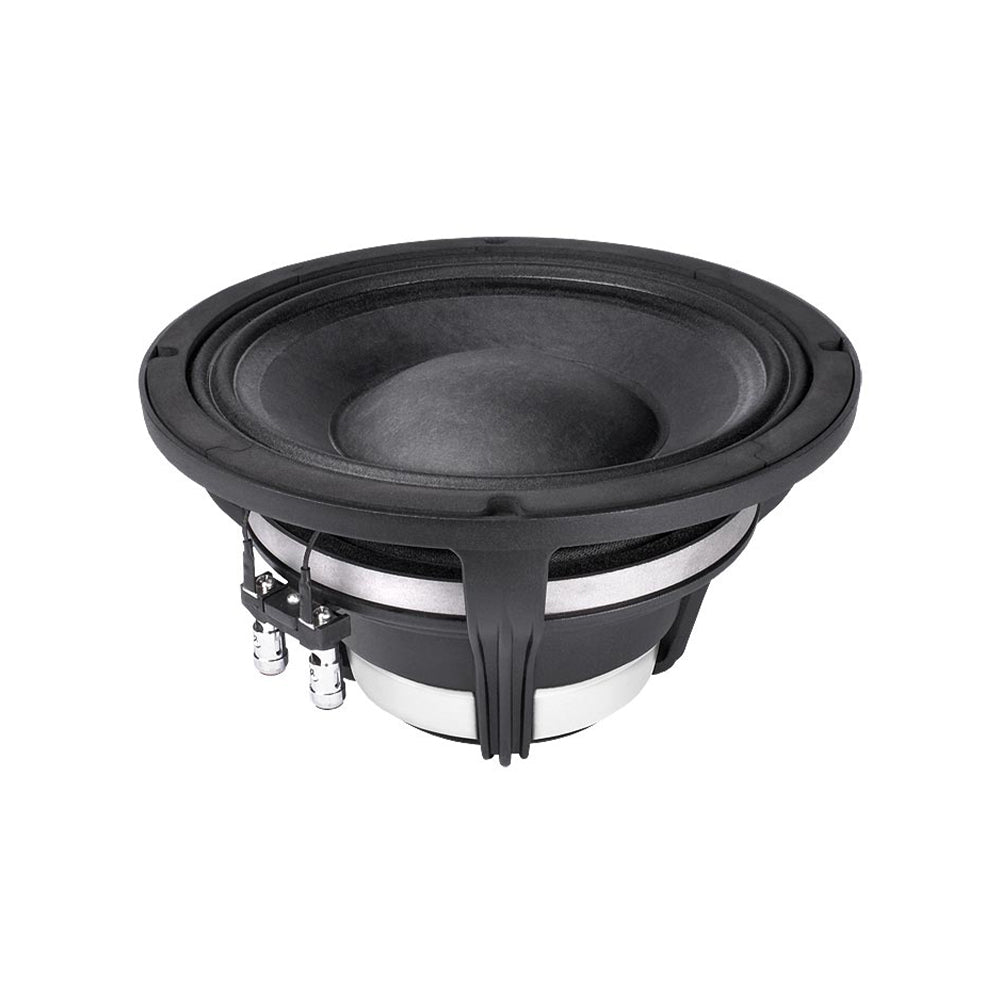

Faital Pro 10HP1020 is a 10 inch cone driver with a 100 mm voice coil and a neodymium magnet. The listing gives 700 W AES power and 96 dB sensitivity on 8 ohm, covering 60 Hz to 2.5 kHz. The net weight is 5.2 kg. The published parameters make comparison with other drivers easy. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 10" cone driver with Neodymium magnet
- Voice coil 100 mm (4")
- 700 W AES power on 8 ohm
- Sensitivity 96 dB (1 W / 1 m)
- Frequency range 60 Hz - 2.5 kHz
- Net weight 5.2 kg
Specifications
| Woofer | 10" |
|---|
| Power (RMS) | 700 W |
|---|
| Frequency range | 60 Hz - 2.5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 96 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 5.2 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
250 mm (10 in) |
| Overall Diameter |
261 mm (10.28 in) |
| Bolt Circle Diameter |
246 mm (9.69 in) |
| Baffle Cutout Diameter |
232 mm (9.13 in) |
| Depth |
141.3 mm (5.56 in) |
| Flange and Gasket Thickness |
12.5 mm (0.49 in) |
| Net Weight |
5.2 kg (11.5 lb) |
Shipping Box
(Single Carton Box) |
294 x 290 x 203 mm
(11.6 x 11.4 x 8.0 in) |
| Shipping Weight |
5.8 kg (12.8 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
7.3 Ohm |
| AES Power Handling (1)
|
700 W |
| Maximum Power Handling (2)
|
1400 W |
| Sensitivity (1W/1m) |
96 dB |
| Frequency Range |
60÷2500 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
22 mm (0.87 in) |
| Magnetic Gap Depth |
12 mm (0.47 in) |
| Flux Density |
1.3 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
M-Roll |
| NET Air Volume filled by Loudspeaker |
2.2 dm^3 (0.078 ft^3) |
| Spider Profile |
2x non-adjacent symmetrical constant height waves |
|
Thiele and small parameters
| Fs |
60 Hz |
| Re |
5.5 Ohm |
| Qes |
0.25 |
| Qms |
6.5 |
| Qts |
0.24 |
| Vas |
16.1 dm^3 (0.57 ft^3) |
| Sd |
345 cm^2 (53.48 in^2) |
| Xmax (4)
|
9.00 mm |
| Xdamage (5)
|
18.2 mm |
| Mms |
72.5 g |
| Bl |
24.5 N/A |
| Le |
0.85 mH |
| Mmd |
65.3 g |
| Cms |
0.10 mm/N |
| Rms |
4.2 kg/s |
| Eta Zero |
1.35 % |
| EBP |
240 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
02503939 |
| Recone Kit - 8 Ohm Version |
R2503939 |
Notes:
| PATENTED IT 2006/000327 |
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
