Faital Pro 10HX240
Neodymium
Description

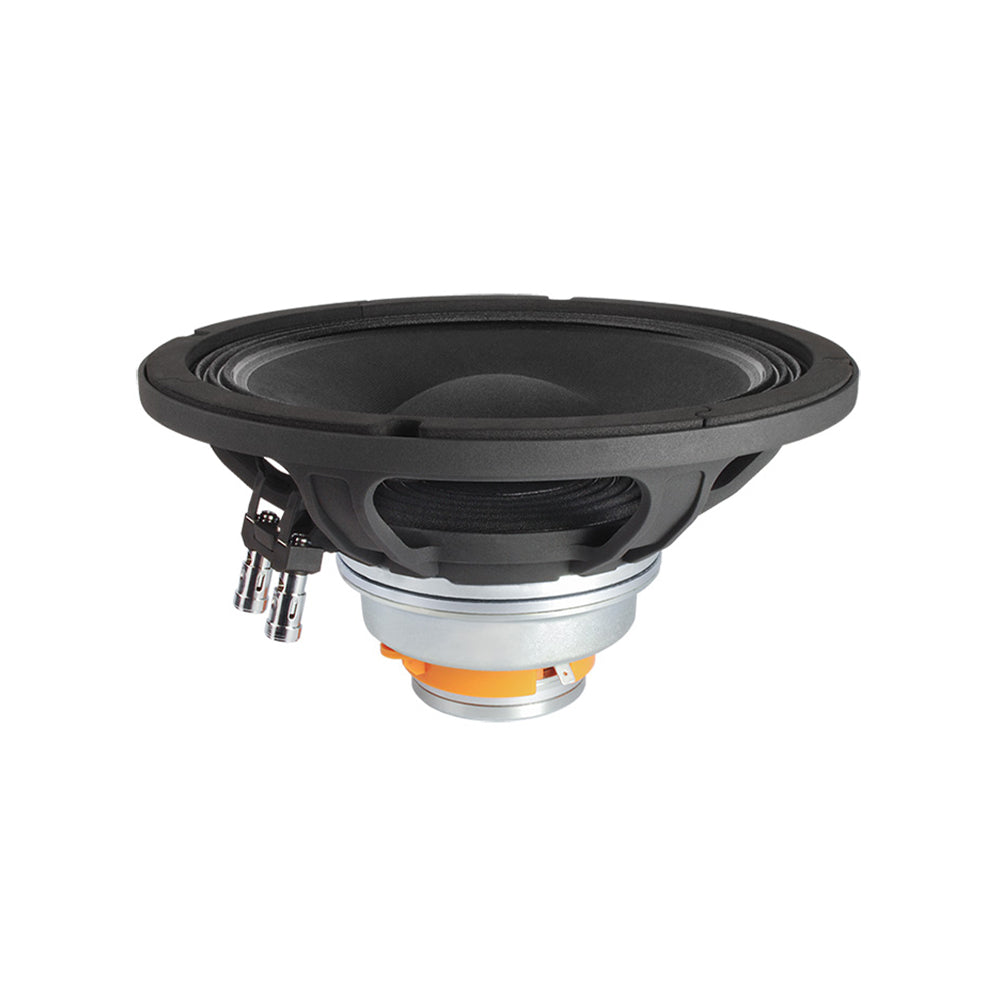

Faital Pro 10HX240 is a 10 inch coaxial driver with an annular high frequency section. The low section is rated at 250 W AES over 65 Hz to 4 kHz, and the high section at 30 W AES over 1.5 kHz to 20 kHz. The listing shows a 110 degree high frequency dispersion and 8 ohm nominal impedance. Available from VMT with a GST invoice and delivery across India.
Key features
- LF cone 10 inch, 65 mm voice coil, neodymium ring magnet
- HF section 37 mm voice coil, ketone polymer annular diaphragm
- LF AES 250 W, maximum 500 W; HF AES 30 W, maximum 60 W
- HF dispersion 110 degrees, minimum crossover 1.7 kHz
- Net weight 4.1 kg
Specifications
| Driver type | Coaxial driver |
|---|
| Woofer | 10" |
|---|
| Frequency range | 65 Hz - 4000 Hz (LF), 1500 Hz - 20 kHz (HF) |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 96 dB LF / 107 dB HF (1 W / 1 m) |
|---|
| Voice coil | 65 mm LF / 37 mm HF |
|---|
| Magnet | Neodymium (LF and HF) |
|---|
| Weight | 4.1 kg |
|---|
Manufacturer description
Nominal Specifications
| Nom. Diameter |
250 mm (10 in) |
| Overall Diameter |
261 mm (10.28 in) |
| Bolt Circle Diameter |
246 mm (9.69 in) |
| Baffle Cutout Diameter |
230 mm (9.06 in) |
| Depth |
137 mm (5.39 in) |
| Flange and Gasket Thickness |
12 mm (0.47 in) |
| Net Weight |
4.1 kg (9.0 lb) |
Shipping Box
(Single Carton Box) |
282 x 280 x 140 mm
(11.1 x 11 x 5.5 in) |
| Shipping Weight |
4.5 kg (9.9 lb) |
| Technical Parameters |
{ LF } |
{ HF } |
| Nom. Impedance |
8 Ohm |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
6.8 Ohm |
| AES Power Handling (1)
|
250 W |
30 W |
| Max Power Handling (2)
|
500 W |
60 W |
| Sensitivity (1W/1m) (3)
|
96 dB |
107 dB |
| Frequency Range |
65÷4000 Hz |
1500÷20000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
37 mm (1.46 in) |
| Winding Material |
Al |
Al |
| Former Material |
Glass Fiber |
Kapton |
| Winding Depth |
17.4 mm (0.69 in) |
2.1 mm (0.08 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
2.6 mm (0.10 in) |
| Flux Density |
1.25 T |
1.85 T |
| Min. Cross. Freq. (4)
|
- |
1.7 kHz |
| Dispersion Angle |
- |
110° |
| Diaphragm Material |
- |
Ketone Polymer |
| Diaphragm Shape |
- |
Annular |
| Magnet |
Neodymium Ring |
Neodymium Ring |
| Basket Material |
Aluminum |
- |
| Demodulation |
Aluminum Ring |
- |
| Cone Surround (5)
|
Triple Roll |
- |
| NET Air Volume filled by Loudspeaker |
1.25 dm^3 (0.044 ft^3) |
- |
| Spider Profile |
1x variable height waves |
- |
|
Thiele and small parameters { LF }
| Fs |
65 Hz |
| Re [LF] |
5.3 Ohm |
| Re [HF] |
5.5 Ohm |
| Qes |
0.3 |
| Qms |
3.3 |
| Qts |
0.28 |
| Vas |
31.8 dm^3 (1.12 ft^3) |
| Sd |
347 cm^2 (53.71 in^2) |
| Xmax (6)
|
7.37 mm |
| Xdamage (7)
|
14.8 mm |
| Mms |
31.6 g |
| Bl |
15.5 N/A |
| Le |
0.45 mH |
| Mmd |
24.3 g |
| Cms |
0.19 mm/N |
| Rms |
3.9 kg/s |
| Eta Zero |
2.98 % |
| EBP |
217 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
02504347 |
| Recone Kit LF - 8 Ohm Version |
R2504277 |
| Recone Kit HF - 8 Ohm Version |
R0374049 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) HF Sensitivity averaged within the frequency range |
|
(4) 12 dB/oct or higher slope high-pass filter |
|
(5) Treated Polycotton |
|
(6) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(7) Maximum excursion before permanent damage |
|
