Faital Pro 12FH500
Neodymium
Description

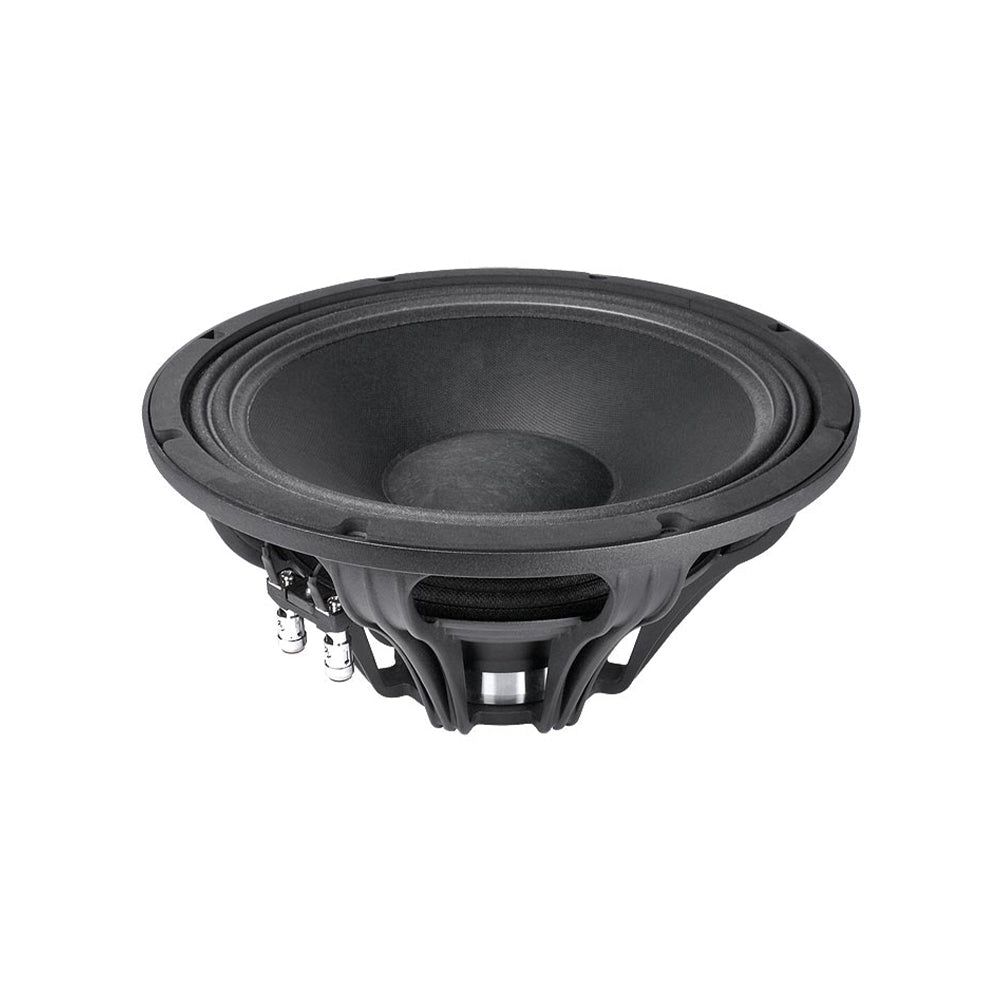

Faital Pro 12FH500 is a 12 inch cone driver with a 77 mm voice coil and a neodymium magnet. The listing gives 500 W AES power and 97 dB sensitivity on 8 ohm, covering 45 Hz to 4 kHz. The net weight is 3.9 kg. The published parameters make comparison with other drivers easy. VMT ships it across India with a GST invoice.
Key features
- 12" cone driver with Neodymium magnet
- Voice coil 77 mm (3")
- 500 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 45 Hz - 4 kHz
- Net weight 3.9 kg
Specifications
| Woofer | 12" |
|---|
| Power (RMS) | 500 W |
|---|
| Frequency range | 45 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 3.9 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
300 mm (12 in) |
| Overall Diameter |
316 mm (12.44 in) |
| Bolt Circle Diameter |
298.5 mm (11.75 in) |
| Baffle Cutout Diameter |
284 mm (11.18 in) |
| Depth |
155.75 mm (6.13 in) |
| Flange and Gasket Thickness |
12.45 mm (0.49 in) |
| Net Weight |
3.9 kg (8.6 lb) |
Shipping Box
(Single Carton Box) |
350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in) |
| Shipping Weight |
5 kg (11.0 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
| AES Power Handling (1)
|
500 W |
| Maximum Power Handling (2)
|
1000 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
45÷4000 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
18.5 mm (0.73 in) |
| Magnetic Gap Depth |
10.5 mm (0.41 in) |
| Flux Density |
1.2 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
M-Roll |
| NET Air Volume filled by Loudspeaker |
2.3 dm^3 (0.081 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
45 Hz |
| Re |
5.1 Ohm |
| Qes |
0.26 |
| Qms |
6.9 |
| Qts |
0.25 |
| Vas |
87.3 dm^3 (3.08 ft^3) |
| Sd |
529 cm^2 (82.00 in^2) |
| Xmax (4)
|
7.50 mm |
| Xdamage (5)
|
21.55 mm |
| Mms |
56.0 g |
| Bl |
17.5 N/A |
| Le |
0.83 mH |
| Mmd |
42.2 g |
| Cms |
0.22 mm/N |
| Rms |
2.3 kg/s |
| Eta Zero |
2.93 % |
| EBP |
173 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03003925 |
| Recone Kit - 8 Ohm Version |
R3003925 |
Notes:
| PATENTED IT 2006/000327 |
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
