Faital Pro 12HP1020
Neodymium
Description

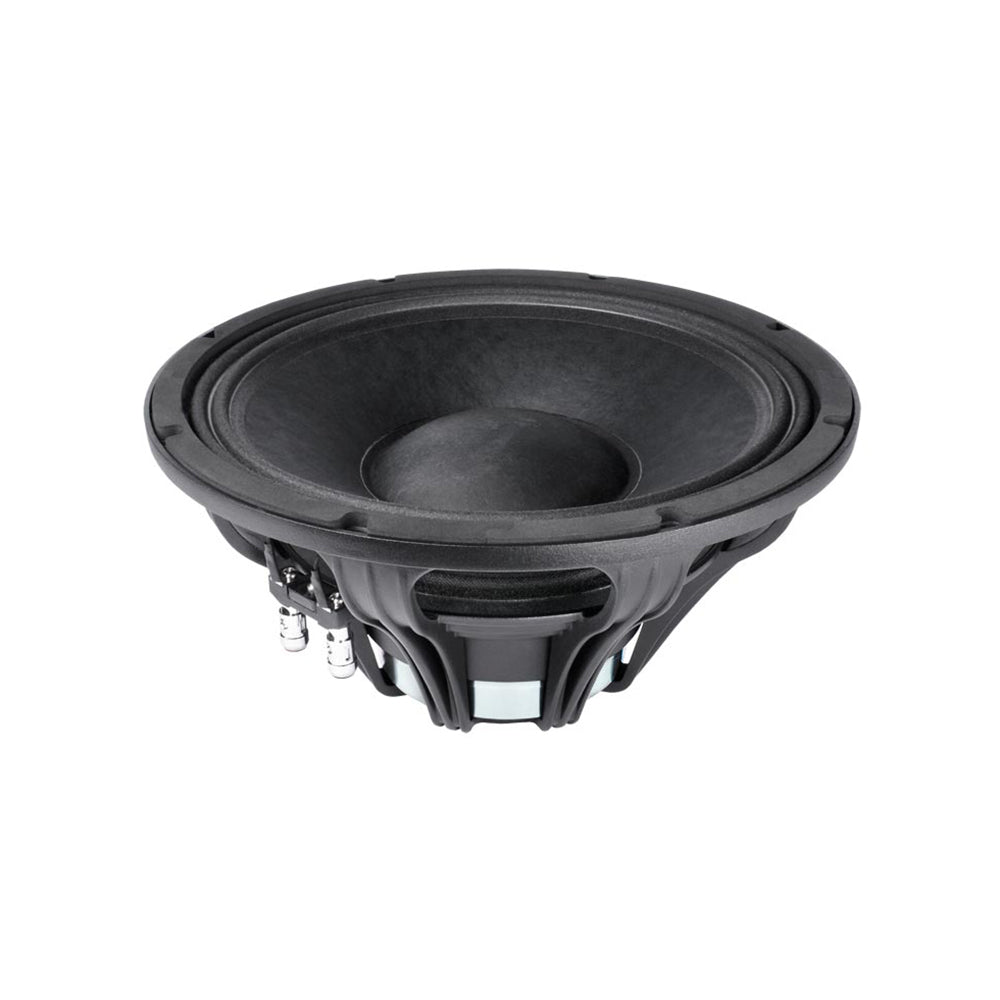

Faital Pro 12HP1020 is a 12 inch cone driver with a 100 mm voice coil and a neodymium magnet. The listing gives 700 W AES power and 97 dB sensitivity on 8 ohm, covering 55 Hz to 3.15 kHz. The net weight is 5.8 kg. A practical choice for repairs and new cabinet builds. VMT ships it across India with a GST invoice.
Key features
- 12" cone driver with Neodymium magnet
- Voice coil 100 mm (4")
- 700 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 55 Hz - 3.15 kHz
- Net weight 5.8 kg
Specifications
| Woofer | 12" |
|---|
| Power (RMS) | 700 W |
|---|
| Frequency range | 55 Hz - 3.15 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 100 mm (4") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 5.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
300 mm (12 in) |
| Overall Diameter |
316 mm (12.44 in) |
| Bolt Circle Diameter |
298.5 mm (11.75 in) |
| Baffle Cutout Diameter |
284 mm (11.18 in) |
| Depth |
155.75 mm (6.13 in) |
| Flange and Gasket Thickness |
12.45 mm (0.49 in) |
| Net Weight |
5.8 kg (12.8 lb) |
Shipping Box
(Single Carton Box) |
350 x 346 x 216 mm
(13.8 x 13.6 x 8.5 in) |
| Shipping Weight |
6.5 kg (14.3 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
7.1 Ohm |
| AES Power Handling (1)
|
700 W |
| Maximum Power Handling (2)
|
1400 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
55÷3150 Hz |
| Voice Coil Diameter |
100 mm (4 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
22 mm (0.87 in) |
| Magnetic Gap Depth |
12 mm (0.47 in) |
| Flux Density |
1.3 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
M-Roll |
| NET Air Volume filled by Loudspeaker |
2.8 dm^3 (0.099 ft^3) |
| Spider Profile |
2x non-adjacent symmetrical constant height waves |
|
Thiele and small parameters
| Fs |
55 Hz |
| Re |
5.5 Ohm |
| Qes |
0.28 |
| Qms |
9.4 |
| Qts |
0.27 |
| Vas |
38.6 dm^3 (1.36 ft^3) |
| Sd |
533 cm^2 (82.62 in^2) |
| Xmax (4)
|
9.00 mm |
| Xdamage (5)
|
16 mm |
| Mms |
86.0 g |
| Bl |
24.3 N/A |
| Le |
1.1 mH |
| Mmd |
72.1 g |
| Cms |
0.10 mm/N |
| Rms |
3.2 kg/s |
| Eta Zero |
2.25 % |
| EBP |
196 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03003940 |
| Recone Kit - 8 Ohm Version |
R3003940 |
Notes:
| PATENTED IT 2006/000327 |
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
