Faital Pro 12PR320
Neodymium
Description

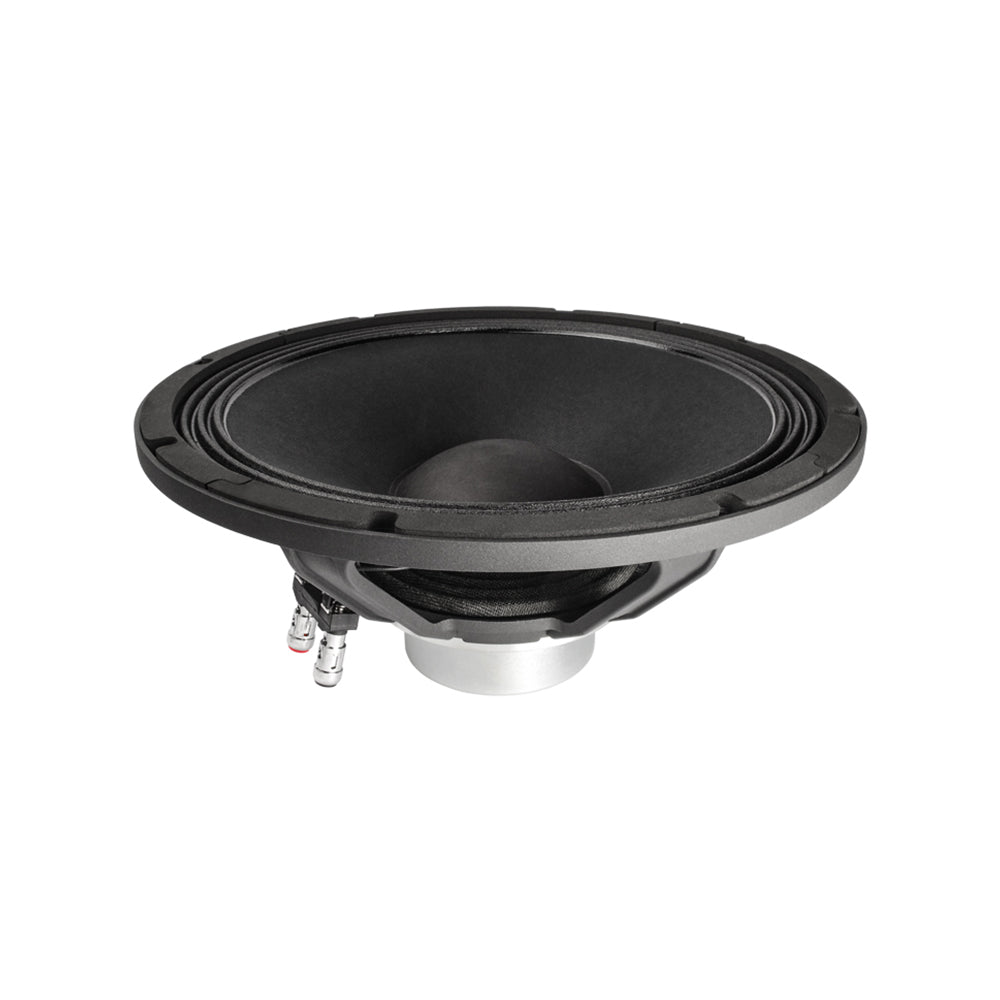

Faital Pro 12PR320 is a 12 inch cone driver with a 65 mm voice coil and a neodymium magnet. The listing gives 300 W AES power and 97 dB sensitivity on 8 ohm, covering 45 Hz to 5 kHz. The net weight is 2.75 kg. Builders can check the Thiele and Small figures before choosing a box. Order it from VMT with GST billing and delivery across India.
Key features
- 12" cone driver with Neodymium magnet
- Voice coil 65 mm (2.56")
- 300 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 45 Hz - 5 kHz
- Net weight 2.75 kg
Specifications
| Woofer | 12" |
|---|
| Power (RMS) | 300 W |
|---|
| Frequency range | 45 Hz - 5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 65 mm (2.56") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 2.75 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
300 mm (12 in) |
| Overall Diameter |
316 mm (12.44 in) |
| Bolt Circle Diameter |
298.5 mm (11.75 in) |
| Baffle Cutout Diameter |
282 mm (11.10 in) |
| Depth |
135 mm (5.31 in) |
| Flange and Gasket Thickness |
12 mm (0.47 in) |
| Net Weight |
2.75 kg (6.1 lb) |
Shipping Box
(Single Carton Box) |
350 x 346 x 190 mm
(13.8 x 13.6 x 7.5 in) |
| Shipping Weight |
3.4 kg (7.5 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
| AES Power Handling (1)
|
300 W |
| Maximum Power Handling (2)
|
600 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
45÷5000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
17.4 mm (0.69 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
| Flux Density |
1.2 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
1.9 dm^3 (0.067 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
42 Hz |
| Re |
5.3 Ohm |
| Qes |
0.39 |
| Qms |
7.8 |
| Qts |
0.37 |
| Vas |
113.3 dm^3 (4.00 ft^3) |
| Sd |
539 cm^2 (83.55 in^2) |
| Xmax (4)
|
7.37 mm |
| Xdamage (5)
|
17 mm |
| Mms |
51.4 g |
| Bl |
13.5 N/A |
| Le |
0.67 mH |
| Mmd |
37.3 g |
| Cms |
0.28 mm/N |
| Rms |
1.7 kg/s |
| Eta Zero |
2.06 % |
| EBP |
108 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03004279 |
| Recone Kit - 8 Ohm Version |
R3004279 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
