Faital Pro 15FH500
Neodymium
Description

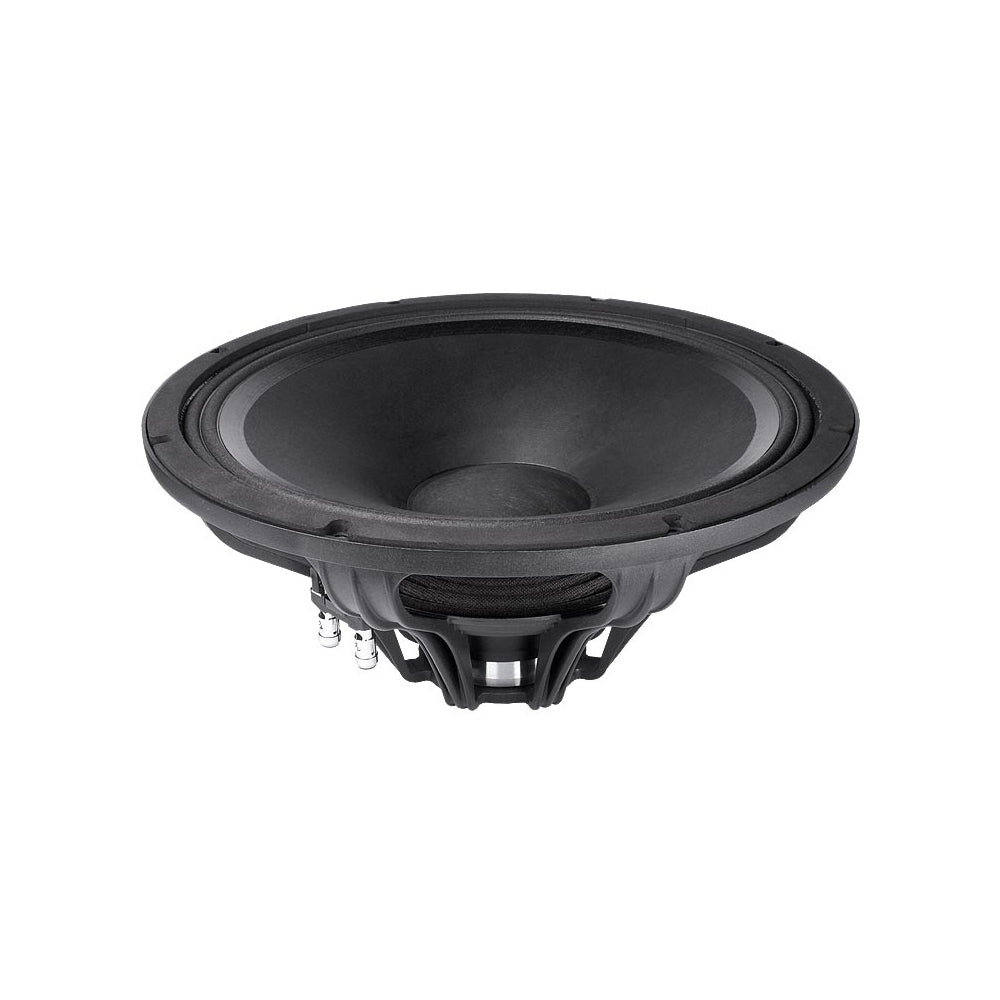

Faital Pro 15FH500 is a 15 inch cone driver with a 77 mm voice coil and a neodymium magnet. The listing gives 500 W AES power and 98 dB sensitivity on 8 ohm, covering 35 Hz to 3.15 kHz. The net weight is 4.3 kg. The published parameters make comparison with other drivers easy. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 15" cone driver with Neodymium magnet
- Voice coil 77 mm (3")
- 500 W AES power on 8 ohm
- Sensitivity 98 dB (1 W / 1 m)
- Frequency range 35 Hz - 3.15 kHz
- Net weight 4.3 kg
Specifications
| Woofer | 15" |
|---|
| Power (RMS) | 500 W |
|---|
| Frequency range | 35 Hz - 3.15 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 98 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 4.3 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
356 mm (14.02 in) |
| Depth |
181.3 mm (7.14 in) |
| Flange and Gasket Thickness |
13.7 mm (0.54 in) |
| Net Weight |
4.3 kg (9.5 lb) |
Shipping Box
(Single Carton Box) |
430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in) |
| Shipping Weight |
5.4 kg (11.9 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6 Ohm |
| AES Power Handling (1)
|
500 W |
| Maximum Power Handling (2)
|
1000 W |
| Sensitivity (1W/1m) |
98 dB |
| Frequency Range |
35÷3150 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
22 mm (0.87 in) |
| Magnetic Gap Depth |
10.5 mm (0.41 in) |
| Flux Density |
1.2 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
M-Roll |
| NET Air Volume filled by Loudspeaker |
3.4 dm^3 (0.120 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
35 Hz |
| Re |
5.1 Ohm |
| Qes |
0.32 |
| Qms |
10.4 |
| Qts |
0.31 |
| Vas |
199.2 dm^3 (7.03 ft^3) |
| Sd |
847 cm^2 (131.29 in^2) |
| Xmax (4)
|
9.25 mm |
| Xdamage (5)
|
16 mm |
| Mms |
104.0 g |
| Bl |
19.2 N/A |
| Le |
1.3 mH |
| Mmd |
76.1 g |
| Cms |
0.20 mm/N |
| Rms |
2.2 kg/s |
| Eta Zero |
2.62 % |
| EBP |
109 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03803926 |
| Recone Kit - 8 Ohm Version |
R3803926 |
Notes:
| PATENTED IT 2006/000327 |
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
