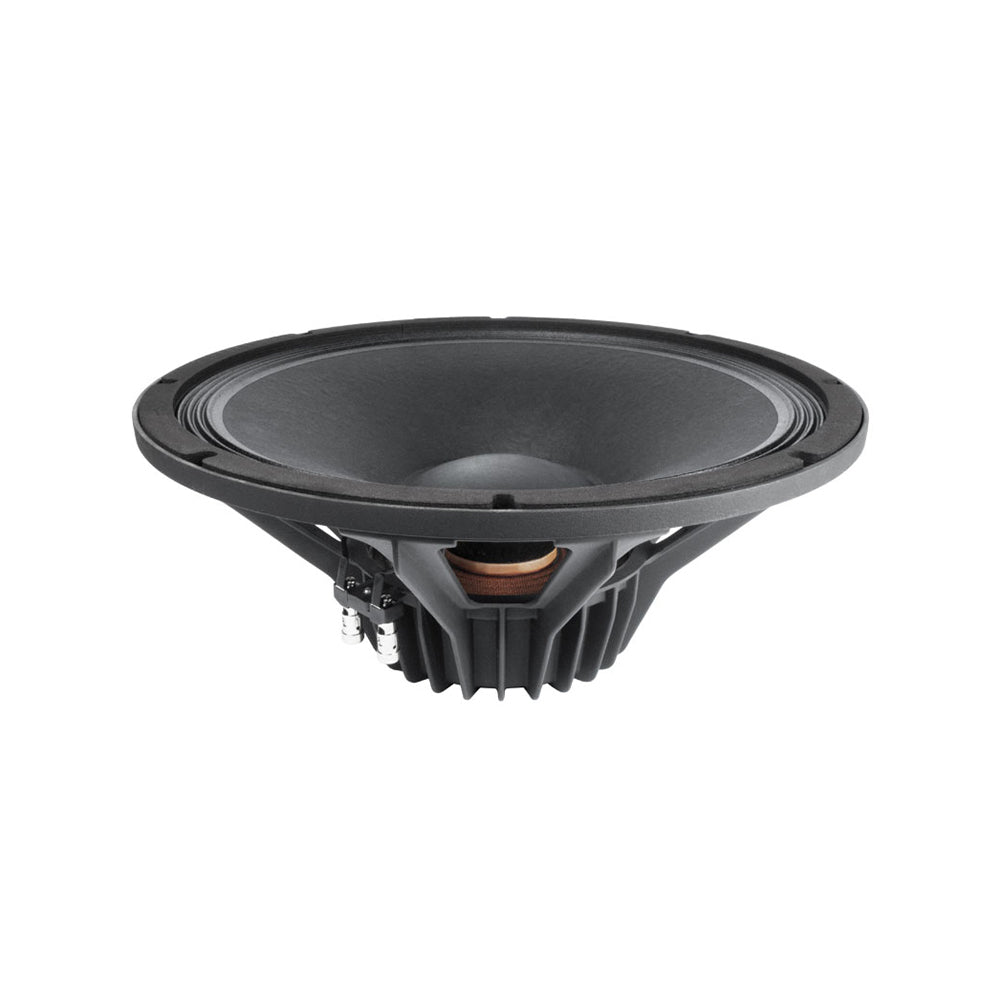

Faital Pro 15PR300
Neodymium
Description
Faital Pro 15PR300 is a 15 inch cone driver with a 65 mm voice coil and a neodymium magnet. The listing gives 300 W AES power and 97 dB sensitivity on 8 ohm, covering 35 Hz to 4 kHz. The net weight is 3.2 kg. Builders can check the Thiele and Small figures before choosing a box. Available from VMT with a GST invoice, shipped across India.
Key features
- 15" cone driver with Neodymium magnet
- Voice coil 65 mm (2.56")
- 300 W AES power on 8 ohm
- Sensitivity 97 dB (1 W / 1 m)
- Frequency range 35 Hz - 4 kHz
- Net weight 3.2 kg
Specifications
| Woofer | 15" |
|---|
| Power (RMS) | 300 W |
|---|
| Frequency range | 35 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 97 dB (1 W / 1 m) |
|---|
| Voice coil | 65 mm (2.56") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 3.2 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
380 mm (15 in) |
| Overall Diameter |
393 mm (15.47 in) |
| Bolt Circle Diameter |
374 mm (14.72 in) |
| Baffle Cutout Diameter |
356 mm (14.02 in) |
| Depth |
165 mm (6.50 in) |
| Flange and Gasket Thickness |
13.1 mm (0.52 in) |
| Net Weight |
3.2 kg (7.1 lb) |
Shipping Box
(Single Carton Box) |
430 x 427 x 236 mm
(16.9 x 16.8 x 9.3 in) |
| Shipping Weight |
4.3 kg (9.5 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6 Ohm |
| AES Power Handling (1)
|
300 W |
| Maximum Power Handling (2)
|
600 W |
| Sensitivity (1W/1m) |
97 dB |
| Frequency Range |
35÷4000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
13.2 mm (0.52 in) |
| Magnetic Gap Depth |
8.2 mm (0.32 in) |
| Flux Density |
1.2 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Accordion (4 waves) |
| NET Air Volume filled by Loudspeaker |
3 dm^3 (0.106 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
35 Hz |
| Re |
5.4 Ohm |
| Qes |
0.5 |
| Qms |
14.0 |
| Qts |
0.48 |
| Vas |
220.1 dm^3 (7.77 ft^3) |
| Sd |
870 cm^2 (134.79 in^2) |
| Xmax (4)
|
5.23 mm |
| Xdamage (5)
|
12.3 mm |
| Mms |
99.2 g |
| Bl |
15.6 N/A |
| Le |
0.89 mH |
| Mmd |
70.2 g |
| Cms |
0.21 mm/N |
| Rms |
1.6 kg/s |
| Eta Zero |
1.89 % |
| EBP |
70 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
03804397 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
