Faital Pro 18FH510
Ferrite
Description

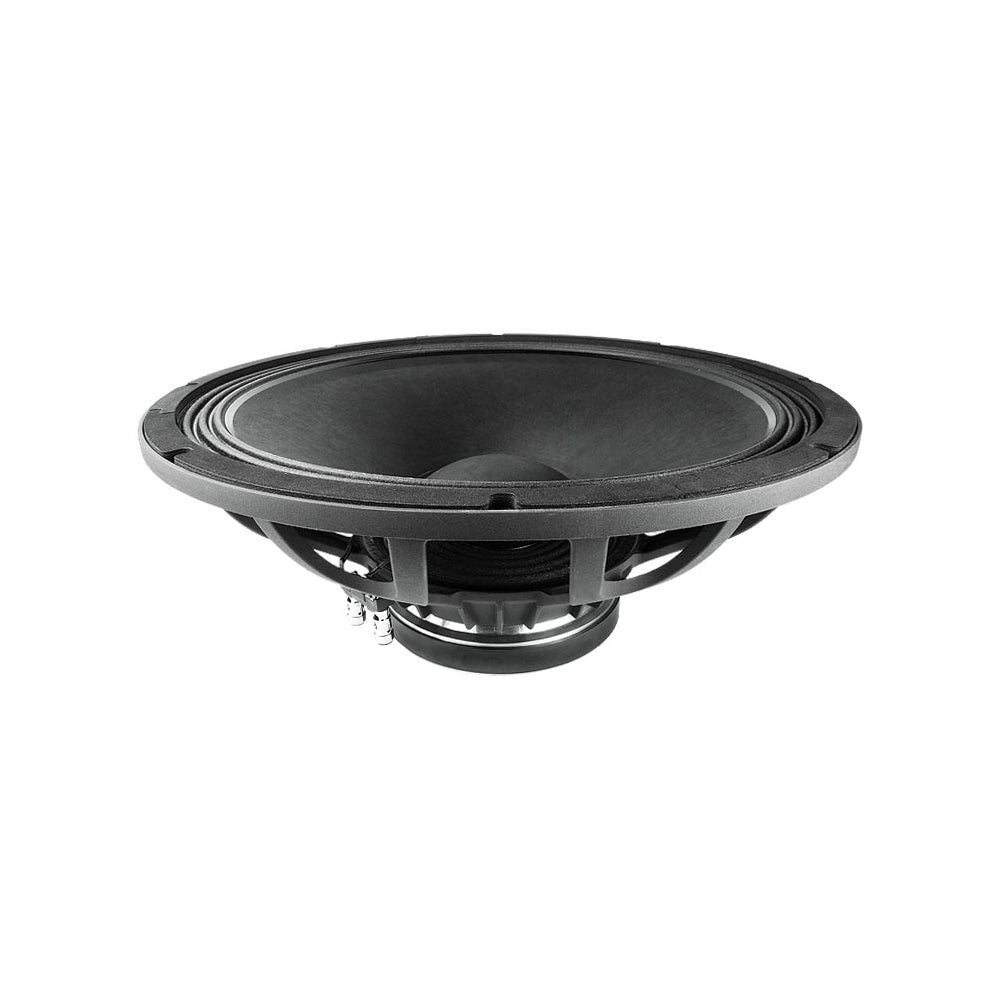

Faital Pro 18FH510 is a 18 inch cone driver with a 77 mm voice coil and a ferrite magnet. The listing gives 600 W AES power and 98 dB sensitivity on 8 ohm, covering 30 Hz to 2.5 kHz. The net weight is 8.8 kg. Useful for PA and monitor builds that need the listed bandwidth. Purchase through VMT with a GST invoice and delivery across India.
Key features
- 18" cone driver with Ferrite magnet
- Voice coil 77 mm (3")
- 600 W AES power on 8 ohm
- Sensitivity 98 dB (1 W / 1 m)
- Frequency range 30 Hz - 2.5 kHz
- Net weight 8.8 kg
Specifications
| Woofer | 18" |
|---|
| Power (RMS) | 600 W |
|---|
| Frequency range | 30 Hz - 2.5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 98 dB (1 W / 1 m) |
|---|
| Voice coil | 77 mm (3") |
|---|
| Magnet | Ferrite |
|---|
| Weight | 8.8 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
460 mm (18 in) |
| Overall Diameter |
460 mm (18.11 in) |
| Bolt Circle Diameter |
440 mm (17.32 in) |
| Baffle Cutout Diameter |
421 mm (16.57 in) |
| Depth |
201.5 mm (7.93 in) |
| Flange and Gasket Thickness |
13.7 mm (0.54 in) |
| Net Weight |
8.8 kg (19.3 lb) |
Shipping Box
(Single Carton Box) |
503 x 500 x 258 mm
(19.8 x 19.7 x 10.2 in) |
| Shipping Weight |
10.3 kg (22.7 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.5 Ohm |
| AES Power Handling (1)
|
600 W |
| Maximum Power Handling (2)
|
1200 W |
| Sensitivity (1W/1m) |
98 dB |
| Frequency Range |
30÷2500 Hz |
| Voice Coil Diameter |
77 mm (3 in) |
| Winding Material |
Cu |
| Former Material |
Glass Fiber |
| Winding Depth |
22 mm (0.87 in) |
| Magnetic Gap Depth |
10.5 mm (0.41 in) |
| Flux Density |
1.2 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
6.1 dm^3 (0.215 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
30 Hz |
| Re |
5.1 Ohm |
| Qes |
0.30 |
| Qms |
13.6 |
| Qts |
0.29 |
| Vas |
411.9 dm^3 (14.55 ft^3) |
| Sd |
1207 cm^2 (187.09 in^2) |
| Xmax (4)
|
9.25 mm |
| Xdamage (5)
|
21 mm |
| Mms |
139.0 g |
| Bl |
21 N/A |
| Le |
1.06 mH |
| Mmd |
91.6 g |
| Cms |
0.20 mm/N |
| Rms |
1.9 kg/s |
| Eta Zero |
3.56 % |
| EBP |
100 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
04604080 |
| Recone Kit - 8 Ohm Version |
R4604080 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
