Faital Pro 5HX220
Neodymium
Description

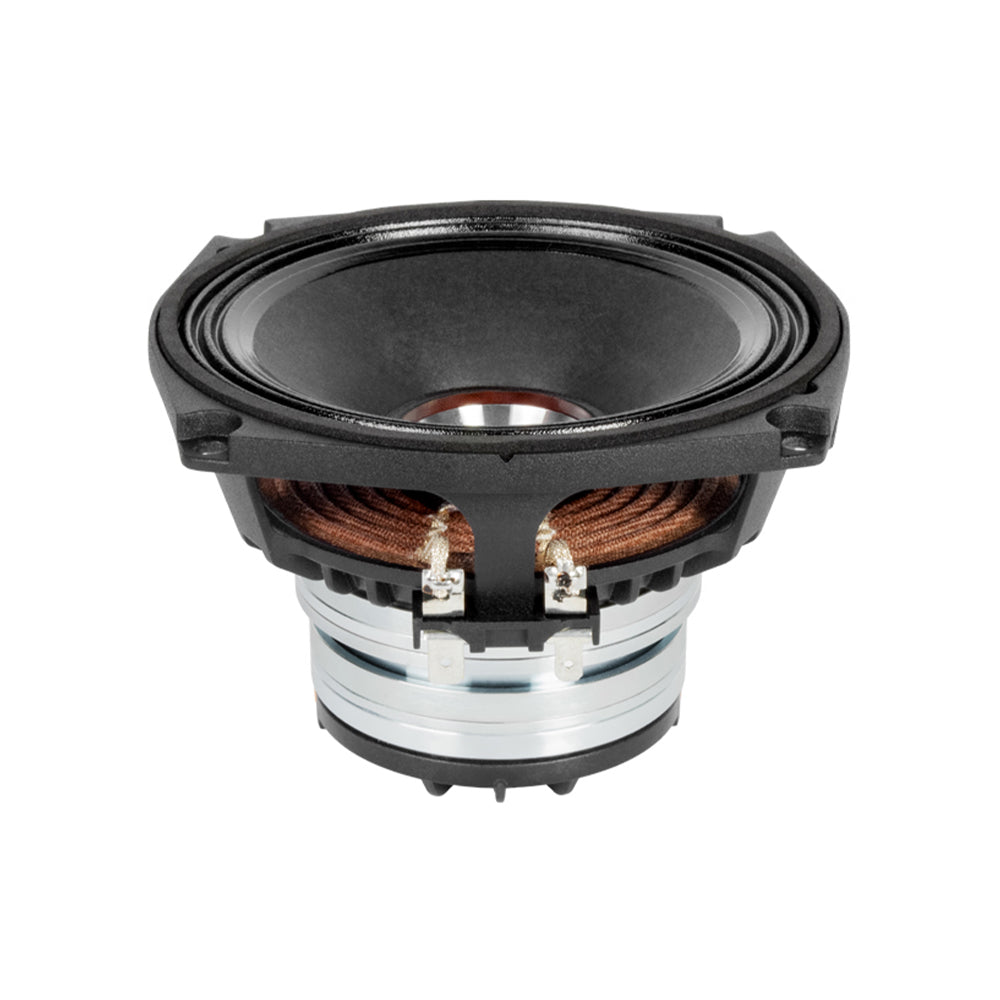

Faital Pro 5HX220 is a 5 inch coaxial driver with a 37 mm voice coil on each section. The low section is rated at 150 W AES over 125 Hz to 5 kHz, and the high section at 30 W AES over 1.7 kHz to 20 kHz. The listing gives 80 degree high frequency dispersion and 8 ohm nominal impedance. Order from VMT with GST billing and delivery across India.
Key features
- LF cone 5 inch, 37 mm voice coil, neodymium ring magnet
- HF section 37 mm voice coil, ketone polymer dome, 80 degree dispersion
- LF AES 150 W, maximum 300 W; HF AES 30 W, maximum 60 W
- Minimum crossover 1.7 kHz
- Net weight 1.04 kg
Specifications
| Driver type | Coaxial driver |
|---|
| Woofer | 5" |
|---|
| Frequency range | 125 Hz - 5000 Hz (LF), 1700 Hz - 20 kHz (HF) |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 91 dB LF / 104 dB HF (1 W / 1 m) |
|---|
| Voice coil | 37 mm LF / 37 mm HF |
|---|
| Magnet | Neodymium (LF and HF) |
|---|
| Weight | 1.04 kg |
|---|
Manufacturer description
Nominal Specifications
| Nom. Diameter |
130 mm (5 in) |
| Overall Diameter |
150/128.2 mm (5.91/5.05 in) |
| Bolt Circle Diameter |
139 mm (5.47 in) |
| Baffle Cutout Diameter |
118 mm (4.65 in) |
| Depth |
90 mm (3.54 in) |
| Flange and Gasket Thickness |
9 mm (0.35 in) |
| Net Weight |
1.04 kg (2.3 lb) |
Shipping Box
(Single Carton Box) |
185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in) |
| Shipping Weight |
1.2 kg (2.6 lb) |
| Technical Parameters |
{ LF } |
{ HF } |
| Nom. Impedance |
8 Ohm |
8 Ohm |
| Minimum Impedance |
6.4 Ohm |
7 Ohm |
| AES Power Handling (1)
|
150 W |
30 W |
| Max Power Handling (2)
|
300 W |
60 W |
| Sensitivity (1W/1m) (3)
|
91 dB |
104 dB |
| Frequency Range |
125÷5000 Hz |
1700÷20000 Hz |
| Voice Coil Diameter |
37 mm (1.46 in) |
37 mm (1.46 in) |
| Winding Material |
Al |
Al |
| Former Material |
Glass Fiber |
Kapton |
| Winding Depth |
10.8 mm (0.43 in) |
2.3 mm (0.09 in) |
| Magnetic Gap Depth |
5 mm (0.20 in) |
2.6 mm (0.10 in) |
| Flux Density |
1.1 T |
1.6 T |
| Min. Cross. Freq. (4)
|
- |
1.7 kHz |
| Dispersion Angle |
- |
80° |
| Diaphragm Material |
- |
Ketone Polymer |
| Diaphragm Shape |
- |
Dome |
| Magnet |
Neodymium Ring |
Neodymium Ring |
| Basket Material |
Aluminum |
- |
| Demodulation |
Aluminum Ring |
- |
| Cone Surround (5)
|
Triple Roll |
- |
| NET Air Volume filled by Loudspeaker |
0.3 dm^3 (0.011 ft^3) |
- |
| Spider Profile |
1x constant height waves |
- |
|
Thiele and small parameters { LF }
| Fs |
135 Hz |
| Re [LF] |
5.8 Ohm |
| Re [HF] |
5.5 Ohm |
| Qes |
0.63 |
| Qms |
10.2 |
| Qts |
0.59 |
| Vas |
2.2 dm^3 (0.08 ft^3) |
| Sd |
90.6 cm^2 (14.04 in^2) |
| Xmax (6)
|
4.57 mm |
| Xdamage (7)
|
8 mm |
| Mms |
7.3 g |
| Bl |
7.7 N/A |
| Le |
0.2 mH |
| Mmd |
6.3 g |
| Cms |
0.19 mm/N |
| Rms |
0.6 kg/s |
| Eta Zero |
0.86 % |
| EBP |
214 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
01304454 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) HF Sensitivity averaged within the frequency range |
|
(4) 12 dB/oct or higher slope high-pass filter |
|
(5) Treated Polycotton |
|
(6) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(7) Maximum excursion before permanent damage |
|
