Faital Pro 5PR120
Speaker Spares
Description

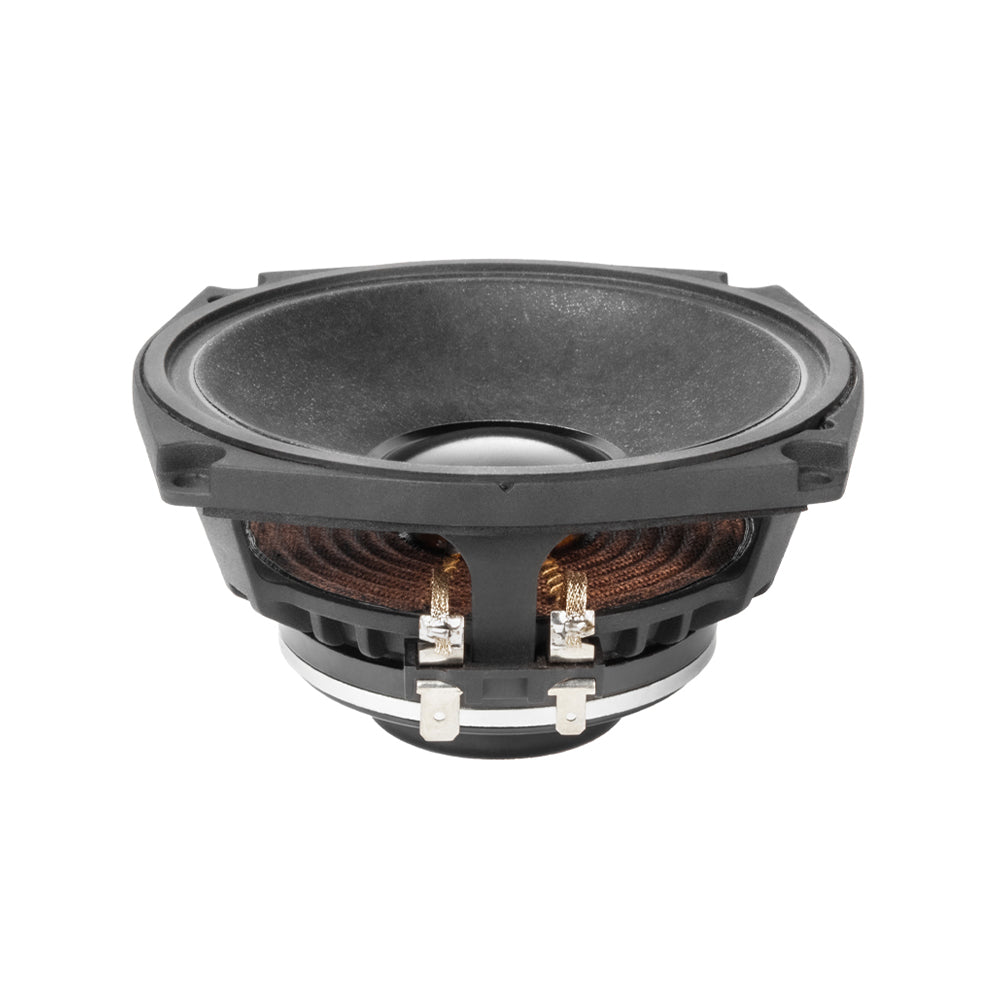

Faital Pro 5PR120 is a 5 inch cone driver with a 32 mm voice coil and a neodymium magnet. The listing gives 100 W AES power and 100 dB sensitivity on 8 ohm, covering 300 Hz to 5 kHz. The net weight is 0.82 kg. The published parameters make comparison with other drivers easy. Order it from VMT with GST billing and delivery across India.
Key features
- 5" cone driver with Neodymium magnet
- Voice coil 32 mm (1.26")
- 100 W AES power on 8 ohm
- Sensitivity 100 dB (1 W / 1 m)
- Frequency range 300 Hz - 5 kHz
- Net weight 0.82 kg
Specifications
| Woofer | 5" |
|---|
| Power (RMS) | 100 W |
|---|
| Frequency range | 300 Hz - 5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 100 dB (1 W / 1 m) |
|---|
| Voice coil | 32 mm (1.26") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 0.82 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
130 mm (5 in) |
| Overall Diameter |
150/128.2 mm (5.91/5.05 in) |
| Bolt Circle Diameter |
139 mm (5.47 in) |
| Baffle Cutout Diameter |
118 mm (4.65 in) |
| Depth |
69 mm (2.72 in) |
| Flange and Gasket Thickness |
9 mm (0.35 in) |
| Net Weight |
0.82 kg (1.8 lb) |
Shipping Box
(Single Carton Box) |
185 x 170 x 102 mm
(7.3 x 6.7 x 4.0 in) |
| Shipping Weight |
1.0 kg (2.2 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
5.9 Ohm |
| AES Power Handling (1)
|
100 W |
| Maximum Power Handling (2)
|
200 W |
| Sensitivity (1W/1m) |
100 dB |
| Frequency Range |
300÷5000 Hz |
| Voice Coil Diameter |
32 mm (1.26 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Winding Depth |
8.2 mm (0.32 in) |
| Magnetic Gap Depth |
6 mm (0.24 in) |
| Flux Density |
1.7 T |
| Magnet |
Neodymium Ring |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Raised planar |
| NET Air Volume filled by Loudspeaker |
0.18 dm^3 (0.006 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
100 Hz |
| Re |
5 Ohm |
| Qes |
0.28 |
| Qms |
8.0 |
| Qts |
0.27 |
| Vas |
4.2 dm^3 (0.15 ft^3) |
| Sd |
102.2 cm^2 (15.84 in^2) |
| Xmax (4)
|
3.10 mm |
| Xdamage (5)
|
5.25 mm |
| Mms |
8.5 g |
| Bl |
10 N/A |
| Le |
0.17 mH |
| Mmd |
7.3 g |
| Cms |
0.30 mm/N |
| Rms |
0.7 kg/s |
| Eta Zero |
1.58 % |
| EBP |
357 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
01304399 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) NBR (Rubber) |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
