Faital Pro 6PR130
Speaker Spares
Description

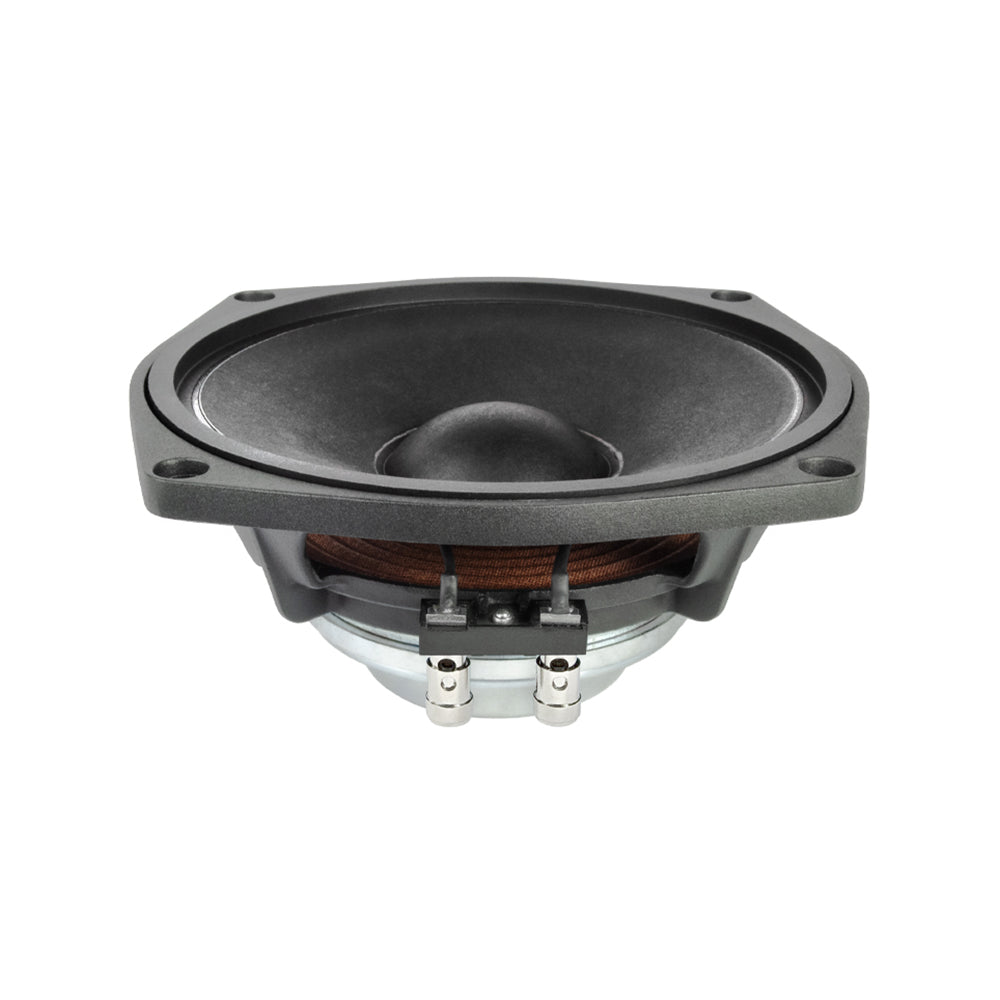

Faital Pro 6PR130 is a 6 inch cone driver with a 44 mm voice coil and a neodymium magnet. The listing gives 200 W AES power and 101 dB sensitivity on 8 ohm, covering 200 Hz to 5 kHz. The net weight is 0.82 kg. Useful for PA and monitor builds that need the listed bandwidth. Purchase through VMT with a GST invoice and delivery across India.
Key features
- 6" cone driver with Neodymium magnet
- Voice coil 44 mm (1.7")
- 200 W AES power on 8 ohm
- Sensitivity 101 dB (1 W / 1 m)
- Frequency range 200 Hz - 5 kHz
- Net weight 0.82 kg
Specifications
| Woofer | 6" |
|---|
| Power (RMS) | 200 W |
|---|
| Frequency range | 200 Hz - 5 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 101 dB (1 W / 1 m) |
|---|
| Voice coil | 44 mm (1.7") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 0.82 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
160 mm (6 in) |
| Overall Diameter |
186.5/162 mm (7.34/6.37 in) |
| Bolt Circle Diameter |
172 mm (6.77 in) |
| Baffle Cutout Diameter |
147 mm (5.79 in) |
| Depth |
74 mm (2.91 in) |
| Flange and Gasket Thickness |
9 mm (0.35 in) |
| Net Weight |
0.82 kg (1.8 lb) |
Shipping Box
(Single Carton Box) |
190 x 185 x 103 mm
(7.5 x 7.3 x 4.1 in) |
| Shipping Weight |
1.2 kg (2.6 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.2 Ohm |
| AES Power Handling (1)
|
200 W |
| Maximum Power Handling (2)
|
400 W |
| Sensitivity (1W/1m) |
101 dB |
| Frequency Range |
200÷5000 Hz |
| Voice Coil Diameter |
44 mm (1.7 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
11.2 mm (0.44 in) |
| Magnetic Gap Depth |
6 mm (0.24 in) |
| Flux Density |
1.7 T |
| Magnet |
Neodymium Ring |
| Basket Material |
Aluminum |
| Demodulation |
Aluminum Ring |
| Cone Surround (3)
|
Raised planar |
| NET Air Volume filled by Loudspeaker |
0.30 dm^3 (0.011 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
175 Hz |
| Re |
5.2 Ohm |
| Qes |
0.57 |
| Qms |
3.1 |
| Qts |
0.48 |
| Vas |
4.2 dm^3 (0.15 ft^3) |
| Sd |
147.95 cm^2 (22.93 in^2) |
| Xmax (4)
|
4.60 mm |
| Xdamage (5)
|
5.25 mm |
| Mms |
12.0 g |
| Bl |
11.4 N/A |
| Le |
0.17 mH |
| Mmd |
10.0 g |
| Cms |
0.07 mm/N |
| Rms |
4.3 kg/s |
| Eta Zero |
2.07 % |
| EBP |
307 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
01604435 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) NBR (Rubber) |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
