Faital Pro 8FE400
Ferrite
Description

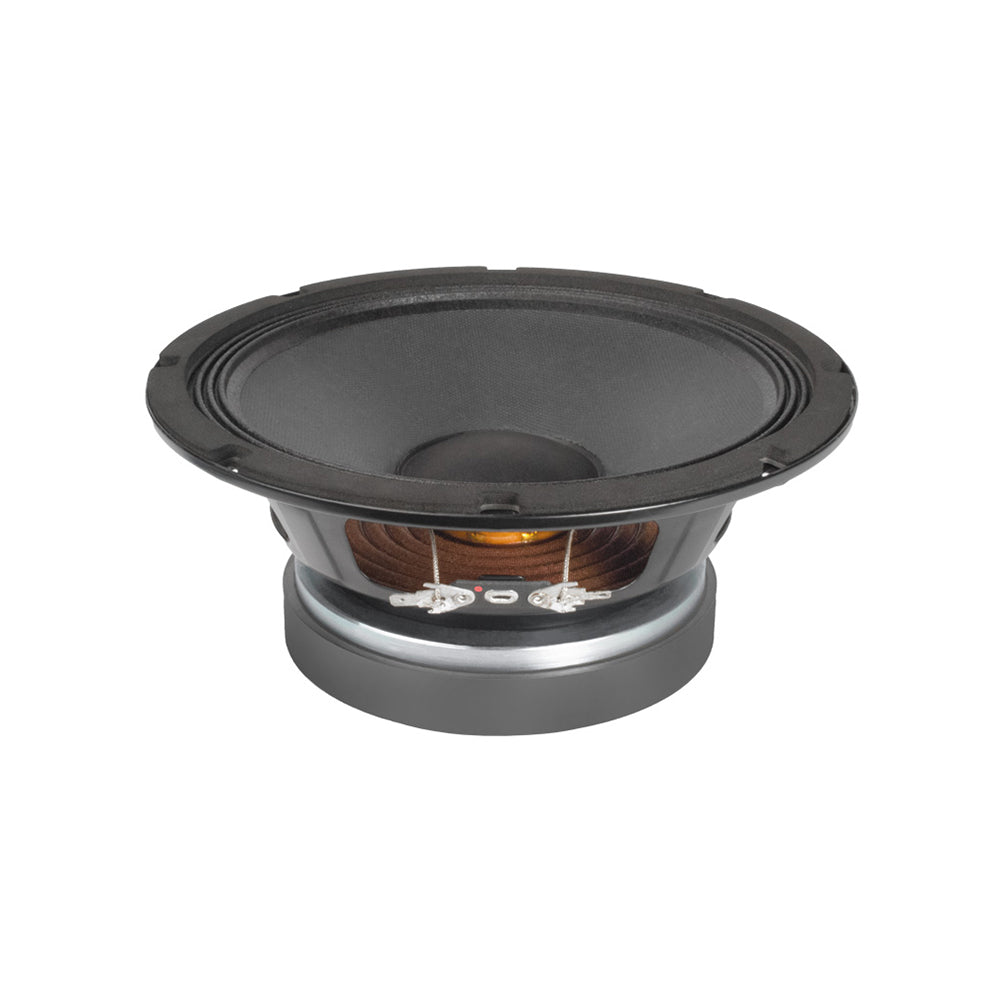

Faital Pro 8FE400 is an 8 inch cone driver with a 44 mm aluminium former voice coil and a ferrite ring magnet. Its AES power rating is 200 W, with 400 W maximum, and sensitivity is 96 dB. The listing gives an operating range of 100 Hz to 6 kHz. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 8 inch (200 mm) cone with 44 mm voice coil
- AES power 200 W, maximum 400 W
- Ferrite ring magnet, 8 mm magnetic gap depth
- Nominal 8 ohm, minimum 6.2 ohm
- Frequency range 100 Hz to 6000 Hz, Fs 100 Hz
Specifications
| Driver type | Woofer |
|---|
| Woofer | 8" |
|---|
| Power (RMS) | 200 W |
|---|
| Frequency range | 100 Hz - 6000 Hz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 96 dB (1 W / 1 m) |
|---|
| Voice coil | 44 mm |
|---|
| Magnet | Ferrite |
|---|
| Weight | 2.78 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
200 mm (8 in) |
| Overall Diameter |
209 mm (8.23 in) |
| Bolt Circle Diameter |
197 mm (7.76 in) |
| Baffle Cutout Diameter |
183 mm (7.20 in) |
| Depth |
96 mm (3.78 in) |
| Flange and Gasket Thickness |
7 mm (0.28 in) |
| Net Weight |
2.78 kg (6.1 lb) |
Shipping Box
(Single Carton Box) |
227 x 224 x 113 mm
(8.93 x 8.81 x 4.44 in) |
| Shipping Weight |
2.95 kg (6.5 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.2 Ohm |
| AES Power Handling (1)
|
200 W |
| Maximum Power Handling (2)
|
400 W |
| Sensitivity (1W/1m) |
96 dB |
| Frequency Range |
100÷6000 Hz |
| Voice Coil Diameter |
44 mm (1.73 in) |
| Winding Material |
Al |
| Former Material |
Al |
| Winding Depth |
12.2 mm (0.48 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
| Flux Density |
1.10 T |
| Magnet |
Ferrite Ring |
| Basket Material |
Steel |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
0.9 dm^3 (0.032 ft^3) |
| Spider Profile |
1x constant height waves |
|
Thiele and small parameters
| Fs |
100 Hz |
| Re |
5 Ohm |
| Qes |
0.58 |
| Qms |
5.3 |
| Qts |
0.53 |
| Vas |
9.4 dm^3 (0.33 ft^3) |
| Sd |
233 cm^2 (36.12 in^2) |
| Xmax (4)
|
4.77 mm |
| Xdamage (5)
|
15.5 mm |
| Mms |
20.5 g |
| Bl |
10.5 N/A |
| Le |
0.44 mH |
| Mmd |
16.5 g |
| Cms |
0.12 mm/N |
| Rms |
2.4 kg/s |
| Eta Zero |
1.56 % |
| EBP |
171 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
02004386 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
