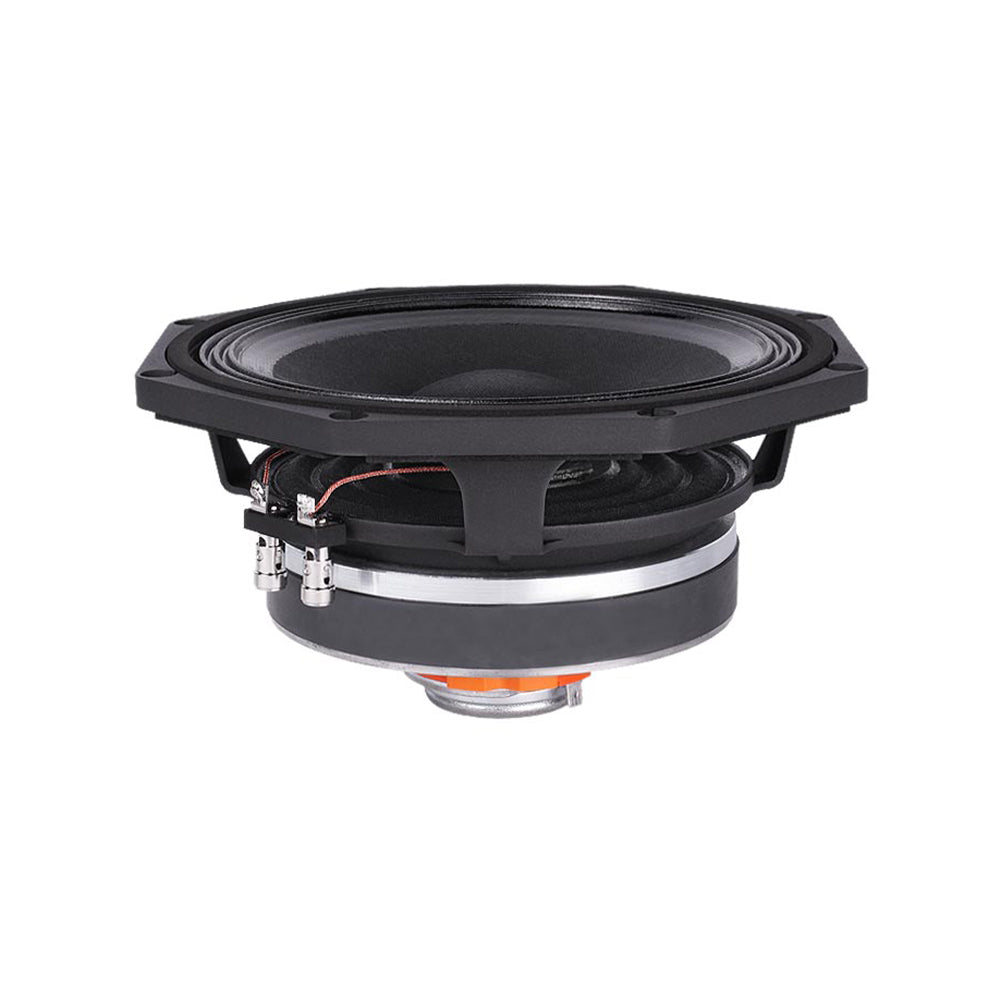

Faital Pro 8HX150
Ferrite
Description
Faital Pro 8HX150 is an 8 inch coaxial driver with a 25 mm high frequency voice coil. The low section is rated at 250 W AES over 75 Hz to 4 kHz, and the high section at 15 W AES over 1.5 kHz to 18 kHz. The listing gives 8 ohm nominal impedance on both sections. Available from VMT with a GST invoice and delivery across India.
Key features
- LF cone 8 inch, 65 mm voice coil, ferrite ring magnet
- HF section 25 mm voice coil, ketone polymer dome, 90 degree dispersion
- LF AES 250 W, maximum 500 W; HF AES 15 W, maximum 30 W
- Minimum crossover 1.7 kHz
- Net weight 3.6 kg
Specifications
| Driver type | Coaxial driver |
|---|
| Woofer | 8" |
|---|
| Frequency range | 75 Hz - 4000 Hz (LF), 1500 Hz - 18 kHz (HF) |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 94 dB LF / 104 dB HF (1 W / 1 m) |
|---|
| Voice coil | 65 mm LF / 25 mm HF |
|---|
| Magnet | Ferrite LF / Neodymium HF |
|---|
| Weight | 3.6 kg |
|---|
Manufacturer description
Nominal Specifications
| Nom. Diameter |
200 mm (8 in) |
| Overall Diameter |
223.75/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter |
210 mm (8.27 in) |
| Baffle Cutout Diameter |
183 mm (7.20 in) |
| Depth |
111.7 mm (4.40 in) |
| Flange and Gasket Thickness |
10.7 mm (0.42 in) |
| Net Weight |
3.6 kg (7.9 lb) |
Shipping Box
(Single Carton Box) |
227 x 224 x 132 mm
(8.9 x 8.8 x 5.2 in) |
| Shipping Weight |
4.3 kg (9.5 lb) |
| Technical Parameters |
{ LF } |
{ HF } |
| Nom. Impedance |
8 Ohm |
8 Ohm |
| Minimum Impedance |
6.6 Ohm |
6.3 Ohm |
| AES Power Handling (1)
|
250 W |
15 W |
| Max Power Handling (2)
|
500 W |
30 W |
| Sensitivity (1W/1m) (3)
|
94 dB |
104 dB |
| Frequency Range |
75÷4000 Hz |
1500÷18000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
25 mm (1 in) |
| Winding Material |
Al |
Al |
| Former Material |
Glass Fiber |
Kapton |
| Winding Depth |
12.5 mm (0.49 in) |
1.7 mm (0.07 in) |
| Magnetic Gap Depth |
8 mm (0.31 in) |
2 mm (0.08 in) |
| Flux Density |
1 T |
1.3 T |
| Min. Cross. Freq. (4)
|
- |
1.7 kHz |
| Dispersion Angle |
- |
90° |
| Diaphragm Material |
- |
Ketone Polymer |
| Diaphragm Shape |
- |
Dome |
| Magnet |
Ferrite Ring |
Neodymium Ring |
| Basket Material |
Aluminum |
- |
| Demodulation |
No |
- |
| Cone Surround (5)
|
Triple Roll |
- |
| NET Air Volume filled by Loudspeaker |
0.96 dm^3 (0.034 ft^3) |
- |
| Spider Profile |
1x constant height waves |
- |
|
Thiele and small parameters { LF }
| Fs |
76 Hz |
| Re [LF] |
5.5 Ohm |
| Re [HF] |
6 Ohm |
| Qes |
0.43 |
| Qms |
9.5 |
| Qts |
0.41 |
| Vas |
13.0 dm^3 (0.46 ft^3) |
| Sd |
217.2 cm^2 (33.67 in^2) |
| Xmax (6)
|
4.92 mm |
| Xdamage (7)
|
10.25 mm |
| Mms |
22.3 g |
| Bl |
11.6 N/A |
| Le |
0.51 mH |
| Mmd |
18.7 g |
| Cms |
0.20 mm/N |
| Rms |
1.1 kg/s |
| Eta Zero |
1.27 % |
| EBP |
177 Hz |
PART NUMBER (P/N)
| Push Terminals - 8 Ohm Version |
02004050 |
| Recone Kit LF - 8 Ohm Version |
R2004048 |
| Recone Kit HF - 8 Ohm Version |
R0254031 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) HF Sensitivity averaged within the frequency range |
|
(4) 12 dB/oct or higher slope high-pass filter |
|
(5) Treated Polycotton |
|
(6) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(7) Maximum excursion before permanent damage |
|
