Faital Pro 8PR320
Neodymium
Description

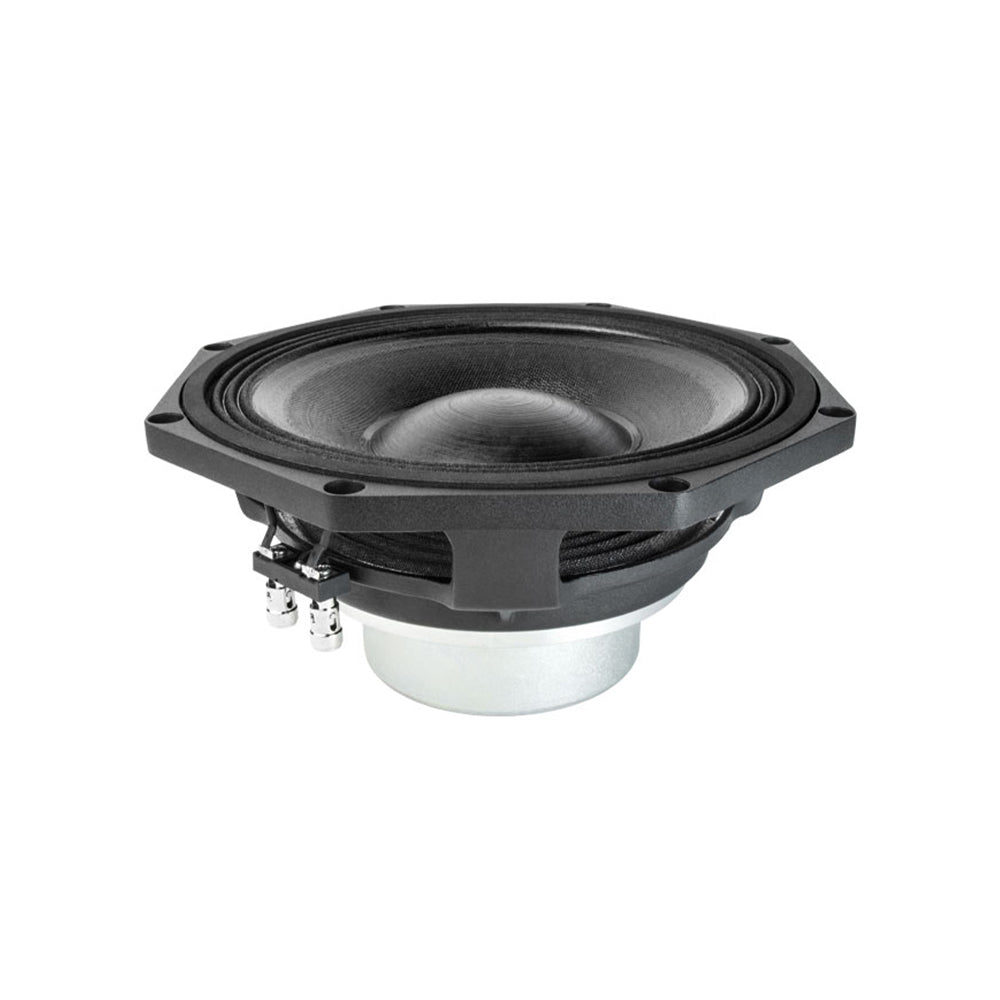

Faital Pro 8PR320 is a 8 inch cone driver with a 65 mm voice coil and a neodymium magnet. The listing gives 300 W AES power and 95 dB sensitivity on 8 ohm, covering 60 Hz to 4 kHz. The net weight is 2.45 kg. A practical choice for repairs and new cabinet builds. VMT ships it across India with a GST invoice.
Key features
- 8" cone driver with Neodymium magnet
- Voice coil 65 mm (2.56")
- 300 W AES power on 8 ohm
- Sensitivity 95 dB (1 W / 1 m)
- Frequency range 60 Hz - 4 kHz
- Net weight 2.45 kg
Specifications
| Woofer | 8" |
|---|
| Power (RMS) | 300 W |
|---|
| Frequency range | 60 Hz - 4 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 95 dB (1 W / 1 m) |
|---|
| Voice coil | 65 mm (2.56") |
|---|
| Magnet | Neodymium |
|---|
| Weight | 2.45 kg |
|---|
Manufacturer description
Nominal Specifications
| Nominal Diameter |
200 mm (8 in) |
| Overall Diameter |
223.7/207.9 mm (8.81/8.18 in) |
| Bolt Circle Diameter |
210 mm (8.27 in) |
| Baffle Cutout Diameter |
183 mm (7.20 in) |
| Depth |
99.5 mm (3.92 in) |
| Flange and Gasket Thickness |
11 mm (0.43 in) |
| Net Weight |
2.45 kg (5.4 lb) |
Shipping Box
(Single Carton Box) |
235 x 235 x 155 mm
(9.3 x 9.3 x 6.1 in) |
| Shipping Weight |
3.2 kg (7.1 lb) |
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.1 Ohm |
| AES Power Handling (1)
|
300 W |
| Maximum Power Handling (2)
|
600 W |
| Sensitivity (1W/1m) |
95 dB |
| Frequency Range |
60÷4000 Hz |
| Voice Coil Diameter |
65 mm (2.56 in) |
| Winding Material |
Al |
| Former Material |
Glass Fiber |
| Winding Depth |
17.4 mm (0.69 in) |
| Magnetic Gap Depth |
8.2 mm (0.32 in) |
| Flux Density |
1.2 T |
| Magnet |
Neodymium Slug |
| Basket Material |
Aluminum |
| Demodulation |
No |
| Cone Surround (3)
|
Triple Roll |
| NET Air Volume filled by Loudspeaker |
0.82 dm^3 (0.029 ft^3) |
| Spider Profile |
1x variable height waves |
|
Thiele and small parameters
| Fs |
65 Hz |
| Re |
5.4 Ohm |
| Qes |
0.43 |
| Qms |
8.2 |
| Qts |
0.41 |
| Vas |
13.1 dm^3 (0.46 ft^3) |
| Sd |
223 cm^2 (34.57 in^2) |
| Xmax (4)
|
7.33 mm |
| Xdamage (5)
|
16.85 mm |
| Mms |
31.7 g |
| Bl |
12.9 N/A |
| Le |
0.52 mH |
| Mmd |
27.9 g |
| Cms |
0.19 mm/N |
| Rms |
1.6 kg/s |
| Eta Zero |
0.83 % |
| EBP |
151 Hz |
PART NUMBER (P/N)
| Faston Terminals - 8 Ohm Version |
02004338 |
| Recone Kit - 8 Ohm Version |
R2004338 |
Notes:
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) Treated Polycotton |
|
(4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) |
|
(5) Maximum excursion before permanent damage |
|
