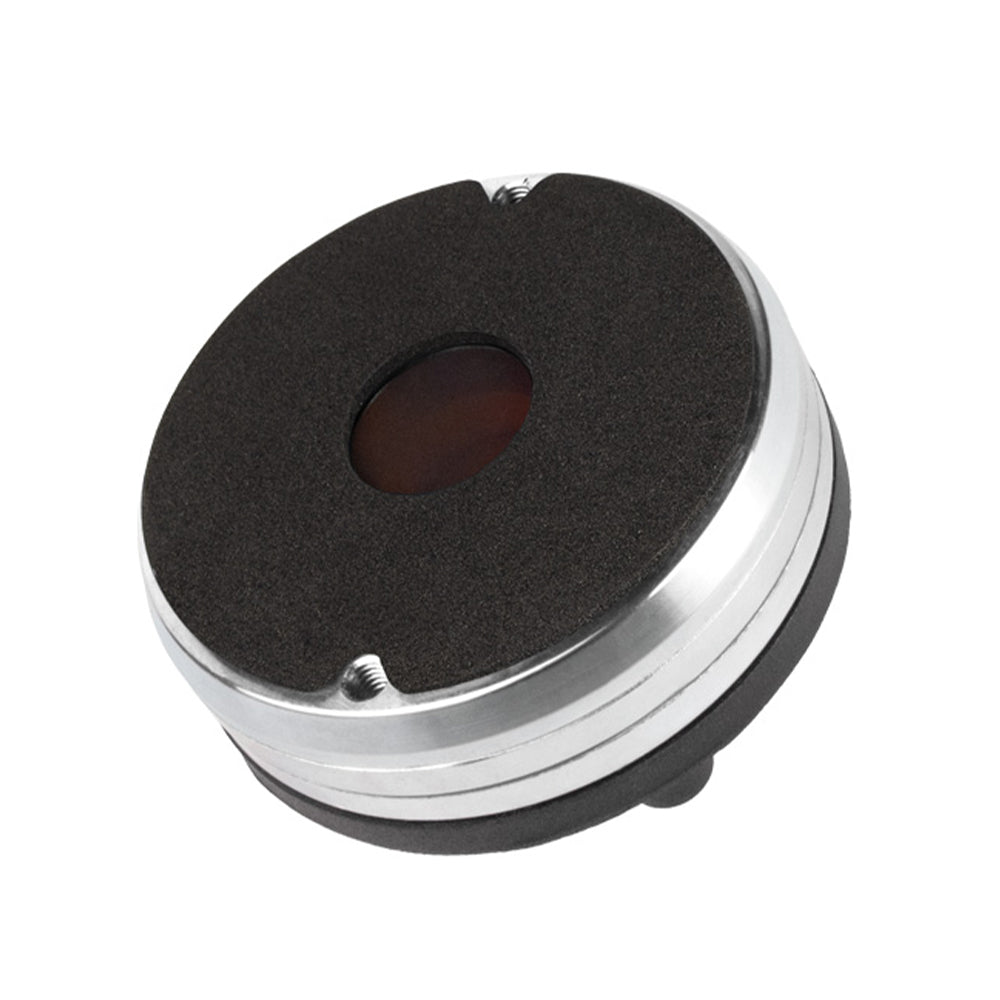

Faital Pro HF1000
Neodymium
Description
Faital Pro HF1000 is a 1 inch exit compression driver with a ketone polymer dome and a 52 mm voice coil. The listing gives 70 W AES, 8 ohm nominal impedance and 110 dB sensitivity. Its stated range is 1 kHz to 18 kHz, with a 1.3 kHz minimum crossover. Order from VMT with GST billing and delivery across India.
Key features
- 1 inch (25.4 mm) throat, ketone polymer dome
- AES power 70 W, maximum 140 W
- Neodymium ring magnet, 3.1 mm magnetic gap depth
- Nominal 8 ohm, minimum 6.8 ohm
- Net weight 985 g, cylindrical exit
Specifications
| Driver type | Compression driver |
|---|
| Power (RMS) | 70 W |
|---|
| Frequency range | 1 kHz - 18 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 110 dB (1 W / 1 m) |
|---|
| Voice coil | 52 mm |
|---|
| Magnet | Neodymium |
|---|
| Throat exit | 1" |
|---|
| Weight | 0.98 kg |
|---|
Manufacturer description
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.8 Ohm |
| AES Power Handling (1)
|
70 W |
| Maximum Power Handling (2)
|
140 W |
| Minimum Crossover Frequency (3)
|
1.3 kHz |
| Sensitivity (1W/1m) (4)
|
110 dB |
| Frequency Range |
1÷18 kHz |
| Voice Coil Diameter |
52 mm (2 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Ketone Polymer |
| Diaphragm Shape |
Dome |
| Winding Depth |
2.6 mm (0.10 in) |
| Magnetic Gap Depth |
3.1 mm (0.12 in) |
| Flux Density |
2.1 T |
| Magnet |
Neodymium Ring |
| Re |
5.5 Ohm |
| Phase Plug Design |
Annular |
| Exit Angle (5)
|
0° Cylindrical |
| NET Air Volume filled by HF Driver |
0.245 dm^3 (0.009 ft^3) |
|
Nominal Specifications
| Throat Diameter |
25.4 mm (1 in) |
| Overall Diameter |
90 mm (3.54 in) |
| 180° Mounting Holes Diameter (2xM5) |
76 mm (2.99 in) |
| Depth |
48.5 mm (1.91 in) |
| Net Weight |
985 g (2.2 lb) |
Shipping Box
(Single carton box) |
147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in) |
| Shipping Weight |
1.1 kg (2.4 lb) |
Part Number (P/N)
| Faston Terminals - 8 Ohm Version |
00524379 |
| Recone Kit - 8 Ohm Version |
R0524379 |
Notes:
| Driver mounted on a 1" 50° x 40° Horn
|
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) 12 dB/oct or higher slope high-pass filter |
|
(4) Averaged within the frequency range |
|
(5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn. |
|
