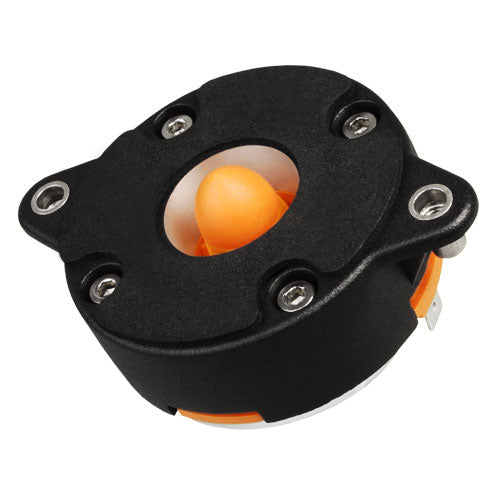

Faital Pro HF102
Neodymium
Description
Faital Pro HF102 is a 1 inch exit compression driver with a ketone polymer dome and a 25 mm voice coil. The listing gives 30 W AES, 8 ohm nominal impedance and 107 dB sensitivity. Its stated range is 1.8 kHz to 20 kHz, with a 2.6 kHz minimum crossover. Order from VMT with GST billing and delivery across India.
Key features
- 1 inch (25.4 mm) throat, radial phase plug
- AES power 30 W, maximum 60 W
- Neodymium ring magnet, 2 mm magnetic gap depth
- Nominal 8 ohm, minimum 6.6 ohm
- Net weight 300 g, exit angle 9 degrees
Specifications
| Driver type | Compression driver |
|---|
| Power (RMS) | 30 W |
|---|
| Frequency range | 1.8 kHz - 20 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 107 dB (1 W / 1 m) |
|---|
| Voice coil | 25 mm |
|---|
| Magnet | Neodymium |
|---|
| Throat exit | 1" |
|---|
| Weight | 0.3 kg |
|---|
Manufacturer description
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
6.6 Ohm |
| AES Power Handling (1)
|
30 W |
| Maximum Power Handling (2)
|
60 W |
| Minimum Crossover Frequency (3)
|
2.6 kHz |
| Sensitivity (1W/1m) (4)
|
107 dB |
| Frequency Range |
1.8÷20 kHz |
| Voice Coil Diameter |
25 mm (0.98 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Ketone Polymer |
| Diaphragm Shape |
Dome |
| Winding Depth |
1.7 mm (0.07 in) |
| Magnetic Gap Depth |
2 mm (0.08 in) |
| Flux Density |
1.3 T |
| Magnet |
Neodymium Ring |
| Re |
6 Ohm |
| Phase Plug Design |
Radial |
| Exit Angle (5)
|
9° Conical |
| NET Air Volume filled by HF Driver |
0.1 dm^3 (0.004 ft^3) |
|
Nominal Specifications
| Throat Diameter |
25.4 mm (1 in) |
| Overall Diameter |
91 mm (3.58 in) |
| 180° Mounting Holes Diameter (2xM6) |
76 mm (2.99 in) |
| Depth |
43 mm (1.69 in) |
| Net Weight |
300 g (0.7 lb) |
Shipping Box
(Single carton box) |
98 x 90 x 64 mm
(3.9 x 3.5 x 2.5 in) |
| Shipping Weight |
330 g (0.72 lb) |
Part Number (P/N)
| Faston Terminals - 8 Ohm Version |
00253937 |
| Recone Kit - 8 Ohm Version |
R0253937 |
Notes:
| Driver mounted on a 1" 50° x 40° Horn
|
| Ferrofluid added in air gap |
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) 12 dB/oct or higher slope high-pass filter |
|
(4) Averaged within the frequency range |
|
(5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn. |
|
