Faital Pro HF2000
Neodymium
Description

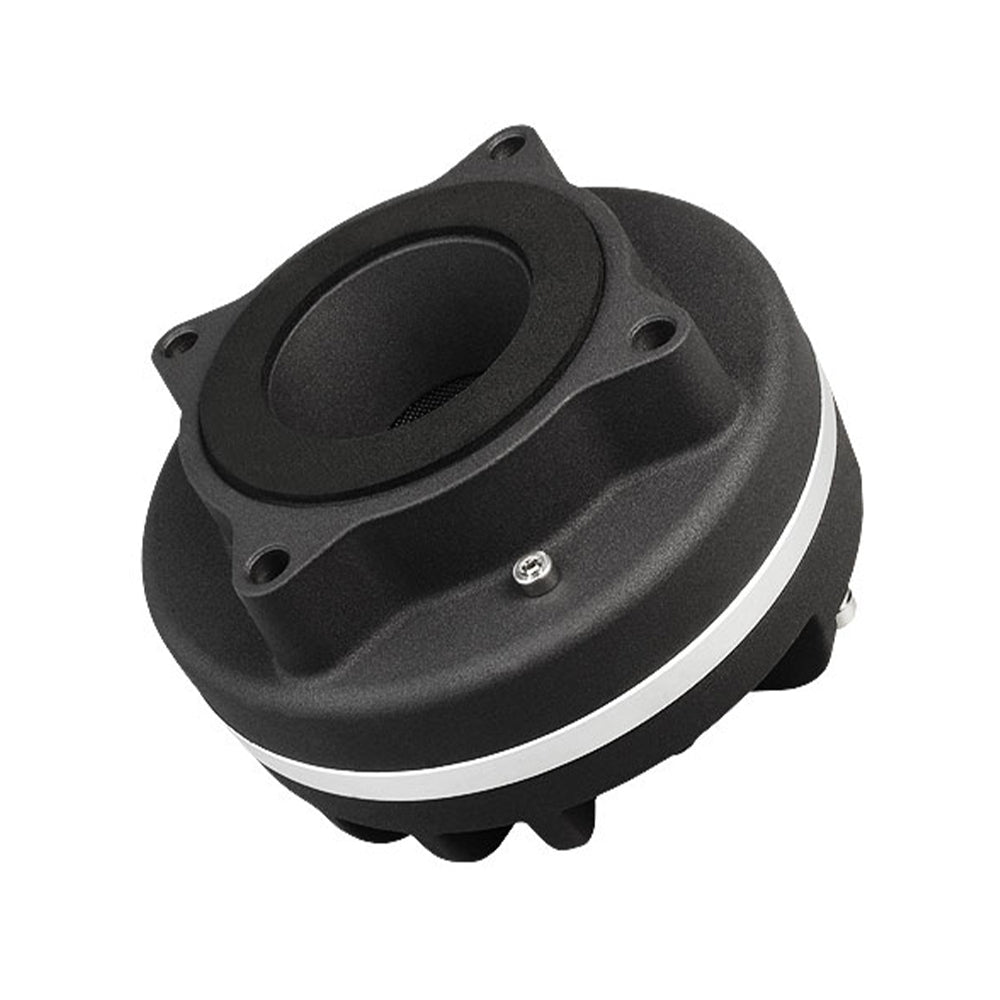

Faital Pro HF2000 is a 2 inch exit compression driver with a titanium dome diaphragm and a 74 mm voice coil. The listing gives 100 W AES above 0.9 kHz, 8 ohm nominal impedance and 110 dB sensitivity. Its stated range is 500 Hz to 18 kHz, and the listing shows it on a 2 inch 90 by 40 degree horn. Buy it at VMT with a GST invoice and delivery across India.
Key features
- 2 inch (50.8 mm) throat, titanium dome diaphragm
- AES power 100 W above 0.9 kHz, maximum 200 W
- Neodymium ring magnet, 3.2 mm magnetic gap depth
- Nominal 8 ohm, minimum 7 ohm
- Net weight 2.75 kg, recone kit R0743887 listed
Specifications
| Driver type | Compression driver |
|---|
| Power (RMS) | 100 W |
|---|
| Frequency range | 500 Hz - 18 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 110 dB (1 W / 1 m) |
|---|
| Voice coil | 74 mm |
|---|
| Magnet | Neodymium |
|---|
| Throat exit | 2" |
|---|
| Weight | 2.75 kg |
|---|
Manufacturer description
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
7 Ohm |
| AES Power above 0.9 kHz (1)
|
100 W |
| AES Power above 0.65 kHz |
50 W |
| Maximum Power above 0.9 kHz (2)
|
200 W |
| Maximum Power above 0.65 kHz |
100 W |
| Minimum Crossover Frequency (3)
|
0.9 kHz |
| Sensitivity (1W/1m) (4)
|
110 dB |
| Frequency Range |
0.5÷18 kHz |
| Voice Coil Diameter |
74 mm (2.91 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Titanium |
| Diaphragm Shape |
Dome |
| Winding Depth |
2.35 mm (0.09 in) |
| Magnetic Gap Depth |
3.2 mm (0.13 in) |
| Flux Density |
1.95 T |
| Magnet |
Neodymium Ring |
| Re |
5.6 Ohm |
| Phase Plug Design |
Annular |
| Exit Angle (5)
|
30° Conical |
| NET Air Volume filled by HF Driver |
0.6 dm^3 (0.021 ft^3) |
|
Nominal Specifications
| Throat Diameter |
50.8 mm (2 in) |
| Overall Diameter |
130.5 mm (5.14 in) |
| 90° Mounting Holes Diameter (4xM6) |
102 mm (4.02 in) |
| Depth |
83.5 mm (3.29 in) |
| Net Weight |
2.75 kg (6.1 lb) |
Shipping Box
(Single carton box) |
185 x 170 x 122 mm
(7.3 x 6.7 x 4.8 in) |
| Shipping Weight |
2.9 kg (6.4 lb) |
Part Number (P/N)
| Push Terminals - 8 Ohm Version |
00744218 |
| Recone Kit - 8 Ohm Version |
R0743887 |
Notes:
| Driver mounted on a 2” 90° x 40° Horn
|
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) 12 dB/oct or higher slope high-pass filter |
|
(4) Averaged within the frequency range |
|
(5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn. |
|
