Faital Pro HF201
Ferrite
Description

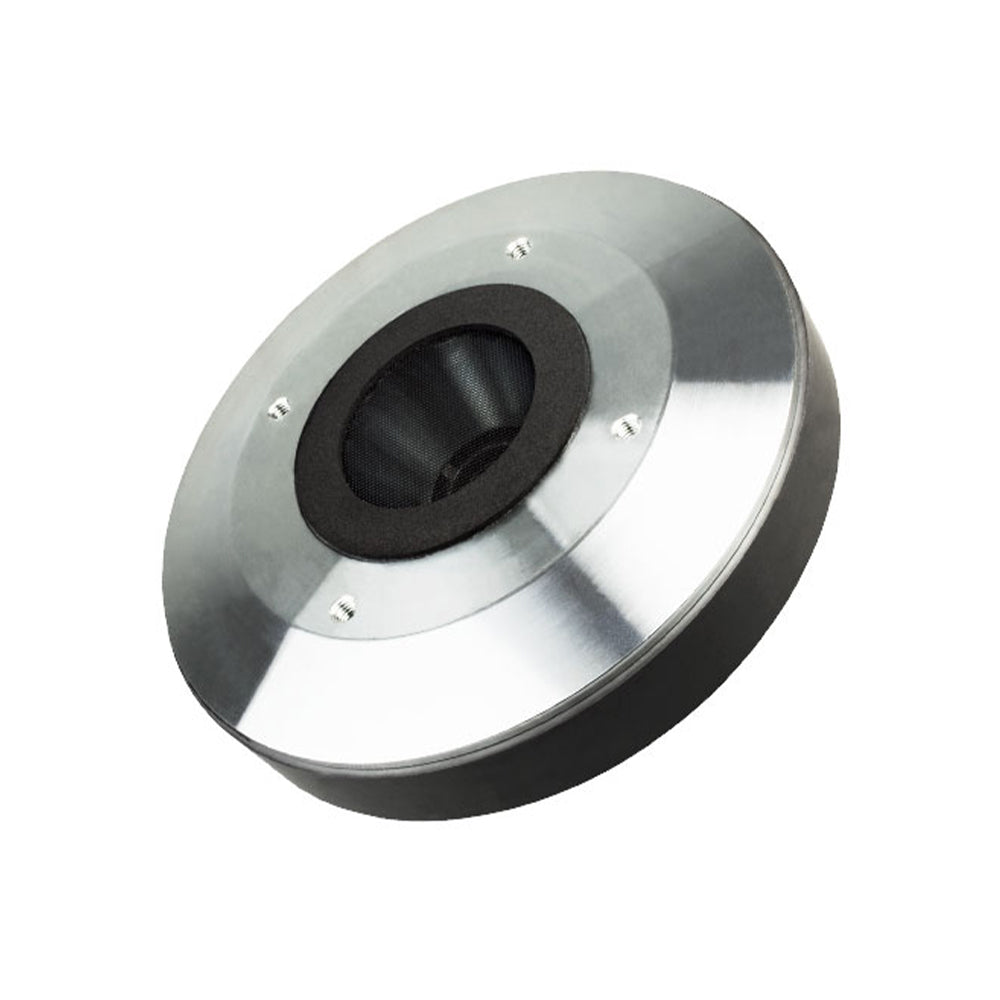

Faital Pro HF201 is a 2 inch exit compression driver with a titanium dome and a ferrite ring magnet. The listing gives 100 W AES above 0.9 kHz, 8 ohm nominal impedance and 108 dB sensitivity. Its stated range is 500 Hz to 18 kHz, with an overall diameter of 170 mm. Order from VMT with GST billing and delivery across India.
Key features
- 2 inch (50.8 mm) throat, titanium dome diaphragm
- AES power 100 W above 0.9 kHz, maximum 200 W
- Ferrite ring magnet, 3.2 mm magnetic gap depth
- Nominal 8 ohm, minimum 7.2 ohm
- Net weight 4.6 kg, exit angle 36 degrees
Specifications
| Driver type | Compression driver |
|---|
| Power (RMS) | 100 W |
|---|
| Frequency range | 500 Hz - 18 kHz |
|---|
| Impedance | 8 ohm |
|---|
| Sensitivity | 108 dB (1 W / 1 m) |
|---|
| Voice coil | 74 mm |
|---|
| Magnet | Ferrite |
|---|
| Throat exit | 2" |
|---|
| Weight | 4.6 kg |
|---|
Manufacturer description
Technical Parameters
| Nominal Impedance |
8 Ohm |
| Minimum Impedance |
7.2 Ohm |
| AES Power above 0.9 kHz (1)
|
100 W |
| AES Power above 0.65 kHz |
50 W |
| Maximum Power above 0.9 kHz (2)
|
200 W |
| Maximum Power above 0.65 kHz |
100 W |
| Minimum Crossover Frequency (3)
|
0.9 kHz |
| Sensitivity (1W/1m) (4)
|
108 dB |
| Frequency Range |
0.5÷18 kHz |
| Voice Coil Diameter |
74 mm (2.91 in) |
| Winding Material |
Al |
| Former Material |
Kapton |
| Diaphragm Material |
Titanium |
| Diaphragm Shape |
Dome |
| Winding Depth |
2.35 mm (0.09 in) |
| Magnetic Gap Depth |
3.2 mm (0.13 in) |
| Flux Density |
1.7 T |
| Magnet |
Ferrite Ring |
| Re |
5.6 Ohm |
| Phase Plug Design |
Annular |
| Exit Angle (5)
|
36° Conical |
| NET Air Volume filled by HF Driver |
1.05 dm^3 (0.037 ft^3) |
|
Nominal Specifications
| Throat Diameter |
50.8 mm (2 in) |
| Overall Diameter |
170 mm (6.69 in) |
| 90° Mounting Holes Diameter (4xM6) |
102 mm (4.02 in) |
| Depth |
66 mm (2.60 in) |
| Net Weight |
4.6 kg (10.2 lb) |
Shipping Box
(Single carton box) |
195 x 195 x 141 mm
(7.7 x 7.7 x 5.6 in) |
| Shipping Weight |
4.8 kg (10.6 lb) |
Part Number (P/N)
| Push Terminals - 8 Ohm Version |
00744169 |
| Recone Kit - 8 Ohm Version |
R0743887 |
Notes:
| Driver mounted on a 2” 90° x 40° Horn
|
|
(1) 2 Hours Test According to AES 2-1984 Rev. 2003 |
|
(2) Maximum power is defined as 3dB greater than nominal power. |
|
(3) 12 dB/oct or higher slope high-pass filter |
|
(4) Averaged within the frequency range |
|
(5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn. |
|
