Aria X2 Bridge
The single universe, indoor Aria X2 Bridge, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.
FEATURES
EMPOWER YOUR LIGHTING EXPERIENCE TO A NEW DIMENSION
Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show.
Frequency Agility:
Aria modules boast the capability to transmit and receive signals on standard 802.15.4 channels, both in the 2.4GHz and 915MHz (U.S) or 2.4GHz, 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums, ensuring network reliability.
Bluetooth Low Energy (BLE) Configuration:
Aria simplifies device setup with BLE, enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments, opening doors to creative control possibilities.
OTA Updates:
Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus. A cloud repository stores these updates, and the service app efficiently retrieves them, with future multi-hop DMX support enabling mesh network updates.
Wireless Mesh Excellence:
Aria’s robust foundation lies in its Wireless Mesh technology, featuring a versatile multi-hop DMX protocol. It adapts to various settings and use
cases, with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics, ensuring low latency and reduced collisions
(available: TBA).
Frequency Hopping:
Aria modules will implement a frequency hopping scheme, enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization, providing a seamless and efficient lighting experience (available: TBA).
Features:
Single DMX Universe
900Mhz., 2.4 GHz WiFi and Bluetooth
Configuration via App (Coming Soon) or Front panel
Wireless to DMX or DMX to Wireless
Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
Supported Protocols:
DMX
RDM (Planned for future software release)
Proprietary 802.15.4
Aria X2 Mesh Protocol (Planned for future software release)
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
This is our proprietary serial protocol for communicating with a variety of fixtures.
RF Characteristics:
Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz (US)
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates
Standards:
Health
EN IEC 62311:2020
EN50665:2017
BS EN IEC 62311:2020
BS EN 50665:2017
Safety
EN IEC 62368-1: 2020+A11:2020
BS EN IEC 62368-1: 2020+A11:2020
EMC
ETSI EN 301 489-1 V2.2.3 (2019-11)
ETSI EN 301 489-3 V2.3.2 (2023-01)
ETSI EN 301 489-17 V3.2.4 (2020-09)
EN 55032:2015/A1:2020
EN 55035:2017/A11:2020
EN 61000-3-3:2013/A2:2021
EN IEC 61000-3-2:2019/A1:2021
BS EN 55032:2015/A1:2020
BS EN 55035:2017/A11:2020
BS EN 61000-3-3:2013/A2:2021
BS EN IEC 61000-3-2:2019/A1:2021
Radio
EN 300 220-1 V 3.1.1 (2017-02)
EN 300 220-2 V 3.2.1 (2018-06)
ETSI EN 300 328 V2.2.2 (2019-07)

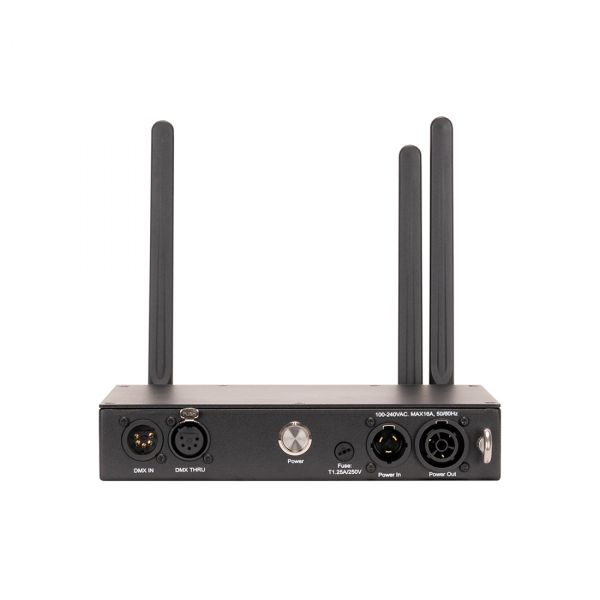

Connectors:
Antenna: 5G JT SMA
DMX: 5-pin XLR Input and Output
DC: 2.5mm/5.5mm Barrel connector
Outdoor Locking Power Input and Output
Power:
AC100-240V 50/60Hz
Power Consumption: 2W
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical:
IP20 Aluminum / Metal enclosure

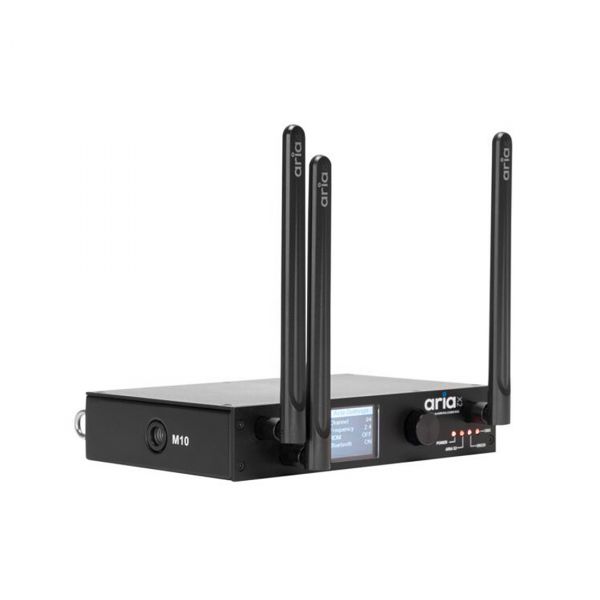

Front panel digital screen and rotary knob

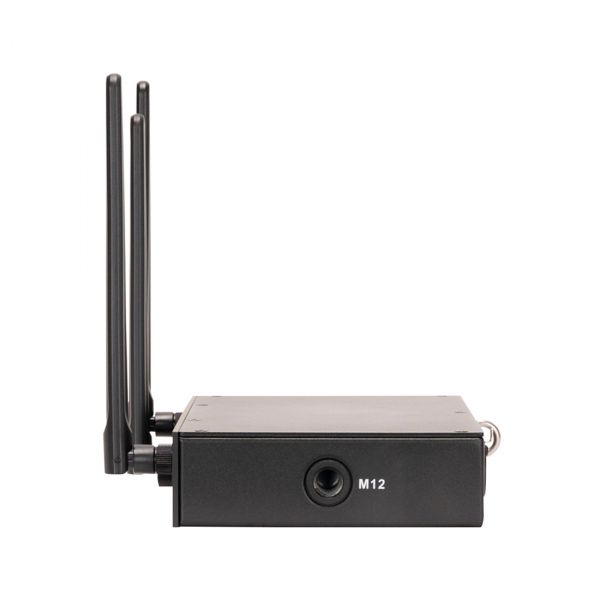

M10 and M12 Threads
Safety Eyelet
Max ambient operating temp: 113°F (45°C)
Max operating humidity: <75%
Storage temperature: 77°F (25°C)
Rack and wall mount accessories
Dimensions and Weight:
Length: 163.95mm (6.46")
Width: 215.30mm (8.48")
Height: 42mm (1.66")
1.23kgs (2.7lbs)
