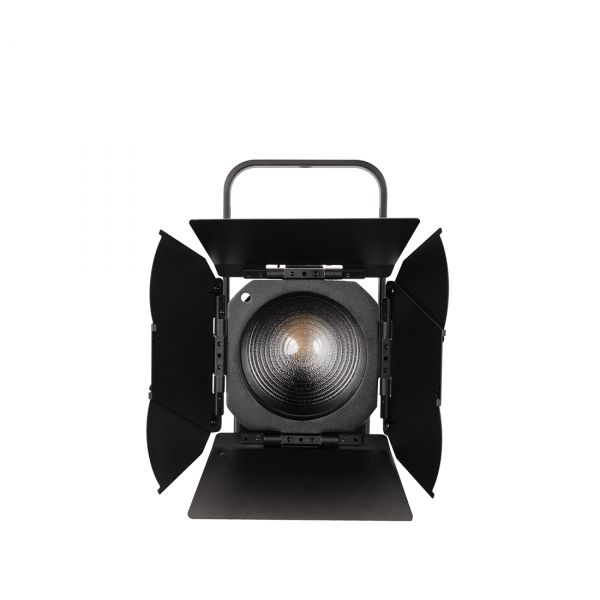

KL FRESNEL 4 FC
- Category: ., All collection for the Instock, Fees products, Lighting, Products, Static Lights, Theatre Lights
FEATURES
80W RGBMA LED Engine
ColourTune Technology Software Integration
2226 Total Fixture Lumen Output (Sphere)
10° to 45° Wide Manual Zoom
Stand-Alone control with Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
8-leaf Barn Doors and Gel Frame Included
SOURCE
80W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
2226 (Integrating Sphere)
2174 (Goniometer)
CRI 94.2
TLCI 87
Zoom Range 10° - 45°
Beam Angle 11° - 47.6°
Field Angle 21.5° - 72.8°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
High Brightness and High Fidelity Output Options

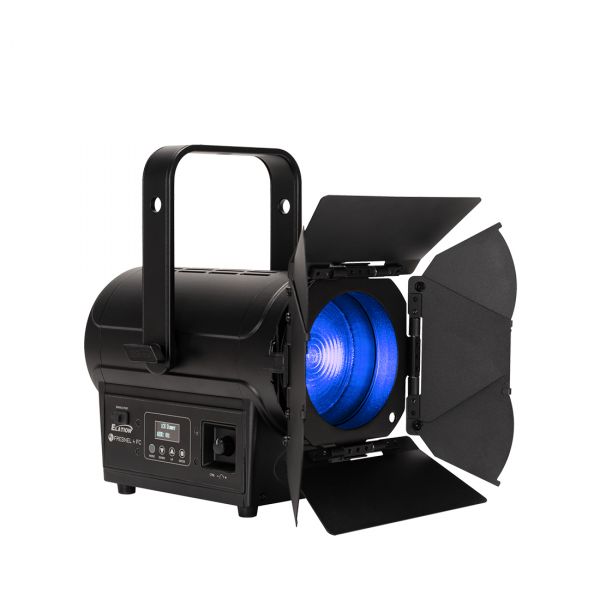

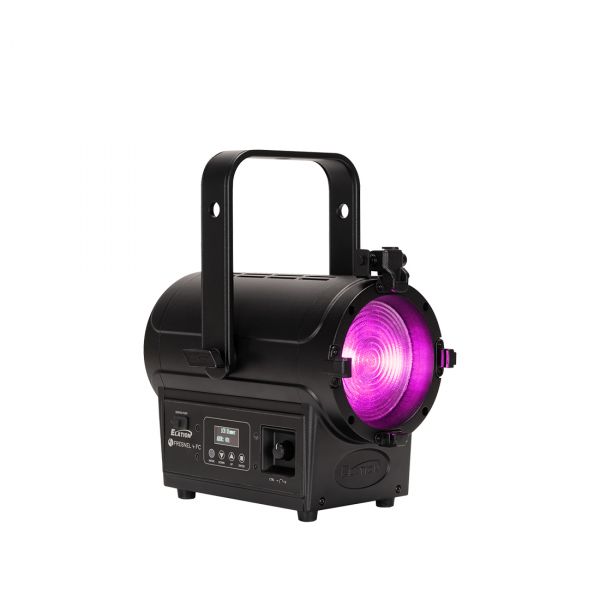

RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
9 DMX Channel Modes (1, 2, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer, Color
Direct Access Encoder

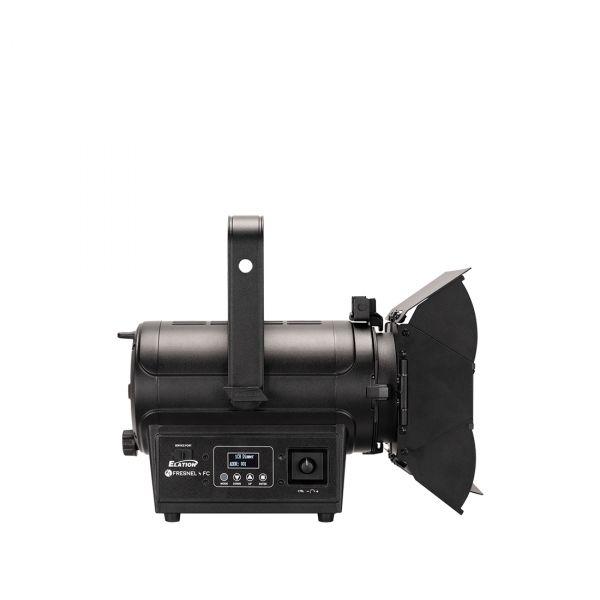

4 Button Control Panel, LED Display
RDM (Remote Device Management)

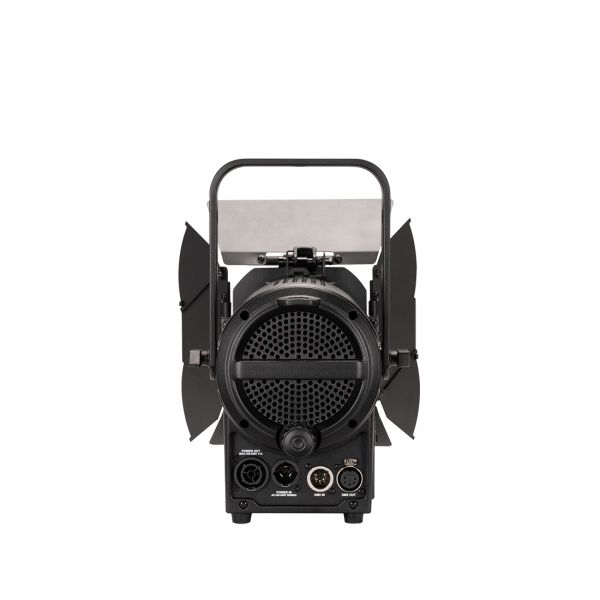

3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length: 190mm (7.5”)
Width: 312.8mm (12.3”)
Vertical Height: 223mm (8.8”)
Weight: 3.71 kg (8.2 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
85W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Thru Capacity: 11A ( 14 units @110V; 31 units @240V)
BTU/hr (+/- 10%) 289.85
INCLUDED ITEMS
Gel Frame
8-leaf Barn Doors
IP65 Locking Power Cable
FEATURES
80W RGBMA LED Engine
ColourTune Technology Software Integration
2226 Total Fixture Lumen Output (Sphere)
10° to 45° Wide Manual Zoom
Stand-Alone control with Encoder and LED Display
Smooth 16-bit Selectable Dimming Modes and Curves
LED Refresh Rate Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)
8-leaf Barn Doors and Gel Frame Included
SOURCE
80W 6000K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
Total Lumen Output:
2226 (Integrating Sphere)
2174 (Goniometer)
CRI 94.2
TLCI 87
Zoom Range 10° - 45°
Beam Angle 11° - 47.6°
Field Angle 21.5° - 72.8°
EFFECTS
Manual Zoom
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves
COLOR
High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
9 DMX Channel Modes (1, 2, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer, Color
Direct Access Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power In/Out Connection
SIZE / WEIGHT
Length: 190mm (7.5”)
Width: 312.8mm (12.3”)
Vertical Height: 223mm (8.8”)
Weight: 3.71 kg (8.2 lbs.)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
85W Max Power Consumption
-15°C to 45°C (5°F to 113°F)
Power Thru Capacity: 11A ( 14 units @110V; 31 units @240V)
BTU/hr (+/- 10%) 289.85
INCLUDED ITEMS
Gel Frame
8-leaf Barn Doors
IP65 Locking Power Cable
